WAC-510 VLAN to SSID Association on CIsco RV325

I had been using Cisco APs until I found that a lot of them have a throughput problem. WAC-510 has better throughput and clustering works well for me. Only trouble I've had with it is getting different SSIDs associated with VLAN ID numbers on the Cisco router.



Here is the configuration:



Cisco RV325 Router

VLAN 1 - Default

VLAN 25 - Guest

VLAN 100 - Voice
VLAN 5 - Windows

VLAN 6 - Linux



WAC-510 Access Point

SSID 1 (Windows) --> VLAN 5

SSID 2 (Linux) --> VLAN 6



AP LAN Config

DHCP

Untagged VLAN 1

Management VLAN 1



Under that setup, the Windows SSID has Internet but the Linux SSID has no Internet. When I swap the WAC-510 with a Cisco AP, the different SSIDs both have Internet.



If I set the AP LAN config to static IP and uncheck the 8021.Q option (Untagged VLAN), then I become unable to reach the AP Login page on the static IP. Then I end up having to reset the AP to default setting.

  • WAC5xx (WAC510, 505, 540...) all support VLAN<-->SSID mapping.

    Most of the time, when we debug clients not getting DHCP. it  will normally be due to some conf error upstream.



    Coming to your network :

    Router==TrunkPort(1,25,100,5,6)====Switch====TrunkPort(1,5,6) === AP ~~~SSID1-VLAN5~~~ Client



    Can you check if the DHCP request packets are reaching your router

    You can capture packets on the AP, download it to your PC and check the VLAN mapping of DHCP packets.

    sameway you can port mirror switch/router and check on that too.



    We need to see, if your router did get a DHCP request packet from client and responded. the switch has to tag the response back and send it to AP. then AP will be able deliver it back to the right client on the right SSID.



    other basic things:

    make sure WAC510 is connected to WAN/PoE ports.

    WAC510 is in AP mode.



    Cisco RV325 Router

    VLAN 1 - Default

    VLAN 25 - Guest

    VLAN 100 - Voice
    VLAN 5 - Windows

    VLAN 6 - Linux



    WAC-510 Access Point

    SSID 1 (Windows) --> VLAN 5

    SSID 2 (Linux) --> VLAN 6



    AP LAN Config

    DHCP

    Untagged VLAN 1

    Management VLAN 1



10 Replies

Replies have been turned off for this discussion
  • schumaku's avatar
    schumaku
    Guru - Experienced User

    Assuming all the VLANs are 802.1Q and taged - except of the default VLAN - the WAC510 config looks OK to me.




    Vectro wrote:

    If I set the AP LAN config to static IP and uncheck the 8021.Q option (Untagged VLAN), then I become unable to reach the AP Login page on the static IP. Then I end up having to reset the AP to default setting.


    This will re-configure the management VLAN ID for no longer accepting untagged frames and sending tagged frames. Have the default VLAN ID 1 set here?



    When I have it right, the RV325 does run the default VLAN 1 untagged - that's why you loose the management access.

    • Vectro's avatar
      Vectro
      Aspirant

      schumaku wrote:

      Assuming all the VLANs are 802.1Q and taged - except of the default VLAN - the WAC510 config looks OK to me.




      Vectro wrote:

      If I set the AP LAN config to static IP and uncheck the 8021.Q option (Untagged VLAN), then I become unable to reach the AP Login page on the static IP. Then I end up having to reset the AP to default setting.


      This will re-configure the management VLAN ID for no longer accepting untagged frames and sending tagged frames. Have the default VLAN ID 1 set here?



      When I have it right, the RV325 does run the default VLAN 1 untagged - that's why you loose the management access.

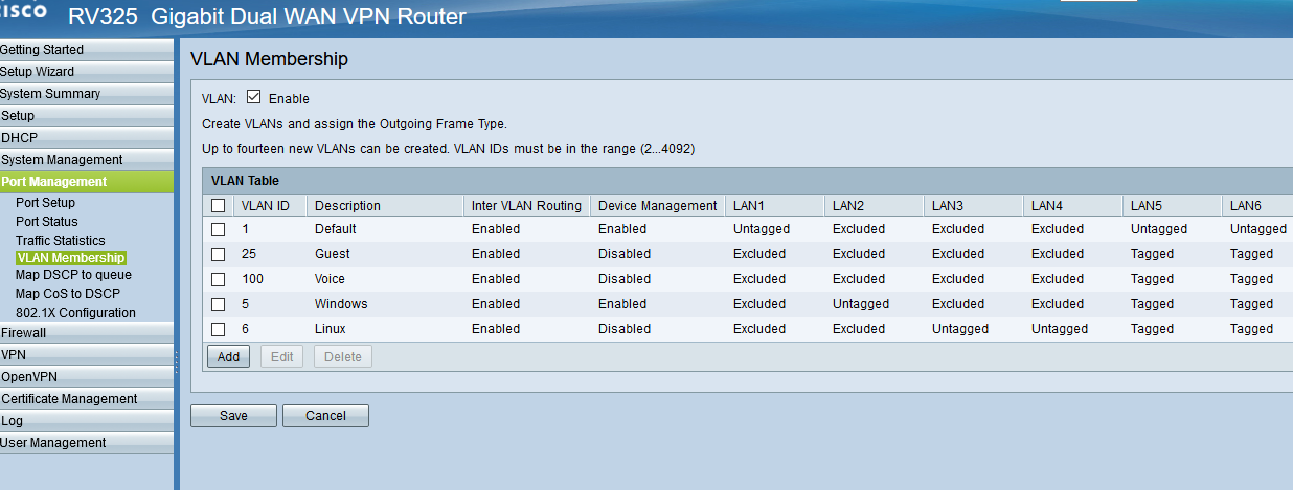

      To your first point, yes, all of the VLANs are tagged except the default. I've also included a screenshot of the VLAN configuration. The WAC510 is plugged into LAN 5. Still, the SSID with VLAN 6 (Linux) has no Internet.



      To your second point, do the AP LAN settings affect the Wi-Fi tagging, or is this part just for management?

      • schumaku's avatar
        schumaku
        Guru - Experienced User

        Vectro wrote:

        To your second point, do the AP LAN settings affect the Wi-Fi tagging, or is this part just for management?


        That's just for the explicitly listed management VLAN. The SSID<->VLAN association does make use of tagging regardless of that setting.
