Fiber connection (1gbit up/down) -> Cat6 -> 963 router -> Cat6 & Cat7 cables to 2 PC's using the 2.5gbit LAN + LAN 2 Satellites working just fine, solid 6-700mbit up/down with no issues what so ever.Wired connection throttles / stalls at 250mbit down and 4-500mbit up both regardless of which LAN port or cable I use. Tried all variations. Sometimes it's also the other way around. Just hit 350 down and only 150 up so it's far from consistent. (No other devices connected during tests). Connecting either PC (win 10- no option to upgrade to win11) directly to fiber modem provides expected 1gbit speeds up/down - regardless of the three cables I've tried.Tried with and without satellites connected, tried factory reset and a number of firmware versions. Running speedtest directly from router GUI provides the 1gbit down/up - so there's good speeds coming TO the router at least... This tells me it can't be NIC settings or cables. I'm running out of options here...Hoping for something else to try, or should I just give up and open a ticket ...? Thanks!

As long as you are enjoying this novel experience, there is one more goofy experiment: Load up iPerf3 on both PCs. https://iperf.fr/iperf-download.php Open iPerf3 on one PC as a server and the other PC as a client and run a test. When I do this on my ancient RBR50, iPerf3 consistently reports about 940MB/s, which is the maximum possible on 1G Ethernet: Connecting to host 192.168.1.3, port 5201 [ 5] local 192.168.1.2 port 60530 connected to 192.168.1.3 port 5201 [ ID] Interval Transfer Bitrate [ 5] 0.00-1.00 sec 113 MBytes 950 Mbits/sec [ 5] 1.00-2.00 sec 113 MBytes 949 Mbits/sec [ 5] 2.00-3.00 sec 113 MBytes 949 Mbits/sec [ 5] 3.00-4.00 sec 105 MBytes 882 Mbits/sec [ 5] 4.00-5.00 sec 113 MBytes 949 Mbits/sec [ 5] 5.00-6.00 sec 113 MBytes 949 Mbits/sec [ 5] 6.00-7.00 sec 113 MBytes 949 Mbits/sec [ 5] 7.00-8.00 sec 113 MBytes 949 Mbits/sec [ 5] 8.00-9.00 sec 113 MBytes 948 Mbits/sec [ 5] 9.00-10.00 sec 113 MBytes 948 Mbits/sec - - - - - - - - - - - - - - - - - - - - - - - - - [ ID] Interval Transfer Bitrate [ 5] 0.00-10.00 sec 1.10 GBytes 942 Mbits/sec sender [ 5] 0.00-10.00 sec 1.10 GBytes 942 Mbits/sec receiver iperf Done. If two PCs connected to the 960 Ethernet ports do not perform in a similar manner, I would be very disappointed.

Is it both the 2.5G and 1G Ethernet ports that do this? Have you tried using two 1G ports and leaving the 2.5G port unused? As long as the router is running the current firmware, v6.3.7.5, looks like a call to Netgear support is in order. (If it is not on the latest firmware, they'll just tell you to update firmware, which will cost you time.)

What is the Mfr and model# of the Internet Service Providers ONT the NG router is connected too? Has Armor or any SPC been enabled by chance on the RBR? changelingo wrote: Fiber connection (1gbit up/down) -> Cat6 -> 963 router -> Cat6 & Cat7 cables to 2 PC's using the 2.5gbit LAN + LAN 2 Satellites working just fine, solid 6-700mbit up/down with no issues what so ever. Wired connection throttles / stalls at 250mbit down and 4-500mbit up both regardless of which LAN port or cable I use. Tried all variations. Sometimes it's also the other way around. Just hit 350 down and only 150 up so it's far from consistent. (No other devices connected during tests). Connecting either PC (win 10- no option to upgrade to win11) directly to fiber modem provides expected 1gbit speeds up/down - regardless of the three cables I've tried. Tried with and without satellites connected, tried factory reset and a number of firmware versions. Running speedtest directly from router GUI provides the 1gbit down/up - so there's good speeds coming TO the router at least... This tells me it can't be NIC settings or cables. I'm running out of options here... Hoping for something else to try, or should I just give up and open a ticket ...? Thanks!

Thanks, I've tried to run wired connections in isolation + combination from all available ports.No difference unfortunately 😕

Hi, Very interesting test indeed. Check this out. This is consistent with the speeds I'm getting on fast.com + Speedtest (app and web, same results)Using this argument:iperf/iperf3 -c remotehost -i 1 -t 20 -rRun a test from remotehost to localhost Then I ran iPerf3 with a different argumentiperf/iperf3 -c remotehost -i 1 -t 20 -w 32M -P 4Run a test with 4 parallel streams, and with a 32M TCP buffer... and got better results: Not sure what conclusions to draw, or where to go from here?

Orbi RBKE 963B - slow wired connection - running out of ideas.

19 Replies

CrimpOn
Guru - Experienced User
Nov 23, 2022
Is it both the 2.5G and 1G Ethernet ports that do this?

Have you tried using two 1G ports and leaving the 2.5G port unused?

As long as the router is running the current firmware, v6.3.7.5, looks like a call to Netgear support is in order.

(If it is not on the latest firmware, they'll just tell you to update firmware, which will cost you time.)
- CrimpOn
  Guru - Experienced User
  Nov 23, 2022
  As long as you are enjoying this novel experience, there is one more goofy experiment:

  Load up iPerf3 on both PCs. https://iperf.fr/iperf-download.php

  Open iPerf3 on one PC as a server and the other PC as a client and run a test.

  When I do this on my ancient RBR50, iPerf3 consistently reports about 940MB/s, which is the maximum possible on 1G Ethernet:

  Connecting to host 192.168.1.3, port 5201 [ 5] local 192.168.1.2 port 60530 connected to 192.168.1.3 port 5201 [ ID] Interval Transfer Bitrate [ 5] 0.00-1.00 sec 113 MBytes 950 Mbits/sec [ 5] 1.00-2.00 sec 113 MBytes 949 Mbits/sec [ 5] 2.00-3.00 sec 113 MBytes 949 Mbits/sec [ 5] 3.00-4.00 sec 105 MBytes 882 Mbits/sec [ 5] 4.00-5.00 sec 113 MBytes 949 Mbits/sec [ 5] 5.00-6.00 sec 113 MBytes 949 Mbits/sec [ 5] 6.00-7.00 sec 113 MBytes 949 Mbits/sec [ 5] 7.00-8.00 sec 113 MBytes 949 Mbits/sec [ 5] 8.00-9.00 sec 113 MBytes 948 Mbits/sec [ 5] 9.00-10.00 sec 113 MBytes 948 Mbits/sec - - - - - - - - - - - - - - - - - - - - - - - - - [ ID] Interval Transfer Bitrate [ 5] 0.00-10.00 sec 1.10 GBytes 942 Mbits/sec sender [ 5] 0.00-10.00 sec 1.10 GBytes 942 Mbits/sec receiver iperf Done.

  If two PCs connected to the 960 Ethernet ports do not perform in a similar manner, I would be very disappointed.
  - changelingo
    Aspirant
    Nov 23, 2022
    Hi,

    Very interesting test indeed.

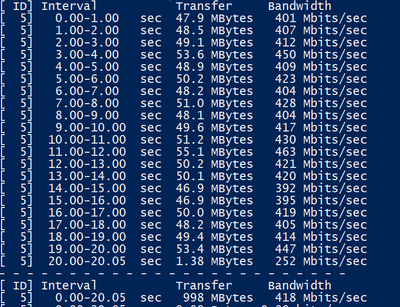

    Check this out. This is consistent with the speeds I'm getting on fast.com + Speedtest (app and web, same results)
    Using this argument:
    iperf/iperf3 -c remotehost -i 1 -t 20 -r Run a test from remotehost to localhost

    Then I ran iPerf3 with a different argument
    iperf/iperf3 -c remotehost -i 1 -t 20 -w 32M -P 4 Run a test with 4 parallel streams, and with a 32M TCP buffer

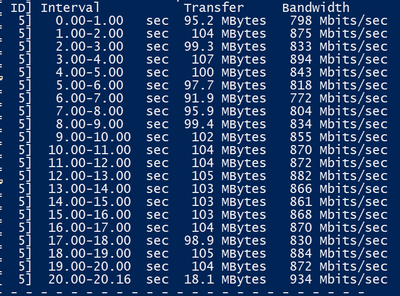

    ... and got better results:

    Not sure what conclusions to draw, or where to go from here?
- changelingo
  Aspirant
  Nov 23, 2022
  Thanks, I've tried to run wired connections in isolation + combination from all available ports.
  No difference unfortunately 😕
FURRYe38
Guru - Experienced User
Nov 23, 2022
What is the Mfr and model# of the Internet Service Providers ONT the NG router is connected too?

Has Armor or any SPC been enabled by chance on the RBR?

changelingo wrote:

Fiber connection (1gbit up/down) -> Cat6 -> 963 router -> Cat6 & Cat7 cables to 2 PC's using the 2.5gbit LAN + LAN 2

Satellites working just fine, solid 6-700mbit up/down with no issues what so ever.

Wired connection throttles / stalls at 250mbit down and 4-500mbit up both regardless of which LAN port or cable I use. Tried all variations. Sometimes it's also the other way around. Just hit 350 down and only 150 up so it's far from consistent. (No other devices connected during tests).

Connecting either PC (win 10- no option to upgrade to win11) directly to fiber modem provides expected 1gbit speeds up/down - regardless of the three cables I've tried.

Tried with and without satellites connected, tried factory reset and a number of firmware versions.

Running speedtest directly from router GUI provides the 1gbit down/up - so there's good speeds coming TO the router at least...

This tells me it can't be NIC settings or cables. I'm running out of options here...

Hoping for something else to try, or should I just give up and open a ticket ...?

Thanks!
