Forum Discussion
RBR850 Wired Backhaul keeps switching from Wired to Wireless

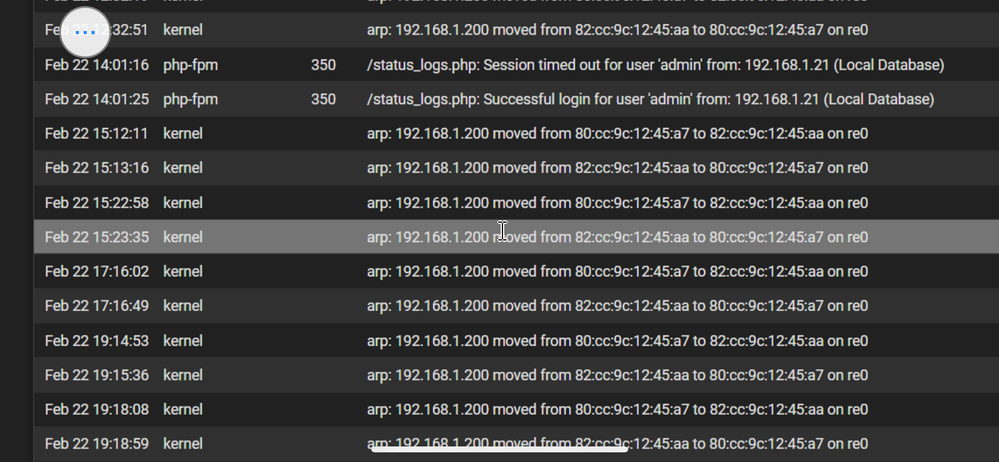

Howdy y’all. I have an Orbi RBR850 with 2 wired RBS850 and 1 wireless RBS750 satellites. All satellites work but one of them seems to randomly switch from wired to wireless mode randomly. I’m assuming that’s what is happening based on my pfsense logs. The Mac switches back and forth. The max ending in A7 is the wired MAC according to the Orbi pages. All firmware is upgraded. Any suggestions?

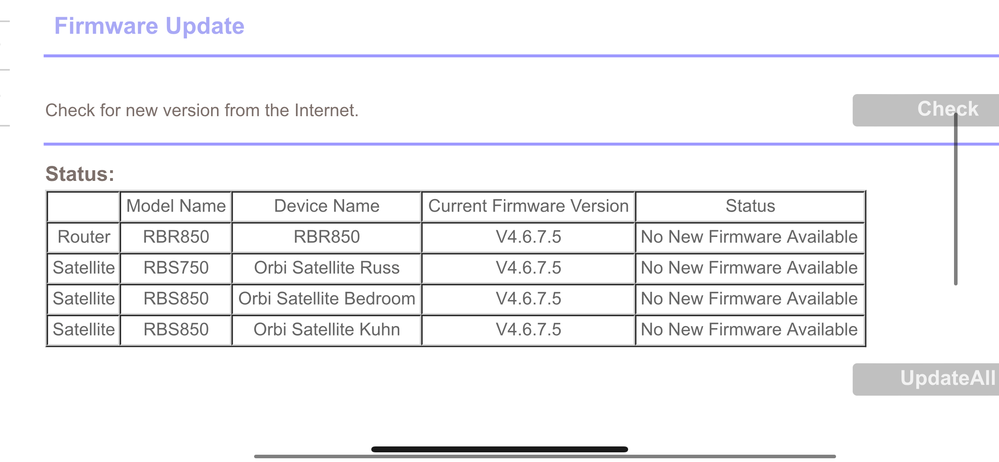

Orbi (all devices) V4.6.7.5
ATT Fiber Modem
Manufacturer NOKIA
Model Number BGW320-505
Serial Number XXXXXXXX
Software Version 2.14.4
MAC Address XXXXXXXXXXXX
First Use Date 2022/02/07 15:54:05
Time Since Last Reboot 02:11:41:25
Current Date/Time 2022-02-23T08:45:53
Hardware Version 02001E0046004F
Legal Disclaimer Open Source Licenses
Connection is as follows:
ATT Fiber Modem to pfSense WAN0.
pfSense WAN0 to LAN0 (Realtek with updated firmware dual card in pfSense machine)
pfSense LAN0 to Orbi RBR850 WAN Port. (Orbi setup in AP Mode)
RBR850 WAN Port to Orbi RBR850 Internal Port
Orbi RBR850 Internal Port to Netgear Unmanaged 10/100/1000 Switch
Netgear Unmanaged 10/100/1000 Switch to both RBS850 Satellites
6 Replies
What is the model# of the ethernet switch in the configuration?
What Cat# cables are you using? CAT6 is recommended.
Only a couple of factors that would cause this, some switches can be problematic. Some Green Ethernet featured switches, cable inbetween the RBR and RBS is not good, connections are bad on the cables or there maybe a bad patch panel in the mix.
Switch - Netgear GS108 Gigabit Switch
Cable - Cat6E
No other switch/patch panel in between the connection to this specific saltellite. I can double check my ends and make sure they're good.
I doublechecked and ran a tester on my ends, they seem to be Good to Go.
I went ahead and removed the switch from the equation and using the ethernet from the RBR850 direct to the RBS850 in question. We'll see what happens.
