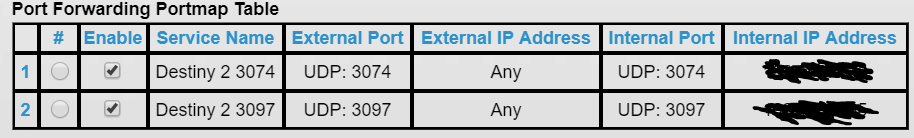

Hi, I'm trying to forward some ports on from my router to my PC but am having quite a bit of trouble. As you can see in the screenshot below. I have added both of the required ports to allow communications via my modem & PC. However when I check if the ports are open via the following website, it states that they are both closed. -https://www.yougetsignal.com/tools/open-ports/

> As you can see in the screenshot below. [...] There's no reason to hide the Internal IP Address value(s). What isthe IP address of that target server? What have you done to ensure thatit always has the address which appears in the port-forwarding rule?> [...] when I check if the ports are open via the following website, it> states that they are both closed. [...] Are you specifying the right external/public IP address for testing? Is that the WAN/Internet IP address of the router? Is the server program running on the target server system? The usual problems with this stuff are: 1. Wrong external IP address (different from the port-forwardingrouter's WAN/Internet IP address). (An intermediate NAT router, forexample, could cause this.) 2. Bad port-forwarding rule (wrong port(s), wrong target address --including a wandering target). 3. Server not listening on the port-forwarding target/server system. 4. External influences: ISP blocking, other firewalls, ...

> What have you done to ensure that it always has the address which appears in the port-forwarding rule? I've tried going into the ipv4 address settings but whenever I assign a static IP address I lose network connectivity. >Are you specifying the right external/public IP address for testing? Is that the WAN/Internet IP address of the router? The IP address being used to test is that of my router.

> I've tried going into the ipv4 address settings but whenever I assign> a static IP address I lose network connectivity. I don't know what that means. Which "the ipv4 address settings" doyou mean? "whenever [you] assign a static IP address" to what? Are youfiddling with the settings on your computer (in secret ways)? I'dexpect there to be an Address Reservation table under some location likeADVANCED > Setup > LAN Setup, and reserving an address there might besimpler/safer than trying to assign a static address on the computeritself.> The IP address being used to test is that of my router. Each interface of your router has its own IP address. The LANinterface has one, and the WAN/Internet interface has another one. Whatis your router's WAN/Internet IP address? (The first two octets of whatshould be your public IP address ("a.b" out of "a.b.c.d") will do, ifyou don't want to reveal the whole thing.) What is the target server ("Internal") IP Address in yourport-forwarding rules?> [...] What is the IP address of that target server? [...] Still wondering.> Is the server program running on the target server system? Still wondering.

I've gone into the Netgear genie and reserved the IP address for my device - 192.168.0.35 The public IP of my router beings with 58.107 Not sure what you mean by "Server program"

> I've gone into the Netgear genie and reserved the IP address for my> device - 192.168.0.35 What is your "my device"? And is it now at that address?> The public IP of my router beings with 58.107 Ok.> What is the target server ("Internal") IP Address in your> port-forwarding rules? Still wondering. This whole Q&A thing works better if all the questions get answeredthe first time they're asked.> Not sure what you mean by "Server program" When a message from the outside world arrives at (the WAN/Internetinterface of) your router, a port forwarding rule tells the router toforward that message to a computer at some particular LAN IP address andport number. What happens to that message when it arrives at thatcomputer? Some (server) program must be running on that computer whichis listening at that port number, or else that message will be ignored. If you tell the post office to forward your mail to a vacant lot,then it won't get delivered.> [...] I'm trying to forward some ports on from my router to my PC> [...] Why?

Port forwarding issues | NETGEAR Communities

14 Replies

antinode
Guru
Sep 07, 2018
> As you can see in the screenshot below. [...]

   There's no reason to hide the Internal IP Address value(s). What is
the IP address of that target server? What have you done to ensure that
it always has the address which appears in the port-forwarding rule?

> [...] when I check if the ports are open via the following website, it
> states that they are both closed. [...]

   Are you specifying the right external/public IP address for testing?
Is that the WAN/Internet IP address of the router?

   Is the server program running on the target server system?

   The usual problems with this stuff are:

   1. Wrong external IP address (different from the port-forwarding
router's WAN/Internet IP address). (An intermediate NAT router, for
example, could cause this.)

   2. Bad port-forwarding rule (wrong port(s), wrong target address --
including a wandering target).

   3. Server not listening on the port-forwarding target/server system.

   4. External influences: ISP blocking, other firewalls, ...
- LiamR16
  Aspirant
  Sep 09, 2018
  > What have you done to ensure that it always has the address which appears in the port-forwarding rule?

  I've tried going into the ipv4 address settings but whenever I assign a static IP address I lose network connectivity.

  >Are you specifying the right external/public IP address for testing? Is that the WAN/Internet IP address of the router?

  The IP address being used to test is that of my router.
  - antinode
    Guru
    Sep 09, 2018
    > I've tried going into the ipv4 address settings but whenever I assign
    > a static IP address I lose network connectivity.

       I don't know what that means. Which "the ipv4 address settings" do
    you mean? "whenever [you] assign a static IP address" to what? Are you
    fiddling with the settings on your computer (in secret ways)? I'd
    expect there to be an Address Reservation table under some location like
    ADVANCED > Setup > LAN Setup, and reserving an address there might be
    simpler/safer than trying to assign a static address on the computer
    itself.

    > The IP address being used to test is that of my router.

       Each interface of your router has its own IP address. The LAN
    interface has one, and the WAN/Internet interface has another one. What
    is your router's WAN/Internet IP address? (The first two octets of what
    should be your public IP address ("a.b" out of "a.b.c.d") will do, if
    you don't want to reveal the whole thing.)

       What is the target server ("Internal") IP Address in your
    port-forwarding rules?

    > [...] What is the IP address of that target server? [...]

       Still wondering.

    >    Is the server program running on the target server system?

       Still wondering.
