Forum Discussion
RN528 - how to determine RAM config
Found this post:
https://community.netgear.com/t5/New-ReadyNAS-Users-General/528x-ram-memory-upgrades/m-p/1410735
User runs "hwinfo" and "dmidecode" to determine his RN528 RAM config.

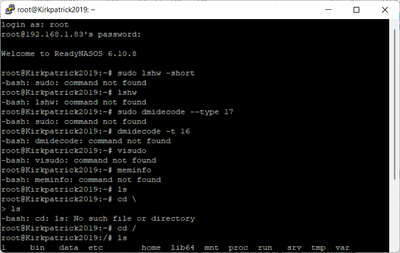

I've opened a linux shell using PuTTy with root login (as shown below), but "sudo" isn't recognized, nor is "dmidecode" nor "hwinfo". I'm guessing I need some kind of supervisor privilege to access these commands, how do I get there?

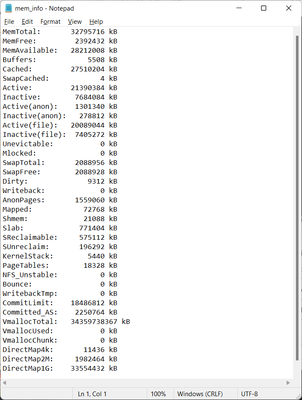

In my "meminfo" file (exported logs), seems to say I have 32GB but I don't recall installing this memory upgrade. RN528 comes with 4GB stock (so I thought).
Just want to confirm what RAM module(s) are in this thing without opening it, if possible.
2 Replies
You don't need sudo, since you are logging in as root.
You can install dmidecode if you like with
apt-get install dmidecodeMy RN526x has one DIMM module installed.
root@NAS:~# dmidecode --type 17 # dmidecode 2.12 SMBIOS 3.0 present. # SMBIOS implementations newer than version 2.8 are not # fully supported by this version of dmidecode. Handle 0x005B, DMI type 17, 40 bytes Memory Device Array Handle: 0x0059 Error Information Handle: Not Provided Total Width: 72 bits Data Width: 72 bits Size: 4096 MB Form Factor: DIMM Set: None Locator: DIMM_A1 Bank Locator: NODE 1 Type: Other Type Detail: Synchronous Speed: 2133 MHz Manufacturer: Undefined Serial Number: 0013EAFE Asset Tag: DIMM_A1_AssetTag Part Number: TS512MLH72V1H Rank: 1 Configured Clock Speed: 1866 MHz Minimum voltage: Unknown Maximum voltage: Unknown Configured voltage: 0.003 V ...Googling the part number indicates this is a Transcend part - DDR4 ECC Long-DIMM 4 GB
Thanks StephenB , appears I do in fact have 2 16GB modules in the NAS already. Part# 36ASF2G72PZ-2G1B1, which is a 16GB module. I guess senility is creeping in... can't find a purchase receipt anywhere for these modules.
SMBIOS 3.0 present.
# SMBIOS implementations newer than version 2.8 are not fully supported by this version of dmidecode.Handle 0x0049, DMI type 17, 40 bytes
Memory Device
Array Handle: 0x0047
Error Information Handle: Not Provided
Total Width: 72 bits
Data Width: 72 bits
Size: 16384 MB
Form Factor: DIMM
Set: None
Locator: DIMM_A1
Bank Locator: NODE 1
Type: <OUT OF SPEC>
Type Detail: Synchronous
Speed: 2133 MHz
Manufacturer: Micron
Serial Number: 14F961EF
Asset Tag: DIMM_A1_AssetTag
Part Number: 36ASF2G72PZ-2G1B1
Rank: 2
Configured Clock Speed: 1866 MHz
Minimum voltage: Unknown
Maximum voltage: Unknown
Configured voltage: 0.003 VHandle 0x004B, DMI type 17, 40 bytes
Memory Device
Array Handle: 0x0047
Error Information Handle: Not Provided
Total Width: Unknown
Data Width: Unknown
Size: No Module Installed
Form Factor: DIMM
Set: None
Locator: DIMM_A2
Bank Locator: NODE 1
Type: <OUT OF SPEC>
Type Detail: Synchronous
Speed: Unknown
Manufacturer: NO DIMM
Serial Number: NO DIMM
Asset Tag: NO DIMM
Part Number: NO DIMM
Rank: Unknown
Configured Clock Speed: Unknown
Minimum voltage: Unknown
Maximum voltage: Unknown
Configured voltage: 0.003 VHandle 0x004C, DMI type 17, 40 bytes
Memory Device
Array Handle: 0x0047
Error Information Handle: Not Provided
Total Width: 72 bits
Data Width: 72 bits
Size: 16384 MB
Form Factor: DIMM
Set: None
Locator: DIMM_B1
Bank Locator: NODE 1
Type: <OUT OF SPEC>
Type Detail: Synchronous
Speed: 2133 MHz
Manufacturer: Micron
Serial Number: 15FCB730
Asset Tag: DIMM_B1_AssetTag
Part Number: 36ASF2G72PZ-2G1B1
Rank: 2
Configured Clock Speed: 1866 MHz
Minimum voltage: Unknown
Maximum voltage: Unknown
Configured voltage: 0.003 VHandle 0x004E, DMI type 17, 40 bytes
Memory Device
Array Handle: 0x0047
Error Information Handle: Not Provided
Total Width: Unknown
Data Width: Unknown
Size: No Module Installed
Form Factor: DIMM
Set: None
Locator: DIMM_B2
Bank Locator: NODE 1
Type: <OUT OF SPEC>
Type Detail: Synchronous
Speed: Unknown
Manufacturer: NO DIMM
Serial Number: NO DIMM
Asset Tag: NO DIMM
Part Number: NO DIMM
Rank: Unknown
Configured Clock Speed: Unknown
Minimum voltage: Unknown
Maximum voltage: Unknown
Configured voltage: 0.003 V
