Create two logical groups using Flex-RAID
Hi,
I got two hard disc drives from different vendors with about 1TB and i do not want to mirror them but expand the available disc space.
I do not want to group both discs into one logical volume to reduce data lose if one of the discs fails.
I did a factory reset with only one disc (using two disc during factory reset would result in one logical volume)

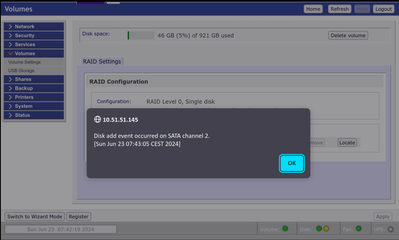

When adding the disc, its recognised, but I can't access it as share. I also do not see any mount points.
What is the next step to create a new logical volume for the second HDD? I tried for example:
mdconfig -a new -m /dev/md3 -l 0 -c 64 -r /dev/hde1 -s 0
device : /dev/md3
level : 0
chunk-size : 64
raid-disk : /dev/hde1
spare-disk : 0
ioctl(ADD_NEW_DISK): Device or resource busy
But the disc is always busy, although its not mounted!
How can I proceed on this?
I'm working on a ReadyNAS duo v1 (however I can't find it in Associated Products)
mfe- wrote:
mdconfig -a new -m /dev/md3 -l 0 -c 64 -r /dev/hde1 -s 0
I'm working on a ReadyNAS duo v1 (however I can't find it in Associated Products)
You shouldn't be doing this, you should be creating a new volume using frontview. It'd be called "D".
See pages 20-21 here:
6 Replies
Replies have been turned off for this discussion
The manuals for the Duo V1 are here:
https://www.netgear.com/support/product/rnd2000v1_(readynas_duo_v1/#docs
I also have a Duo V1 but have it in X-Raid with the 2 drives (2tb each) mirrored. X-Raid is the default.
When you did the initial setup, did you pick Flex-raid?

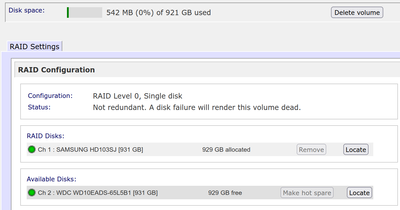

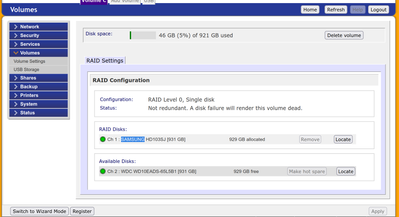

Yes, I picked Flex-RAID but second disc does not show up as allocated and neither can't I access it from a mount point. I didn't find a section in the manual which discusses separated logical groups with Flex-Raid

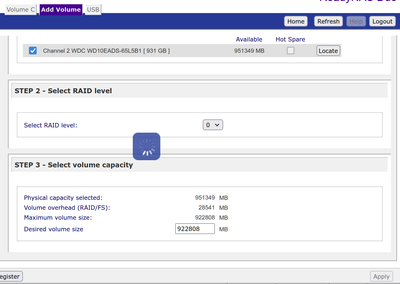

I'm sure one of the Guru's will be along shortly. In the meantime, looks like you do that from within Frontview (the Webui). Page 20 lists the steps. If you already have a volume with the 1st disk, you use Frontview to create a new volume on the 2nd disk.
Just to be sure, what version of RAIDiator are you on? 4.1.16 is the last one published. Are you able to access the Admin page?
mfe- wrote:
mdconfig -a new -m /dev/md3 -l 0 -c 64 -r /dev/hde1 -s 0
I'm working on a ReadyNAS duo v1 (however I can't find it in Associated Products)
You shouldn't be doing this, you should be creating a new volume using frontview. It'd be called "D".
See pages 20-21 here:
