Large Used/Free Space Discrepancy

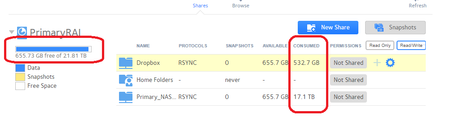

Hi, I'm trying to work out why our backup NAS system is reporting such a huge discrepancy between our consumed space and our free space. As per the screenshot below, the consumed space adds up to...
I've discontinued the use of these NAS boxes and moved to custom fileservers. We were using about 20.5TB. No doubt recreating the volumes would have helped recover the missing 1-2TB.
Ah, that is probably it. They are old volumes and snapshots would have been on at times in the past. I just assumed the GUI would show me if they still exist.
btrfs sub list //data
couldn't find a directory, so I changed it to
btrfs sub list //<nasvolumehere>
and there were 3 .snapshot paths listed. Also one .timemachine if that's relevant.
Is there a simple way to delete them?
You should be able to delete them from the web UI (select snapshots from the share list, then select the share. Right-click on one or more snapshots, and you'll see a delete option).
btrfs sub delete <<pathname>> should work too. Just be careful to delete the snapshot, and not the share.
Space isn't freed up instantly, the datablocks are freed in the background.
Hmm, no dice unfortunately. No snapshots were visible in the GUI at any point. I deleted them through SSH, but no space was freed up at all, even after a reboot and balance.
FreeFileSync is reporting 20.7GB of files as I back up to a different file system, so maybe BTRFS is just a bit confused and under reporting space usage in its share breakdown?
Do you do Time Machine backups to your NAS?
