Forum Discussion
ReadyNas NV+ RND4000 Kernel Panic
Hi, I was wondering if you oculd help with my ReadyNAS NV+ RND4000 Basically, it's the kernel panic issue, however, when I remove one specific drive, it does boot up, and I can access the web ad...
No shares in windows file explorer. I see the share exists in the web admin interface.
Here is volume.log - not sure really what this is telling me: I have a drive in 1, 3 and 4 at present:
===== pvscan =====
Couldn't find device with uuid 'FLPQ3K-sxWT-QMok-Cs7L-4869-Qi3a-LOifUt'.
Couldn't find device with uuid 'FLPQ3K-sxWT-QMok-Cs7L-4869-Qi3a-LOifUt'.
Couldn't find device with uuid 'FLPQ3K-sxWT-QMok-Cs7L-4869-Qi3a-LOifUt'.
Couldn't find device with uuid 'FLPQ3K-sxWT-QMok-Cs7L-4869-Qi3a-LOifUt'.
PV /dev/hdi5 VG c lvm2 [1.82 TB / 0 free]
PV /dev/hdc5 VG c lvm2 [1.82 TB / 0 free]
PV unknown device VG c lvm2 [1.82 TB / 5.00 GB free]
Total: 3 [5.45 TB] / in use: 3 [5.45 TB] / in no VG: 0 [0 ]
===== vgscan =====
Couldn't find device with uuid 'FLPQ3K-sxWT-QMok-Cs7L-4869-Qi3a-LOifUt'.
Couldn't find all physical volumes for volume group c.
Couldn't find device with uuid 'FLPQ3K-sxWT-QMok-Cs7L-4869-Qi3a-LOifUt'.
Couldn't find all physical volumes for volume group c.
Couldn't find device with uuid 'FLPQ3K-sxWT-QMok-Cs7L-4869-Qi3a-LOifUt'.
Couldn't find all physical volumes for volume group c.
Couldn't find device with uuid 'FLPQ3K-sxWT-QMok-Cs7L-4869-Qi3a-LOifUt'.
Couldn't find all physical volumes for volume group c.
Volume group "c" not found
Reading all physical volumes. This may take a while...
===== lvscan =====
Couldn't find device with uuid 'FLPQ3K-sxWT-QMok-Cs7L-4869-Qi3a-LOifUt'.
Couldn't find all physical volumes for volume group c.
Couldn't find device with uuid 'FLPQ3K-sxWT-QMok-Cs7L-4869-Qi3a-LOifUt'.
Couldn't find all physical volumes for volume group c.
Couldn't find device with uuid 'FLPQ3K-sxWT-QMok-Cs7L-4869-Qi3a-LOifUt'.
Couldn't find all physical volumes for volume group c.
Couldn't find device with uuid 'FLPQ3K-sxWT-QMok-Cs7L-4869-Qi3a-LOifUt'.
Couldn't find all physical volumes for volume group c.
Volume group "c" not found
===== vgdisplay =====
Couldn't find device with uuid 'FLPQ3K-sxWT-QMok-Cs7L-4869-Qi3a-LOifUt'.
Couldn't find all physical volumes for volume group c.
Couldn't find device with uuid 'FLPQ3K-sxWT-QMok-Cs7L-4869-Qi3a-LOifUt'.
Couldn't find all physical volumes for volume group c.
Couldn't find device with uuid 'FLPQ3K-sxWT-QMok-Cs7L-4869-Qi3a-LOifUt'.
Couldn't find all physical volumes for volume group c.
Couldn't find device with uuid 'FLPQ3K-sxWT-QMok-Cs7L-4869-Qi3a-LOifUt'.
Couldn't find all physical volumes for volume group c.
Volume group "c" not found
===== fstab =====
#-----------------------------------------------------------------------------
# <device> <mount> <type> <options> <freq> <pass>
#-----------------------------------------------------------------------------
/dev/hdi1 / ext2 defaults,noatime 0 0
proc /proc proc defaults 0 0
/dev/hdi2 swap swap defaults 0 0
/dev/hde2 swap swap defaults 0 0
/dev/hdg2 swap swap defaults 0 0
/dev/hdg1 / ext3 defaults,noatime 0 1
/dev/hdc2 none swap sw 0 0
/dev/hdc1 / ext3 defaults,noatime 0 1
stuinternat wrote:
No shares in windows file explorer. I see the share exists in the web admin interface.
Here is volume.log - not sure really what this is telling me: I have a drive in 1, 3 and 4 at present:
It's clear it cannot mount the volume
stuinternat wrote:
Device Model: WDC WD20EARX-00PASB0
Serial Number: WD-WCAZA6665747...
5 Reallocated_Sector_Ct 0x0033 200 200 140 Pre-fail Always - 8
...
196 Reallocated_Event_Count 0x0032 193 193 000 Old_age Always - 7
197 Current_Pending_Sector 0x0032 199 001 000 Old_age Always - 486...
Device Model: WDC WD20EARX-00PASB0
Serial Number: WD-WCAZA6662505...
5 Reallocated_Sector_Ct 0x0033 200 200 140 Pre-fail Always - 0...
196 Reallocated_Event_Count 0x0032 200 200 000 Old_age Always - 0
197 Current_Pending_Sector 0x0032 200 200 000 Old_age Always - 0
Note it is only seeing SMART information on two drives - not sure what slots they are in, you'd need to power down and check the serial numbers to see.
Also, WD-WCAZA6665747 isn't healthy - some reallocated sectors, but the current pending count is almost 500.
The missing drive says this:
***** smartctl output for hdg *****
smartctl 5.42 2011-10-20 r3458 [padre-linux-2.6.17.14ReadyNAS] (local build)
Copyright (C) 2002-11 by Bruce Allen, http://smartmontools.sourceforge.net
Smartctl: Device Read Identity Failed: empty IDENTIFY data
A mandatory SMART command failed: exiting. To continue, add one or more '-T permissive' options.
Do you know if this is also a WD20EARX?
All the drives are the exact same make and model.
I have them in slots 1, 3 and 4
If I swap 1 and 3 around I get kernal panic.
If I take drive 2 and put it in slot 4 it boots, any other combination it seems I get kernal panic.
I put all 4 in, I get kernal panic.

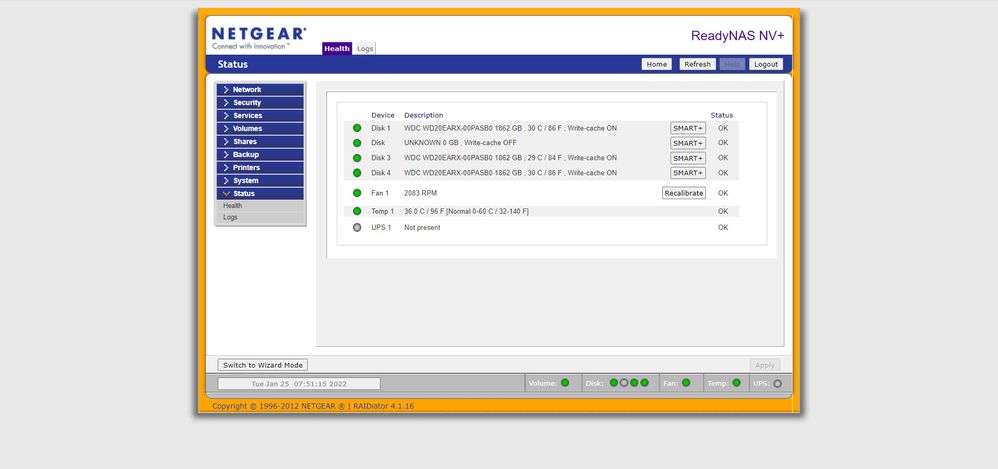

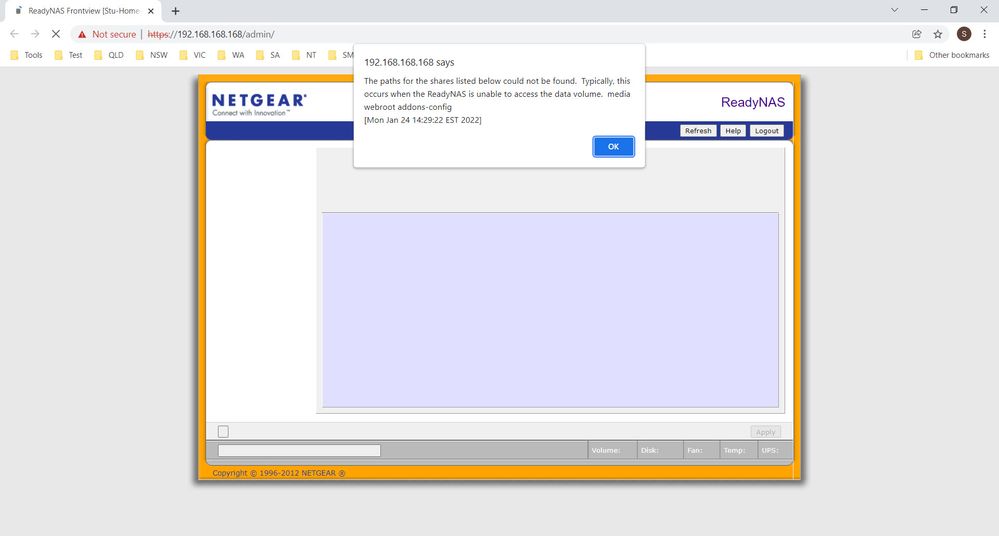

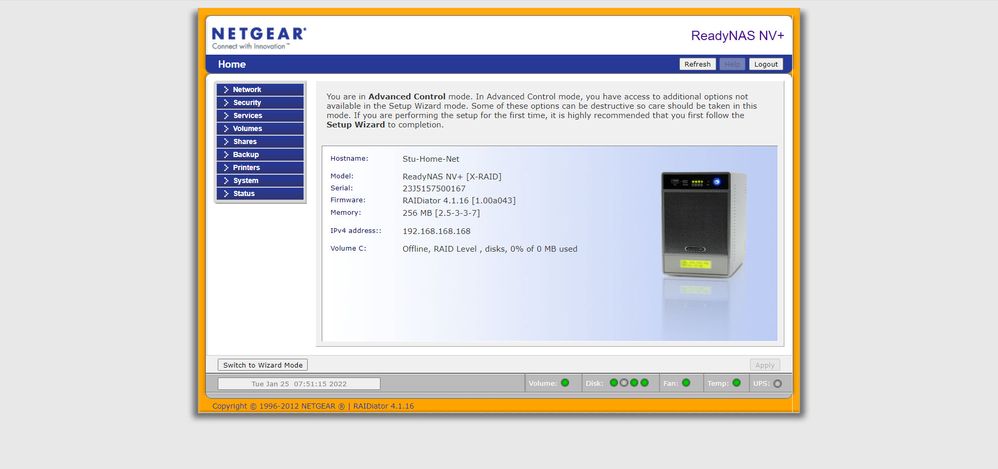

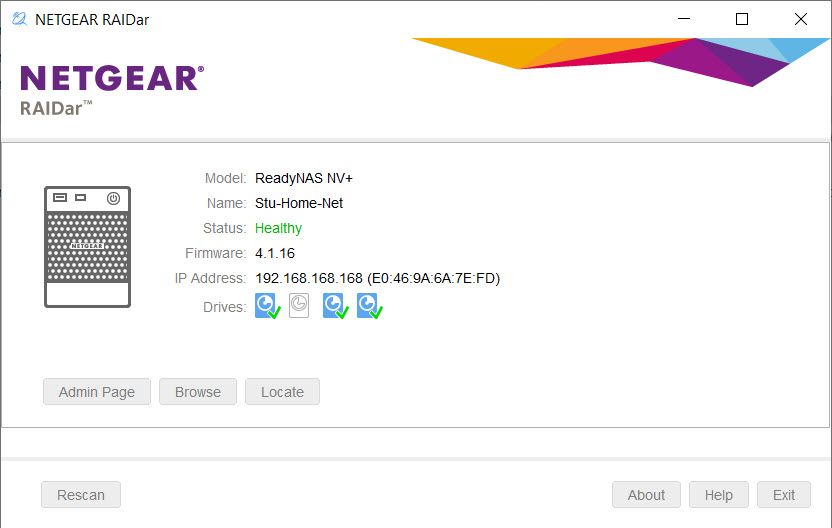

Here's some screenshots of the web admin and raidar....
stuinternat wrote:
All the drives are the exact same make and model.
Ok. So we have
- one disk which is apparently ok
- one disk which is on the edge of failure (~500 bad sectors)
- one disk which won't respond to smart requests
- one disk with unknown status (system won't boot with it inserted)
You need 3 working disks to retrieve all data - it's not clear to me whether you have that or not.
I do suggest testing the two last disks in my list with WDC's dashboard software. My guess is that the one that isn't responding to SMART will fail, but it would be useful to confirm. Odds of recovering data would be much higher is the one you removed turns out to be ok.
Okay, so I have taken out the disk that was at the edge of failure, inserted the removed disk, and the system is now loading, it is doing a FS check, and is currently at 94%, so hopefully with these 3 disks I may be able to retrieve my data?
So odd, because it was working just 2 days ago.
Once in, and assuming it does not do a kernel panic, I'll export all logs and maybe we can see what is the status of the other disk.
So, here is what I know so far in a table.....
Serial 24-01-22 25-01-22 Reallocated_Sector_Ct Reallocated_Event_Count Current_Pending_Sector Comment WD-WCAZA6665747 4 4 8 7 486 Edge of failure WD-WCAZA6662505 3 3 0 0 0 Okay WD-WCAZA6666340 1 out of box no data No Data TBD out of box 1 TBD TBD
stuinternat wrote:
Okay, so I have taken out the disk that was at the edge of failure, inserted the removed disk, and the system is now loading, it is doing a FS check, and is currently at 94%, so hopefully with these 3 disks I may be able to retrieve my data?
Hopefully yes.
If you do see the data, you should immediately off-load it. WCAZA6665747 is definitely on borrowed time.

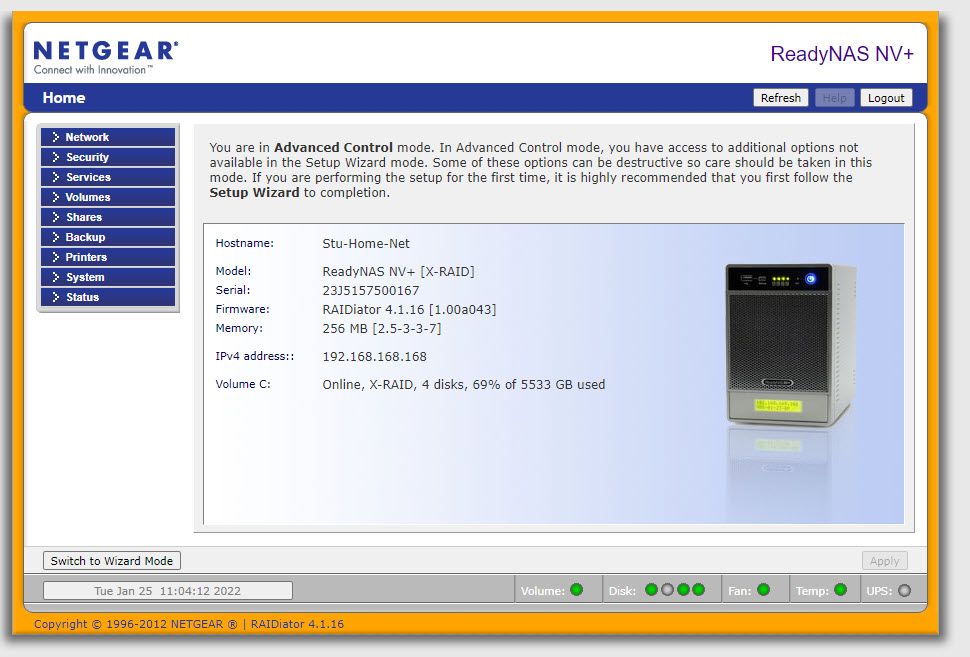

Okay, so now I'm online?
Yep, I have my data, moving it now - hope it doesn't fail.
Does this mean that WD-WCAZA6666340 is dead because of no SMART data?
...and THANK YOU SO MUCH
I actually ordered an extra drive to resolve this, hoping that putting it in would rebuild the array, I guess I don't need that now? Or should I add it to help with copying off the data?
Also, it says I am redundant, but I don't see how I can be with 3 disks in. The system won't work with just 2 will it?
stuinternat wrote:
Yep, I have my data, moving it now - hope it doesn't fail.
Does this mean that WD-WCAZA6666340 is dead because of no SMART data?
Something definitely went wrong when the system tried to query the SMART data.
After you off-load the data, I recommend testing all the drives in a Windows PC with WD's dashboard (running the long generic test). You might need to purchase a usb adapter/dock (which are inexpensive).
stuinternat wrote:
Also, it says I am redundant, but I don't see how I can be with 3 disks in. The system won't work with just 2 will it?
No, it won't. Not sure why it thinks it's redundant.
stuinternat wrote:I actually ordered an extra drive to resolve this, hoping that putting it in would rebuild the array, I guess I don't need that now?
You might, depending on how the disk tests come out.
