Swapping HDDs between different ReadyNas Duo v2
I have a RedayNas Duo v2 that will no longer mount its 2 HDDs. After a power outage and a successful synchronization of the RAID X configuration (started by the NAS itself) and a scheduled power down...
willeand wrote:
. Looks like disk 1 is about to fail or has failed already but then disk 2 should have taken over, right? Is the Ready NAS OS only on disk 1?
The OS is on both disks, but the system normally boots from the first disk it sees. So I would try booting up with only disk 2 (in slot 2) and see what happens.
Hi Stephen,
thank you for your reply. I have not done any further steps as advised (was out of town) but here is what I found out in the meantime.
The day the system failed, we had construction workers using a shaker/vibrator compacting soil-backfill for the road right next to our house for hours (30 feet from the NAS in the basement).
So, I though I first check if the two disks that were spinning in the NAS at the time took any damage.

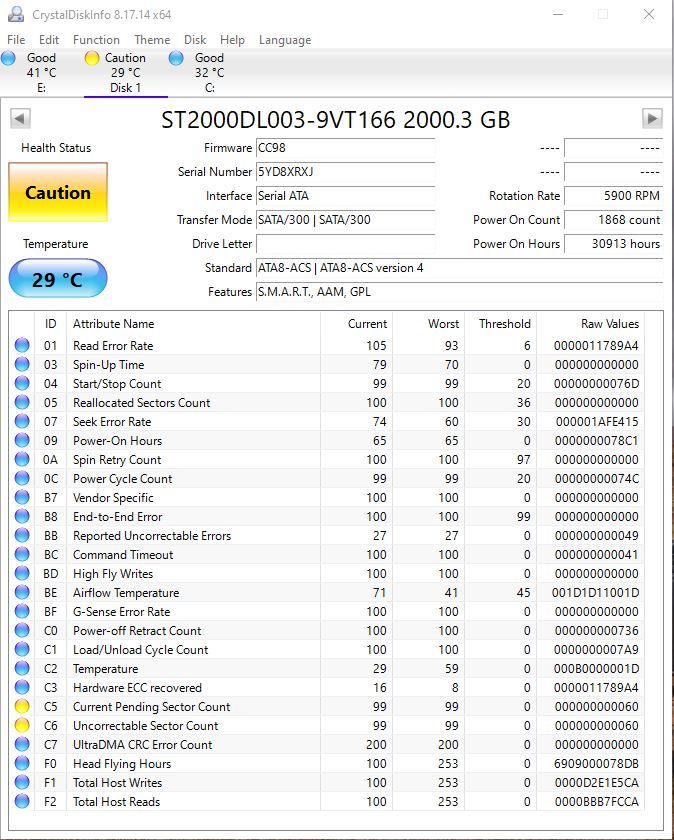

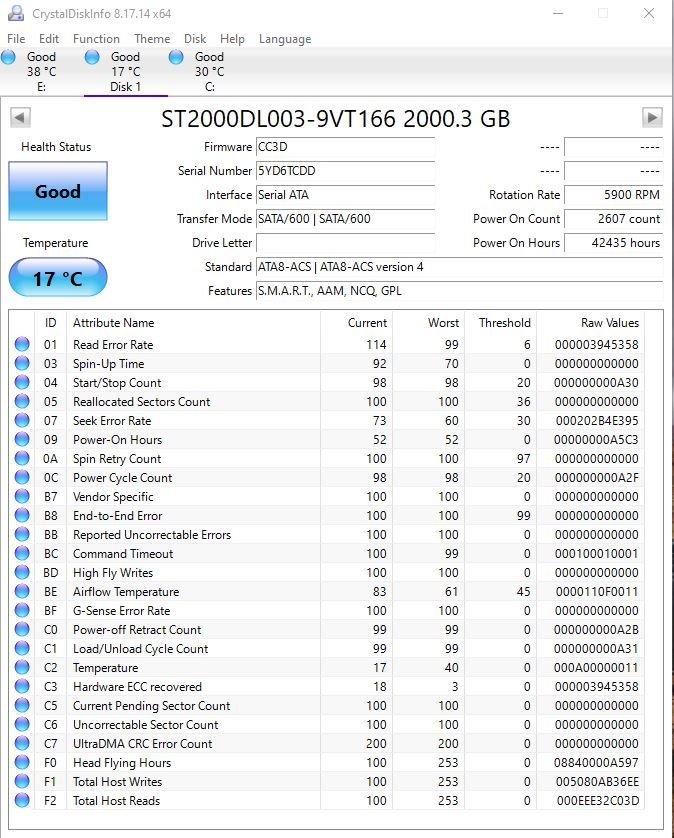

I did a SMART check on the disks and have attached the analysis below. Looks like disk 1 is about to fail or has failed already but then disk 2 should have taken over, right? Is the Ready NAS OS only on disk 1? Will it be written to disk 2 if I only insert the original disk 2? Seems that disk 2 is still OK (and the NAS did a full synchronization the day before it failed).
I also found out that the questionable NAS is not questionable at all. I inserted one blank disk (not even from a NAS) into it and it worked fine. I also inserted two disks (X-RAID) taken of another Ready NAS Duo v1 and it worked fine.
I also made sure the the both Ready NAS Duo I have are on same firmware 4.1.16.
Shall I still proceed in the way you recommended?
Disk 1Disk 2
willeand wrote:
. Looks like disk 1 is about to fail or has failed already but then disk 2 should have taken over, right? Is the Ready NAS OS only on disk 1?
The OS is on both disks, but the system normally boots from the first disk it sees. So I would try booting up with only disk 2 (in slot 2) and see what happens.
Hi Stephen, tanks for the advice. I just started with disk 2 in slot 2 (in the NAS where its always been) and the NAS is now back up and running, albeit non- redundant. I will have to find another old 2TB disk to make it redundant again.
Thanks a lot for your help, big relief an my end.
Its time for a new NAS and its too bad that Netgear discontinued the NAS series.
cheers
Andreas
