Connecting existing Stack to new stack via new layer 3 switch.
Hi All, i would appreicate some help, as i am new the configurations of switches, so on a step learning curve. I have just purchased x2 M4300-48X L2 x2 M4300-8x8f L3. Currently we have x2 G...
Hi Mike77,
Welcome to the community!
I try to understand what you mean.

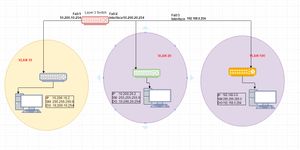

M4300-8X8F working as L3 switch, create three L3 routing VLAN, as VLAN10,20,30
M4300-48X and GS700TS working as L2 switch. Clients of VLAN10/20 connect to M4300-48X, clients of VLAN30 connect to GS700TS.
Problem is:
1. Client of VLAN30 can ping L3 routing VLAN10/20/30, but cannot ping clients of VLAN10/20
2. Clients of VLAN10/20 can ping L3 routing VLAN10/20, but cannot ping L3 routing VLAN30
AM I right?
If so, would you please test further more.
1. Does client of VLAN10 can ping client of VLAN20?
2. Would you please provide the configuration for M4300-8X8F and M4300-48X? I want to confirm the configure again.
How do I send configure files from my Managed Switch to NETGEAR community moderators?
http://kb.netgear.com/app/answers/detail/a_id/3143
Thanks,
Eric
