M4100-26G IP Subnet based VLANs

I have a Netgear M4100-26G, running firmware version 10.0.2.20.

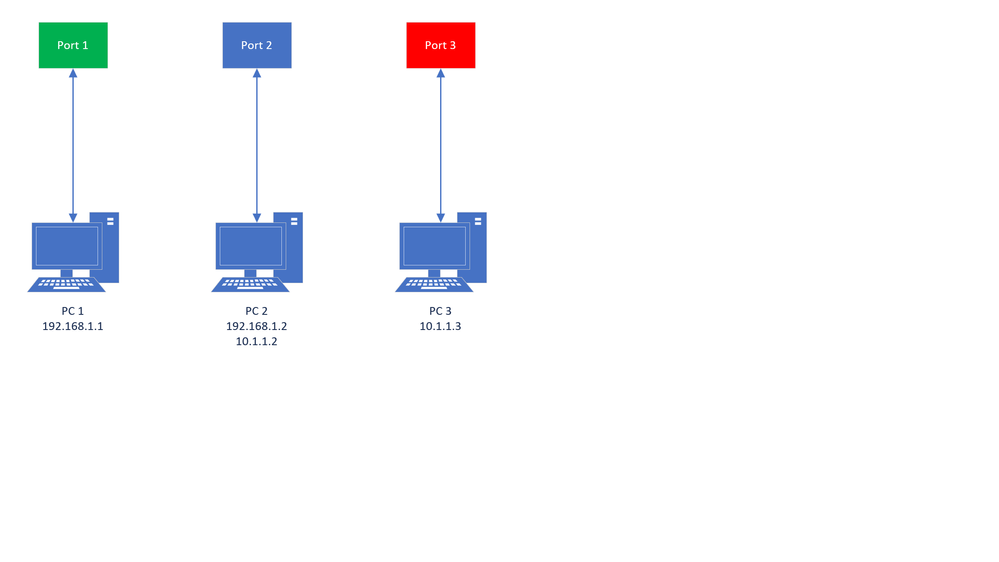

I am interested in connecting the three computers seen in the picture between two VLANs.

I would like



VLAN 2:

  • PC 1
  • PC 2

and

VLAN 3:

  • PC 2
  • PC 3

I would like all ports to be untagged. I read that traditional static ports can only have a single untagged VLAN associated with them. In my understanding, a way to get around this problem is to use IP Subnet Based VLAN Configurations.

In my switch I went to Switching -> VLAN -> Advanced -> IP Subnet Based VLAN and created two new rules:



1) 192.168.1.0 / 255.255.255.0 / VLAN 2

2) 10.0.0.0 / 255.0.0.0 / VLAN 3



A few questions:

1) In my understanding, traffic arriving at the switch from PC 2 will be assigned the appropriate VLAN by this rule. Traffic from PC 1 and PC 3 can have a known VLAN a priori. Do I need to create static VLANs under Switching -> VLAN -> Advanced -> VLAN Configuration for VLAN 2 and 3 and then assign "U" to their ports in Switching -> VLAN -> Advanced -> VLAN Membership? If so, does having static VLANs and dynamic VLANs with the same numbers cause a conflict?

2) It's my understanding that I will need to enable GVRP mode (Switching -> VLAN -> Advanced -> GARP Switch Configuration). For the dynamic VLAN required for the IP subnet based approached to work. Is this correct?

3) Next, I go to Switching -> VLAN -> Advanced -> GARP Port Configuration. Here, do I need to enable "Port GVRP Mode" for Port 2 only or for all three ports (1,2,3)? My understanding is that only port 2, connected to PC 2, is doing anything dynamically.

4) I found an option for "Dynamic VLAN Creation Mode" in Security -> Port Authentication. I have enabled this.

















  • I was able to get this working. To do this, I:

    1) In Switching -> VLAN -> Advanced -> VLAN Configuration, I created two new static VLANs, 2 and 3.

    2) In Switching -> VLAN -> Advanced -> VLAN Membership, I made ports 1 and 2 untagged members of VLAN 2. I then made ports 2 and 3 untagged members of VLAN 3.

    3) In Switching -> VLAN -> Advanced -> IP Subnet Based VLAN, I created two new rules

    • 192.168.1.0/24 -> VLAN 2
    • 10.1.1.0/24 -> VLAN 3

    This appears to give me the configuration I wanted.



    To answers my questions:

    1) Dynamic VLANs were not needed. I mistakenly thought they were required for IP subnet rules to be in effect.

    2) GVRP was not needed.

    3) Also not needed.

    4) Also not needed.

1 Reply

Replies have been turned off for this discussion
  • I was able to get this working. To do this, I:

    1) In Switching -> VLAN -> Advanced -> VLAN Configuration, I created two new static VLANs, 2 and 3.

    2) In Switching -> VLAN -> Advanced -> VLAN Membership, I made ports 1 and 2 untagged members of VLAN 2. I then made ports 2 and 3 untagged members of VLAN 3.

    3) In Switching -> VLAN -> Advanced -> IP Subnet Based VLAN, I created two new rules

    • 192.168.1.0/24 -> VLAN 2
    • 10.1.1.0/24 -> VLAN 3

    This appears to give me the configuration I wanted.



    To answers my questions:

    1) Dynamic VLANs were not needed. I mistakenly thought they were required for IP subnet rules to be in effect.

    2) GVRP was not needed.

    3) Also not needed.

    4) Also not needed.
