Forum Discussion
dnell20
Nov 27, 2022Aspirant
m4300-28g

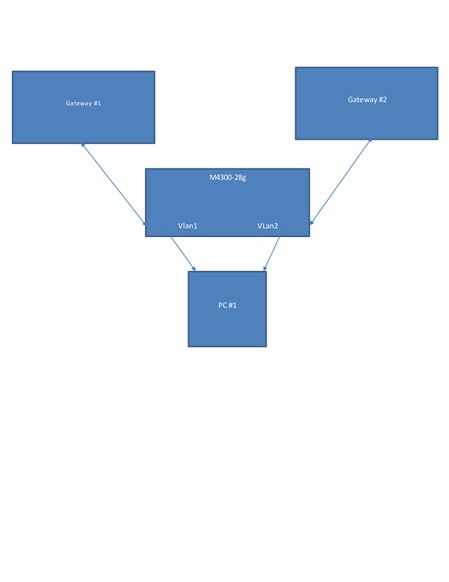

I'm still fairly new to this so I apologize in advance if I don't have all the correct information needed to phrase the question properly, but I've attached a diagram that might be able to better exp...
- Retired_MemberNov 28, 2022
" do you mean the routing table in the OS of the machine. "
Not, really. When you set up a NIC, you define a subnet and a default gateway for it. Windows will create itself all necessary routes. You will be able to reach any address in those subnets right away. However for addresses outside of those subnets, Windows needs a default gateway and here’s the dilemma. Each NIC has its own default gateway, but there may be only one default gateway in a system as a whole. Therefore, Windows will pick one of those NICs and use it for those addresses all the time, that is unless it is told otherwise. Windows Server or Windows 10 makes it possible to set up load balancing to use multiple NICs. Windows 11 does not support it. But, yes, you can create static routes for some specific addresses or address ranges where you indicate the NIC to be used.
schumaku
Nov 28, 2022Guru - Experienced User
The basic static routing decision is defined on the PC with the two adapters is done by the IP stack based on the subnet addressing.
Retired_Member
Nov 28, 2022" do you mean the routing table in the OS of the machine. "
Not, really. When you set up a NIC, you define a subnet and a default gateway for it. Windows will create itself all necessary routes. You will be able to reach any address in those subnets right away. However for addresses outside of those subnets, Windows needs a default gateway and here’s the dilemma. Each NIC has its own default gateway, but there may be only one default gateway in a system as a whole. Therefore, Windows will pick one of those NICs and use it for those addresses all the time, that is unless it is told otherwise. Windows Server or Windows 10 makes it possible to set up load balancing to use multiple NICs. Windows 11 does not support it. But, yes, you can create static routes for some specific addresses or address ranges where you indicate the NIC to be used.
- dnell20Nov 28, 2022Aspirant
Ok great. Thanks again for your help I really appreciate it.
Have a great day.....
