M4300 SNMP zabbix problem

Dear All!



I tried to start to monitor my netgear switches, and on the server i choosed the built in netgate template.

Works fine expected two things, the psu and the fan recognize is false, found a few threads about this but no solution.

At mapping i see this:

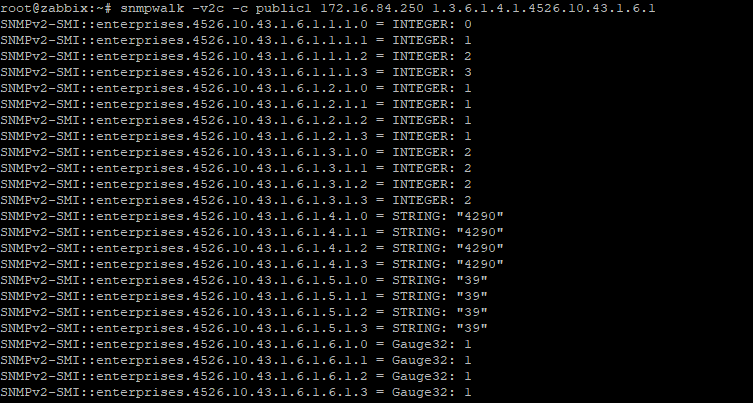

The switch default state is two, so thats noot good, and if i try to snmpwalk th oid i get only 1 and 2 for value if im doing it good.

The fan state is fan 0:

1.3.6.1.4.1.4526.10.43.1.6.1.3.1.0 and gets 2 what is fault in the value, but cannot figure out what is the correct value.

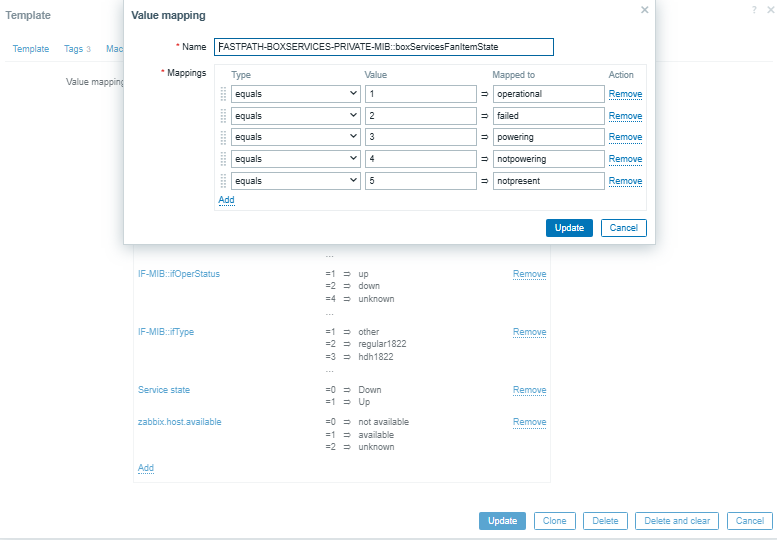

Now to solve the problem in the mapping i switch operational and failed value, and in the macro set the fault to 1, now its reports okay but im not sure its 100% will work when i have a fan error.



PSU the problem i have is the psu0 has problem and i dont know why.

No RepliesBe the first to reply
