M4300 stacking between M4300-28G and M4300-12X12F

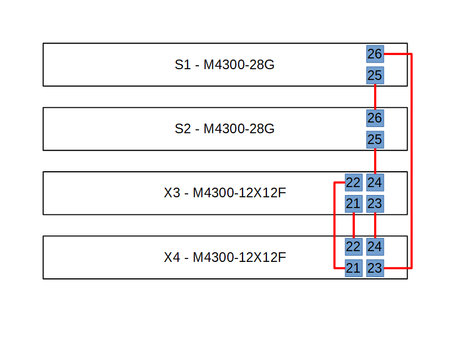

Hello, I want to build stack as in image: All blue ports will be set to stacking mode. I have two questions: 1. Will it work at all? 2. Will I get any speed benefits from additional c...

schumaku
Feb 19, 2022
WojtekC wrote:

1. Will it work at all?

Can't see anything wrong.

WojtekC wrote:

2. Will I get any speed benefits from additional connections between X3 and X4 ports 21 and 22?

This dobles the bandwidth between the two 12x12f swtches.

Guru - Experienced User

Feb 19, 2022

WojtekC wrote:

1. Will it work at all?

Can't see anything wrong.

WojtekC wrote:

2. Will I get any speed benefits from additional connections between X3 and X4 ports 21 and 22?

This dobles the bandwidth between the two 12x12f swtches.

WojtekC
Guide
Feb 21, 2022
Thank You.
