Forum Discussion
SFP status netgear AV line / M4250
Is it possible to read out the SFP data like received light power in the netgear M4250 AV line switches? this to determine the fiber connection between the 2 switches?
Ideal we would like to ad an SBC like raspberry to show the values automatically after start up in an display.
3 Replies
Welcome to the Netgear Community!
Of course, like on all Managed M4300/M4250/M4350 Series - check out these commands for SFP transceiver as below.
show fiber-ports optics
show fiber-ports optics-diag
show fiber-ports optics-eeprom
show fiber-ports optics-infoI suggest you to check more details information from our CLI command reference document before you try above comments.
AV Line of Fully Managed Switches M4250 Series CLI Command Reference Manual Firmware Version 13.0.0 p.170 ff.

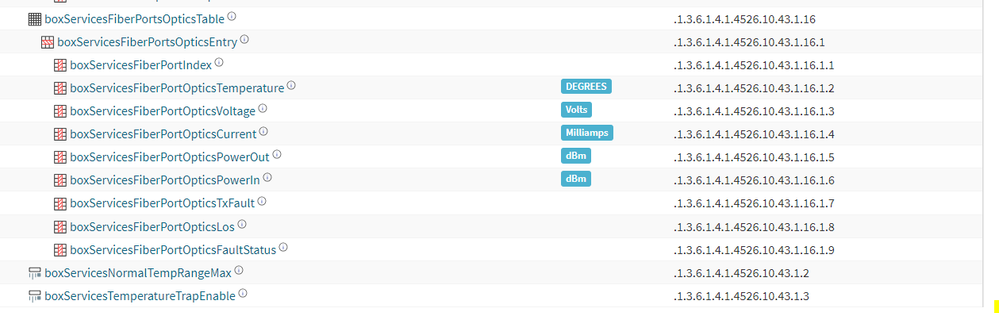

Alternate, use SNMP Private MIBS - boxServicesFiberPortsOpticsTable .1.3.6.1.4.1.4526.10.43.1.16
Thank you, schumaku
The Engage Controller (www.netgear.com/engage) also display all fiber modules with their technical data (Send and Receive DB) in the monitoring section (fiber modules). It might be even easier!
