Forum Discussion

Administrator

Dec 04, 2020

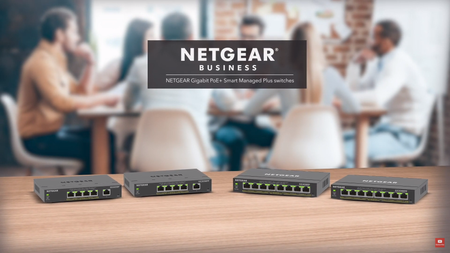

Compact and Plus Switches with PoE+ GS305EP GS305EPP GS308EP GS308EPP

Introducing NETGEAR Gigabit Ethernet PoE+ Plus Switches, the best valued switches for small businesses and for those working remotely with plug-and-play connectivity. Offered as an alterna...

Tutor

Jan 19, 2021

What is the power consumption of these models (without PoE devices attached)?

schumaku
Guru - Experienced User
Jan 19, 2021
User Manual Gigabit Ethernet Smart Managed Plus Switches Models • GS305EP • GS305EPP • GS308EP • GS308EPP p.91 / p.92 Power Consumptions
---
Model GS305EP and GS308EP technical specifications
The following table shows the technical specifications for models GS305EP and GS308EP.
...
Power consumption
GS305EP: 4.9W (no PoE), 74.7W (with PoE max)
GS308EP: 6.0W (no PoE), 74.4W (with PoE max)

Model GS305EPP and GS308EPP technical specifications
The following table shows the technical specifications for model GS305EPP and GS308EPP.
...
Power consumption
GS305EPP: 4.5W (no PoE), 137.8W (with PoE max)
GS308EPP: 5.9W (no PoE), 141.4W (with PoE max)
---

Hard to understand why this essential information does not make it to the Data Sheet | GS305EP, GS305EPP, GS308EP, GS308EPP - it' not in the D-GS305EP/GS305EPP/GS308EP/GS308EPP-16Oct20 edition at least. YeZ please forward....
- Gregoirec
  Tutor
  Jan 19, 2021
  Many thanks for your quick reply! Somehow I missed the user manual. 😊
  - schumaku
    Guru - Experienced User
    Jan 19, 2021
    Yes, the UM was my last resort, too ;-)
