GS180PEv3 management VLAN reachable via guest VLAN

I originally posted this on the Ubiquiti forums, but have determined that my Netgear GS108PEv3 appears to be the issue.  Details of my network and problem are below:



I have setup a Ubiquiti Edge Router Lite, and almost everything is working as planned--except my guest vlan has the ability to ping a single address on the management vlan.  Specifically, when I log onto the guest wifi, I get a 10.0.20.X ip on vlan 20, which I want. I am not able to ping 10.0.20.1, 10.0.10.1, 10.0.10.3, 10.0.10.4, which I also want...but I AM able to ping the Netgear GS108PEv3 switch at 10.0.10.2, which I don't want.

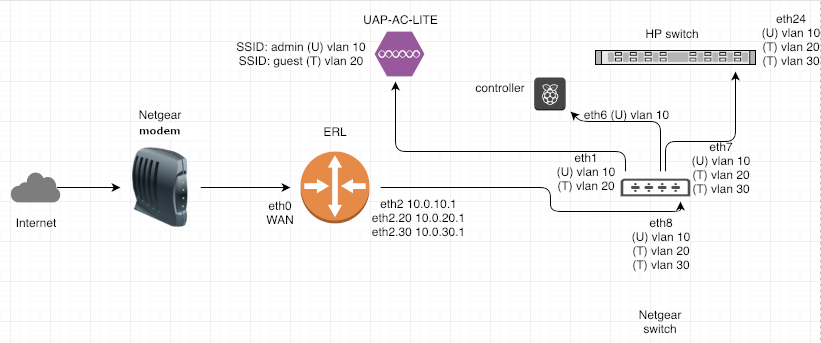

My setup is as followed:



AP

I have two SSID:

Admin Untagged on VLAN 10

Guest Tagged on VLAN 20



Netgear switch ip 10.0.10.2

Port 1: Untagged VLAN 10, Tagged VLAN 20 (to AP ip via DHCP)

Port 6: Untagged VLAN 10 (to controller at 10.0.10.4)

Port 7: Untagged VLAN 10, Tagged VLAN 20, Tagged VLAN 30 (to HP switch at 10.0.10.3)

Port 8: Untagged VLAN 10, Tagged VLAN 20, Tagged VLAN 30 (to ERL router at 10.0.10.1)



HP switch ip 10.0.10.3

Port 24: Untagged VLAN 10, Tagged VLAN 20, Tagged VLAN 30



ERL Router

eth0: WAN

eth2: 10.0.10.1 Untagged VLAN 10

eth2.20: 10.0.20.1 Tagged VLAN 20

eth2.30: 10.0.30.1 Tagged VLAN 30

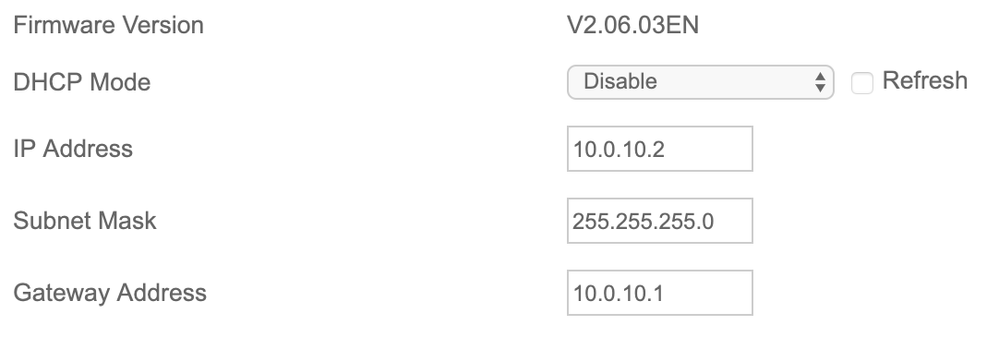

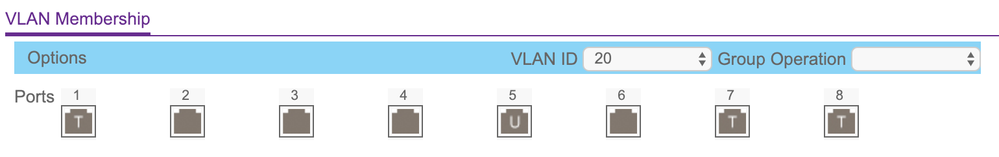

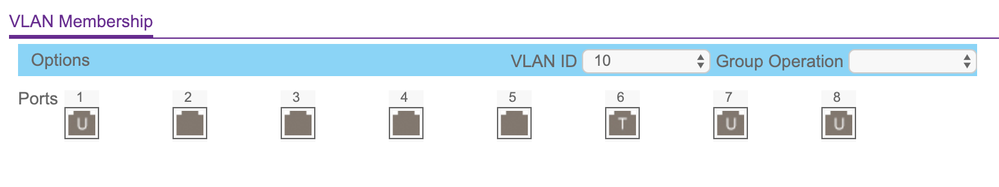

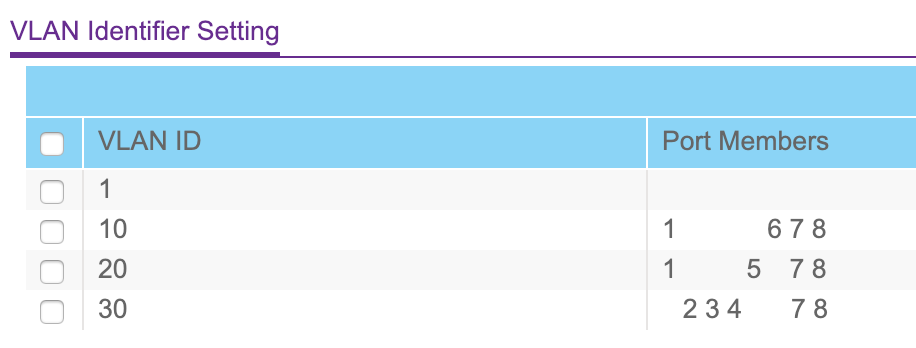

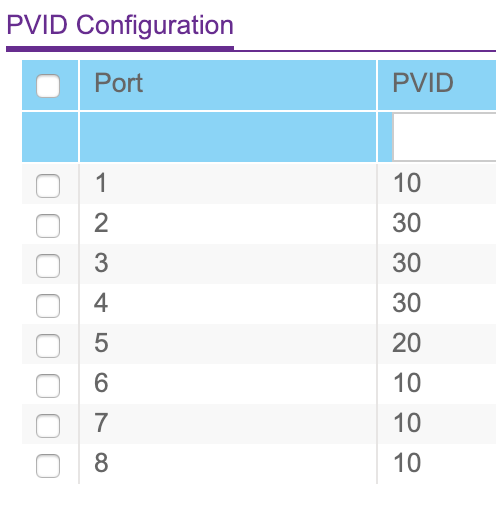

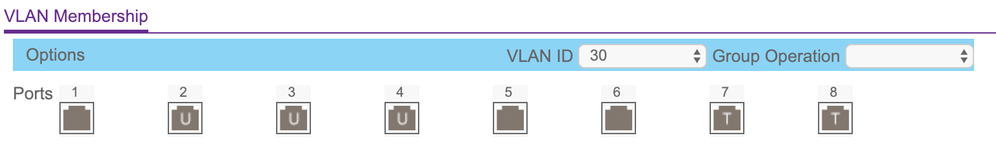

Some additional photos of my settings in the Netgear switch:



My firewall rules:

firewall {
    all-ping enable
    broadcast-ping disable
    group {
        network-group RFC1918_RANGES {
            description "All possible private addresses"
            network 192.168.0.0/16
            network 172.16.0.0/12
            network 10.0.0.0/8
        }
    }
    ipv6-receive-redirects disable
    ipv6-src-route disable
    ip-src-route disable
    log-martians enable
    name CAMS_IN {
        default-action drop
        description "CAMS to eth2.10"
        rule 10 {
            action accept
            description "Allow VLAN 10 connection"
            destination {
                address 10.0.10.0/24
            }
            protocol all
            source {
            }
            state {
                established enable
                related enable
            }
        }
    }
    name CAMS_LOCAL {
        default-action drop
        description "Drop CAMS to router"
    }
    name GUEST_IN {
        default-action accept
        description "GUEST to WAN"
        rule 10 {
            action drop
            description "Drop GUEST to any private address on other interface"
            destination {
                group {
                    network-group RFC1918_RANGES
                }
            }
            protocol all
        }
    }
    name GUEST_LOCAL {
        default-action drop
        description "Drop GUEST to router"
    }
    name WAN_IN {
        default-action drop
        description "WAN to LAN for established/related"
        rule 10 {
            action accept
            description "Allow established/related packets"
            state {
                established enable
                related enable
            }
        }
        rule 20 {
            action drop
            description "Drop invalid packets"
            state {
                invalid enable
            }
        }
    }
    name WAN_LOCAL {
        default-action drop
        description "WAN to router for established/related"
        rule 10 {
            action accept
            description "Allow established/related packets"
            state {
                established enable
                related enable
            }
        }
        rule 20 {
            action drop
            description "Drop invalid packets"
            state {
                invalid enable
            }
        }
    }
    receive-redirects disable
    send-redirects enable
    source-validation disable
    syn-cookies enable
}

Here is the link to the UBNT forum with lots of TCPDumps as well:

Netgear switch responding to pings from guest VLAN



TLDR;

My Netgear GS108PEv3 appears to respond to pings and is reachable via browser from guest vlan when my firewall rules and router config appear to be correct.  Maybe I am missing (or messed up) a setting on the GS108PEv3 switch?  I've removed the switch and replaced it with a cheap Zyxel managed switch and I am NOT able to reach the management VLAN from the guest VLAN, which is what I want.  I upgraded the firmeware, factory reset the Netgear router, and reconfigured it, only to be able to hit the Netgear switch from guest VLAN--which is what I do NOT want.  How can I ensure this switch is NOT reachable via a guest VLAN?  Did I possibly misconfigure this switch?
