GS724T V2 How to configure a LAG pair
Hello I have a GS724T V2 the product specs and docs state that it is capable of LAG and LACP and I need to configure 2 ports as a LAG pair and connect them to my ESXI 6.7 U3 server. I cannot see a...
https://www.downloads.netgear.com/files/GDC/GS724Tv2/enus_ds_gs724t.pdf
Clearly states:
- Port Trunking - Manual as per IEEE802.3ad
Link Aggregation
But no information as to how to configure it.
Cheers
Spart
https://www.downloads.netgear.com/files/FSxxxT_GSxxxT_smartswitch_UserManual.pdf

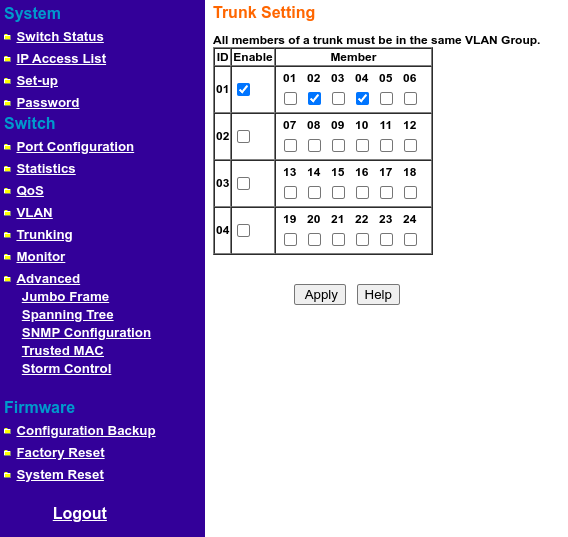

Switch> Trunking Page
p4-10 ff
not that transparent I admit 8-)
So just enable a trunk group and select the ports and thats it?
So example. These 2 ports are connected to the vswitch in ESXI 6.7
That didn't work. It caused weird issues on the network.
ESXI does load balancing on the pair of connections and link failover if one of the links fails.
Some kind of mismatch going on.
Still looking for an answer.
CheersSpart
- Haven't evaluated in detail. Just spotted some interesting but also confusing bits on port groups.
Seriously, I would go for a known correctly switch, not some almost two decade old devices...
