Forum Discussion

doucettea's avatar
doucettea
Aspirant
Nov 02, 2021
Solved

Help setting up VLANs

Hi, I'm having a hard time setting up home VLANs. I essentially want a separate VLAN for a main (trusted) network, one for the kids, one for guests, and one for IOT devices. I'm sure it's because I don't understand it fully, but I've been spending a lot of time on this and cannot seem to get it right. Could I please have some help?

I cannot figure out how to set the "Advanced 802.1Q" settings on my switches.



Info: I have a home network with a cable modem that goes to an Untangle router, then to a Netgear gs116ev2 switch. From there, it goes to a number of other netgear switches and to Unifi wireless access points. The VLAN's I've set up are 1-default, 20-guest, 30-IOT, and 40-kids. Each has a virtual interface in Untangle with its own DHCP etc.

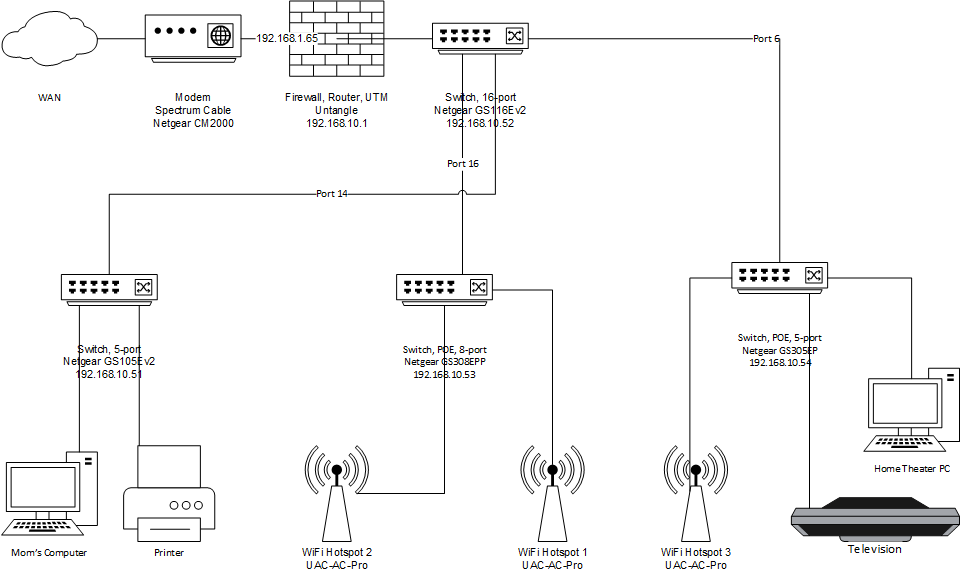

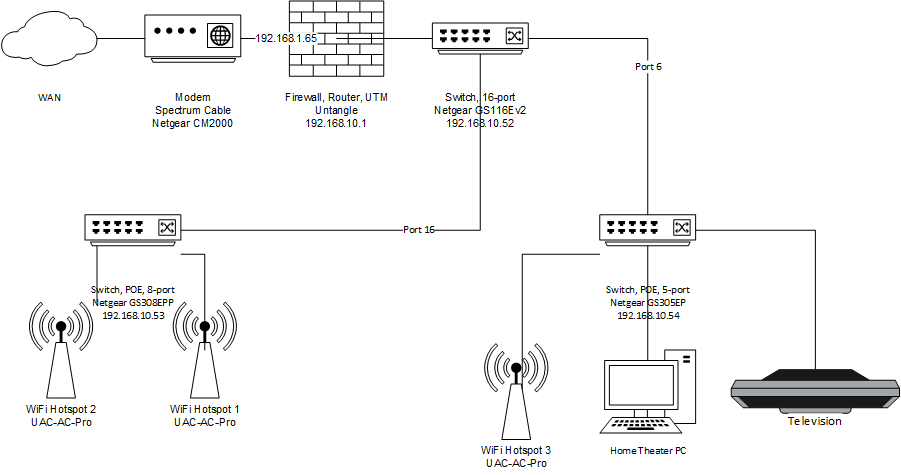

Here is a basic diagram of my network (all Netgear smart switches):



I'm struggling with the VLAN settings.

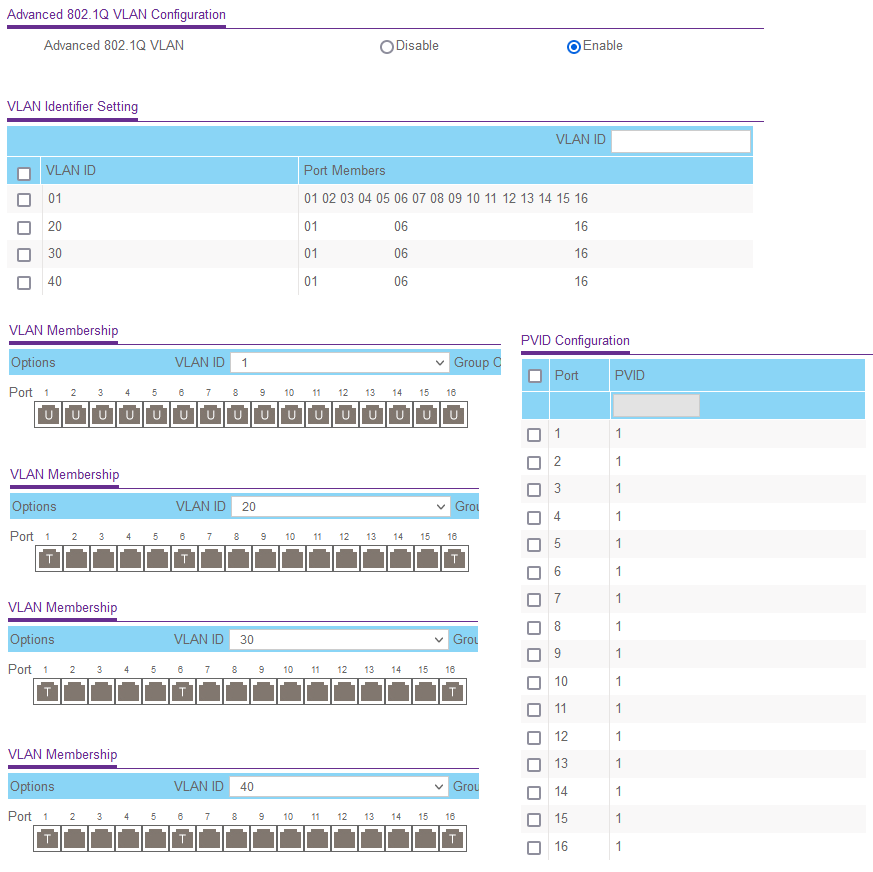

For example, here are the main GS116 VLAN settings:

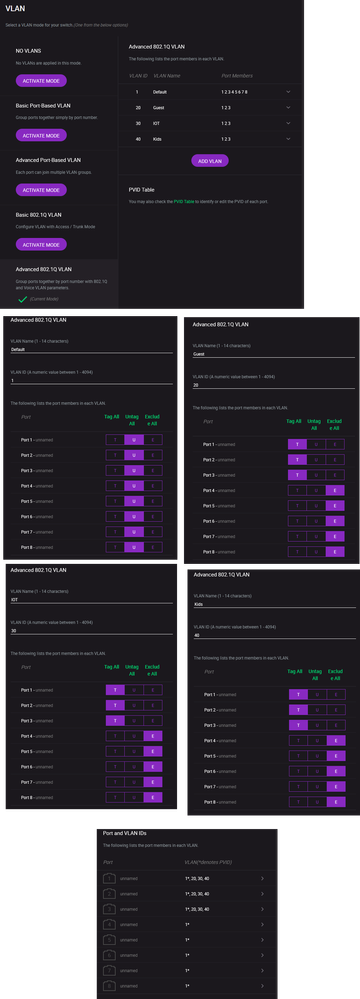

Here are the settings from the GS105ep:

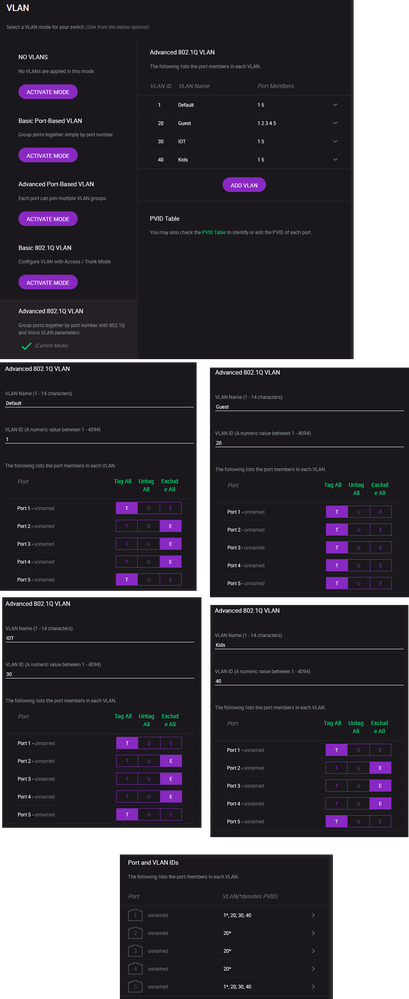

And here are the settings from the GS308EPP:



I essentially want 1) all the wireless AP's to get all four VLANs (1,20,30,40, I have a different SSID for each), the TV and Home Theater PC to just get the Guest VLAN (20). Mom's computer and printer to get the default VLAN (1).

How can I do this?

Could you please help me sort out what I should be setting for each of the ports on the netgear switches?

Thanks in advance,

Ari


  • doucettea wrote:

    Router has 4 VLANs configured   Trusted VLAN 1 Guest VLAN 20 IOT VLAN 30 Kids VLAN 40

    All go by one cable to main switch.   192.168.10.0/24 192.168.20.0/24 192.168.30.0/24 192.168.40.0/24

    Main Switch gs116ev2: (port 1 to router, bedroom and unused ports to guest network, other ports to other switches)
    1 Router (Untangle) U T T T
    2 UnRaid File Server U PVID-1
    3 Backup WiFi Router U PVID-1
    4 Empty   U PVID-20
    5 Empty   U PVID-20
    6 Media cabinet (switch) U T T T
    7 Study   U PVID-20
    8 Guest BR   U PVID-20
    9 Kitchen   U PVID-20
    10 Back Patio   U PVID-20
    11 BR2   U PVID-20
    12 BR3   U PVID-20
    13 BR4   U PVID-20
    14 Master Bedroom (switch) U T T T
    15 Office (switch) U T T T
    16 Attic (switch) U T T T

    Media cabinet gs308epp: (want HTPC and TV on guest network, wifi hotspot broadcast one SSID for each VLAN)
    1 Unifi WiFi Hotspot U T T T
    2 HTPC   U PVID-20
    3 TV   U PVID-20
    4 Empty   U PVID-20
    5 Main Switch U T T T

    Office GS105Ev2:
    1 Main Switch U T T T
    2 Dad PC U PVID-1
    3 Kids PC   U PVID-20
    4 Empty       U PVID-40
    5 Empty   U PVID-20

    Master Bedroom GS105Ev2:
    1 Main Switch U T T T
    2 Mom PC U PVID-1
    3 Printer U PVID-1
    4 Empty U PVID-1
    5 Empty U PVID-1

    Attic gs308epp: (wifi hotspots broadcast one SSID for each VLAN)
    1 Main Switch U T T T
    2 Unifi WiFi Hotspot U T T T
    3 Unifi WiFi Hotspot U T T T
    4 Empty   U PVID-20
    5 Empty   U PVID-20
    6 Empty   U PVID-20
    7 Empty   U PVID-20
    8 Empty   U PVID-20




    Looks fine to me, just to complete some PVIDs on Office GS105Ev2 port 3, 4, 5.

9 Replies

Replies have been turned off for this discussion
    • schumaku's avatar
      schumaku
      Guru - Experienced User

      Nothing stripped - in-line images require moderation before these are published.



      Set-up multiple VLANs is rather easy, more cumbersome is having a router able to support multiple network and IP subnetworks, being by port, or by VLAN tags.

  • schumaku's avatar
    schumaku
    Guru - Experienced User

    doucettea wrote:

    Info: I have a home network with a cable modem that goes to an Untangle router, then to a Netgear gs116ev2 switch. From there, it goes to a number of other netgear switches and to Unifi wireless access points.



    I essentially want 1) all the wireless AP's to get all four VLANs (1,20,30,40, I have a different SSID for each),


    UniFi does by default run the primary admin and VLAN untagged.




    doucettea wrote:

    the TV and Home Theater PC to just get the Guest VLAN (20).


    The ports where these connect to must be 20 [U]ntagged, PVID 20 (and nothing else).




    doucettea wrote:

    Mom's computer and printer to get the default VLAN (1).


    The ports where these connect to must be 1 [U]ntagged, PVID 1 (and nothing else).



    • doucettea's avatar
      doucettea
      Aspirant

      Thank you, that gets me pointed in the right direction.

      I'm not clear how to label the ports that go from one switch to another (or to the router), or the ports that have the unifi wifi hotspots on them (all of which broadcast an SSID for each of the four VLANs).

      To try to organize it and make communicating about how to set it up easier, I've put the swiches and their ports in a table with the four VLANs.

      (may appear more clear in the attached image rather than the html table)



      Router has 4 VLANs configured   Trusted VLAN 1 Guest VLAN 20 IOT VLAN 30 Kids VLAN 40

      All go by one cable to main switch. 192.168.10.0/24192.168.20.0/24192.168.30.0/24192.168.40.0/24

      Main Switch gs116ev2: (port 1 to router, bedroom and unused ports to guest network, other ports to other switches)
      1Router (Untangle)UTTT
      2UnRaid File ServerU PVID-1
      3Backup WiFi RouterU PVID-1
      4Empty U PVID-20
      5Empty U PVID-20
      6Media cabinet (switch)UTTT
      7Study U PVID-20
      8Guest BR U PVID-20
      9Kitchen U PVID-20
      10Back Patio U PVID-20
      11BR2 U PVID-20
      12BR3 U PVID-20
      13BR4 U PVID-20
      14Master Bedroom (switch)UTTT
      15Office (switch)UTTT
      16Attic (switch)UTTT

      Media cabinet gs308epp: (want HTPC and TV on guest network, wifi hotspot broadcast one SSID for each VLAN)
      1Unifi WiFi HotspotUTTT
      2HTPC U PVID-20
      3TV U PVID-20
      4Empty U PVID-20
      5Main SwitchUTTT

      Office GS105Ev2:
      1Main SwitchUTTT
      2Dad PCU PVID-1
      3Kids PC U
      4Empty   U
      5Empty U

      Master Bedroom GS105Ev2:
      1Main SwitchUTTT
      2Mom PCU PVID-1
      3PrinterU PVID-1
      4EmptyU PVID-1
      5EmptyU PVID-1

      Attic gs308epp: (wifi hotspots broadcast one SSID for each VLAN)
      1Main SwitchUTTT
      2Unifi WiFi HotspotUTTT
      3Unifi WiFi HotspotUTTT
      4Empty U PVID-20
      5Empty U PVID-20
      6Empty U PVID-20
      7Empty U PVID-20
      8Empty U PVID-20



      Does this look about right? Or what will I still need to change?

      Thanks again,

      Ari

      • schumaku's avatar
        schumaku
        Guru - Experienced User

        doucettea wrote:

        Router has 4 VLANs configured   Trusted VLAN 1 Guest VLAN 20 IOT VLAN 30 Kids VLAN 40

        All go by one cable to main switch.   192.168.10.0/24 192.168.20.0/24 192.168.30.0/24 192.168.40.0/24

        Main Switch gs116ev2: (port 1 to router, bedroom and unused ports to guest network, other ports to other switches)
        1 Router (Untangle) U T T T
        2 UnRaid File Server U PVID-1
        3 Backup WiFi Router U PVID-1
        4 Empty   U PVID-20
        5 Empty   U PVID-20
        6 Media cabinet (switch) U T T T
        7 Study   U PVID-20
        8 Guest BR   U PVID-20
        9 Kitchen   U PVID-20
        10 Back Patio   U PVID-20
        11 BR2   U PVID-20
        12 BR3   U PVID-20
        13 BR4   U PVID-20
        14 Master Bedroom (switch) U T T T
        15 Office (switch) U T T T
        16 Attic (switch) U T T T

        Media cabinet gs308epp: (want HTPC and TV on guest network, wifi hotspot broadcast one SSID for each VLAN)
        1 Unifi WiFi Hotspot U T T T
        2 HTPC   U PVID-20
        3 TV   U PVID-20
        4 Empty   U PVID-20
        5 Main Switch U T T T

        Office GS105Ev2:
        1 Main Switch U T T T
        2 Dad PC U PVID-1
        3 Kids PC   U PVID-20
        4 Empty       U PVID-40
        5 Empty   U PVID-20

        Master Bedroom GS105Ev2:
        1 Main Switch U T T T
        2 Mom PC U PVID-1
        3 Printer U PVID-1
        4 Empty U PVID-1
        5 Empty U PVID-1

        Attic gs308epp: (wifi hotspots broadcast one SSID for each VLAN)
        1 Main Switch U T T T
        2 Unifi WiFi Hotspot U T T T
        3 Unifi WiFi Hotspot U T T T
        4 Empty   U PVID-20
        5 Empty   U PVID-20
        6 Empty   U PVID-20
        7 Empty   U PVID-20
        8 Empty   U PVID-20




        Looks fine to me, just to complete some PVIDs on Office GS105Ev2 port 3, 4, 5.
