Management VLAN

 I can't make change management VLAN form VLAN 1 to VLAN 10, when ever tried to change MGNT VALN am getting error.



SWITCH MODEL : GS724TPV2 prosafe

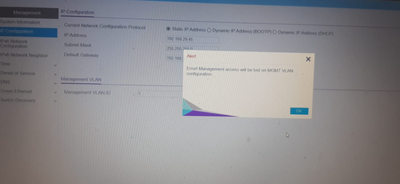

ERROR! MANAGEMENT ACCESS WILL BE LOST ON MGNT VLAN CONFIGURATION





  • Hello MASS_BH_,



    And welcome to the NETGEAR Community! 🙂



    To get rid of that Alert message you need to have at least one port to be a member of the VLAN you want to set as management VLAN. Since you already have VLAN 10 the following are the steps to change management VLAN:



    1. connect your computer to the switch, example: port1
    2. go to Switching - VLAN - Advanced - VLAN Membership
    3. for VLAN1 remove the "U" for any port except port1, example: port7
    4. for VLAN10 toggle port7 to "U"
    5. go to Switching - VLAN - Advanced - Port PVID Configuration
    6. set port7 PVID to 10
    7. change Management VLAN ID to 10



    To manage the switch you should now connect your computer to port7.


    Have a lovely day,
    RennaD
    Netgear Team

2 Replies

  • RennaD's avatar
    RennaD
    NETGEAR Moderator

    Hello MASS_BH_,



    And welcome to the NETGEAR Community! 🙂



    To get rid of that Alert message you need to have at least one port to be a member of the VLAN you want to set as management VLAN. Since you already have VLAN 10 the following are the steps to change management VLAN:



    1. connect your computer to the switch, example: port1
    2. go to Switching - VLAN - Advanced - VLAN Membership
    3. for VLAN1 remove the "U" for any port except port1, example: port7
    4. for VLAN10 toggle port7 to "U"
    5. go to Switching - VLAN - Advanced - Port PVID Configuration
    6. set port7 PVID to 10
    7. change Management VLAN ID to 10



    To manage the switch you should now connect your computer to port7.


    Have a lovely day,
    RennaD
    Netgear Team
