Forum Discussion

ivanmorato's avatar
ivanmorato
Aspirant
Dec 08, 2020

Neighbor Info are not available - ip and mac

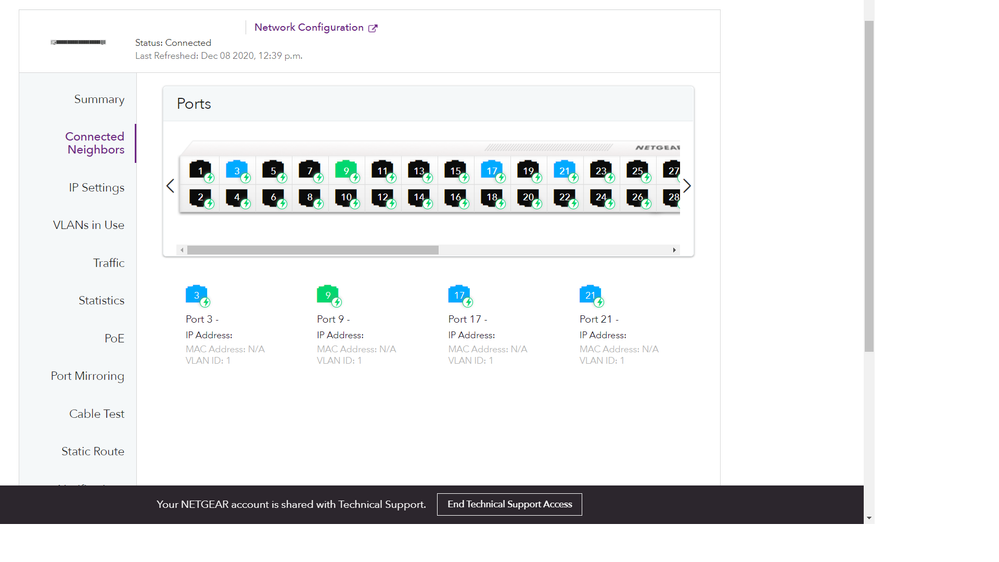

How can I see the IP and MAC of the devices connected to my port?

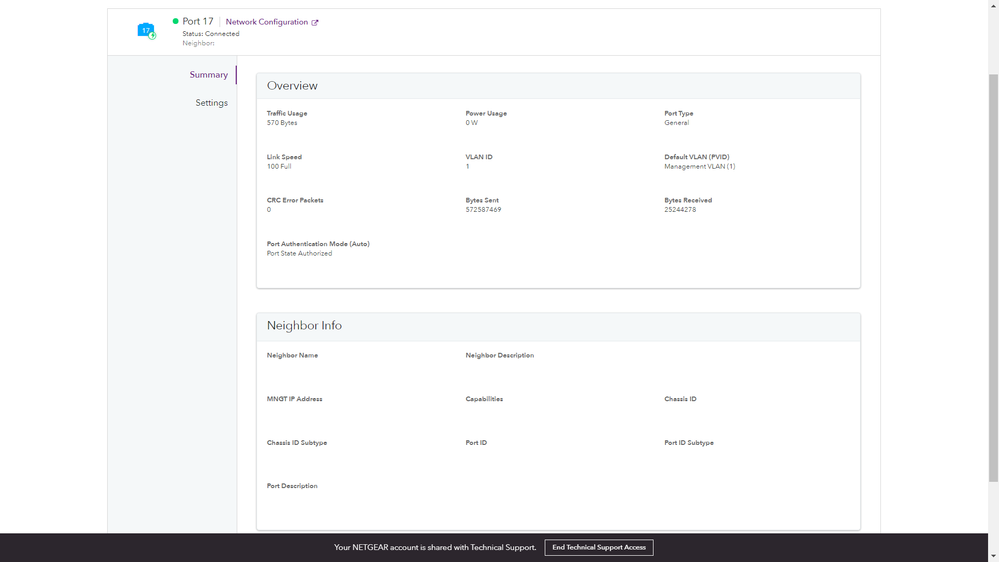

Neighbor Info are not available

15 Replies

    • schumaku's avatar
      schumaku
      Guru - Experienced User

      The Neighbors Information is clearly showing under the System LLDP topic - the data available is sourced from the LLDP-MED, an LLDP extension named Media End Point Discovery.  On Windows 10 / Windows Server 2016 and newer, the LLDP LLDP-MED can be enabled by adapter (interface if you want).



      By rule of thumb, the MAC address cache per VLAN and port/interface should be visible under Switching -> Address Table; the ARP cache is visible under Routing -> ARP.





      • ivanmorato's avatar
        ivanmorato
        Aspirant

        In the LLDP configuration I also cannot see the IP and Mac of the device that is connected to my port.
