Short Netgear GS110TPv3

Question

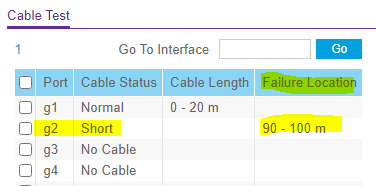

i have connected a CC Camera to port g2, but i see message Short. i am very new to Manage Switches, and i don't understand this.. What does below mean? does it mean cable is faulty at 90-100 meter distance. ?

thanks

Marc_V · Answer

gsatish&nbsp;Welcome to the Community!&nbsp;You are right, The port detected a fault or short circuit or an electrical short exists in the cable. You can check the manual for more information.&nbsp;HTH

schumaku · Answer

The cable test - not to compare with a top of the line RF pulse and reflectometer tester - requires standard compliant cables, and fully terminated end. What is shown there as a short could be caused by certain Fast Ethernet devices, with not full standards compliant random wire grounding at the other end for example.&nbsp;
&nbsp;
Also keep in mind, these are smart switches, by far not fully managed switches.
&nbsp;
If the camera works, does establish a Fast Ethernet or probably a Gigabit Ethernet link, forget about the cable test.

gsatish · Answer

Thank you for your response,&nbsp;&nbsp;But when i have tested with cable tester, the cable is good. i getting response on 8 wires in my Cat6 cable. does it still have fault?

Forum Discussion

Short Netgear GS110TPv3

3 Replies
