VLAN between GS116Ev2 & PowerConnect 6248

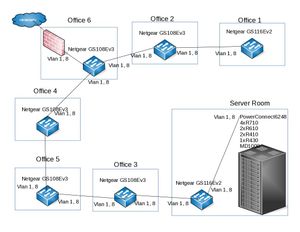

Hello. I have the attached network with netgear vlan config (above) on all the netgear switches. Vlan 1 - 192.168.1 Vlan 8 - 192.168.9 I can ping 192.168.9.1 (FW vlan interface) from any ...
I finally got this working. Didn't have to do anything else with netgear switches. On Dell 62XX switches the management VLAN is 1 and the switch refuses to route that vlan so what you have to is create a bogus vlan, Here is the full 6248 config:
!Current Configuration:
!System Description "PowerConnect 6248, 3.3.15.1, VxWorks 6.5"
!System Software Version 3.3.15.1
!Cut-through mode is configured as disabled
!
configure
vlan database
vlan 8,99
vlan routing 8 1
vlan routing 1 2
exit
hostname "BIGSWITCH1"
sntp server 192.168.1.1
clock summer-time recurring USA zone "PSDT"
clock timezone -8 minutes 0
stack
member 1 2
exit
!
! Right here is where I had to remove the management vlan to bogus VLAN.
!
ip address none
ip address vlan 99
ip domain-name xxxao.com
logging 192.168.1.184
description "remote log server"
exit
!
! According to the 6200 Configuration guide on page 76:
! In order for the VLAN to function as a routing interface,
! you MUST enable routing on the VLAN and ON the switch. This cost me 2 hours.
!
ip routing
ip route 0.0.0.0 0.0.0.0 192.168.1.1
interface vlan 1
routing
ip address 192.168.1.252 255.255.255.0
exit
interface vlan 8
name "iDRAC"
routing
ip address 192.168.9.2 255.255.255.0
exit
username "admin" password <snipped out> level 15 encrypted
line ssh
history size 216
exit
ip ssh server
no spanning-tree
!
! VLAN 1 is default lan---untagged, so have to tag it.
!
interface ethernet 1/g25
description "Port to Netgear."
switchport mode general
switchport general allowed vlan add 8 tagged
switchport general allowed vlan add 1 tagged
exit
!
interface ethernet 1/g28
switchport access vlan 8
exit
!
interface ethernet 1/g37
switchport access vlan 8
exit
enable password <snip> encrypted
exit
Are the trunk ports (the ones used for the switch daisy chain - poor users in the lower numbered offices) and the one to the other switch configured as VLAN trunk ports with all VLAN tagged?
All the netgears VLAN are configured the same as the GS116Ev2
Show the VLAN Memberships page for VLAN 1 and 8 on the Netgear switches.
I finally got this working. Didn't have to do anything else with netgear switches. On Dell 62XX switches the management VLAN is 1 and the switch refuses to route that vlan so what you have to is create a bogus vlan, Here is the full 6248 config:
!Current Configuration:
!System Description "PowerConnect 6248, 3.3.15.1, VxWorks 6.5"
!System Software Version 3.3.15.1
!Cut-through mode is configured as disabled
!
configure
vlan database
vlan 8,99
vlan routing 8 1
vlan routing 1 2
exit
hostname "BIGSWITCH1"
sntp server 192.168.1.1
clock summer-time recurring USA zone "PSDT"
clock timezone -8 minutes 0
stack
member 1 2
exit
!
! Right here is where I had to remove the management vlan to bogus VLAN.
!
ip address none
ip address vlan 99
ip domain-name xxxao.com
logging 192.168.1.184
description "remote log server"
exit
!
! According to the 6200 Configuration guide on page 76:
! In order for the VLAN to function as a routing interface,
! you MUST enable routing on the VLAN and ON the switch. This cost me 2 hours.
!
ip routing
ip route 0.0.0.0 0.0.0.0 192.168.1.1
interface vlan 1
routing
ip address 192.168.1.252 255.255.255.0
exit
interface vlan 8
name "iDRAC"
routing
ip address 192.168.9.2 255.255.255.0
exit
username "admin" password <snipped out> level 15 encrypted
line ssh
history size 216
exit
ip ssh server
no spanning-tree
!
! VLAN 1 is default lan---untagged, so have to tag it.
!
interface ethernet 1/g25
description "Port to Netgear."
switchport mode general
switchport general allowed vlan add 8 tagged
switchport general allowed vlan add 1 tagged
exit
!
interface ethernet 1/g28
switchport access vlan 8
exit
!
interface ethernet 1/g37
switchport access vlan 8
exit
enable password <snip> encrypted
exit
