Forum Discussion
TuttiPazzo
Jan 22, 2018Aspirant
VLAN between GS116Ev2 & PowerConnect 6248

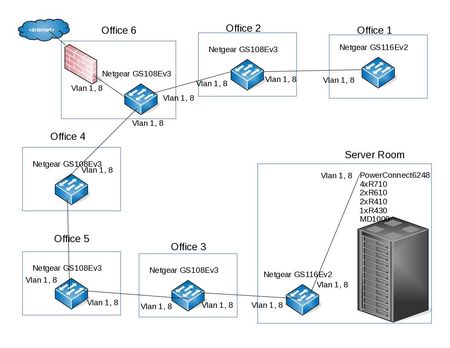

Hello. I have the attached network with netgear vlan config (above) on all the netgear switches. Vlan 1 - 192.168.1 Vlan 8 - 192.168.9 I can ping 192.168.9.1 (FW vlan interface) from any ...
- Jan 31, 2018
I finally got this working. Didn't have to do anything else with netgear switches. On Dell 62XX switches the management VLAN is 1 and the switch refuses to route that vlan so what you have to is create a bogus vlan, Here is the full 6248 config:
!Current Configuration:
!System Description "PowerConnect 6248, 3.3.15.1, VxWorks 6.5"
!System Software Version 3.3.15.1
!Cut-through mode is configured as disabled
!
configure
vlan database
vlan 8,99
vlan routing 8 1
vlan routing 1 2
exit
hostname "BIGSWITCH1"
sntp server 192.168.1.1
clock summer-time recurring USA zone "PSDT"
clock timezone -8 minutes 0
stack
member 1 2
exit
!
! Right here is where I had to remove the management vlan to bogus VLAN.
!
ip address none
ip address vlan 99
ip domain-name xxxao.com
logging 192.168.1.184
description "remote log server"
exit
!
! According to the 6200 Configuration guide on page 76:
! In order for the VLAN to function as a routing interface,
! you MUST enable routing on the VLAN and ON the switch. This cost me 2 hours.
!
ip routing
ip route 0.0.0.0 0.0.0.0 192.168.1.1
interface vlan 1
routing
ip address 192.168.1.252 255.255.255.0
exit
interface vlan 8
name "iDRAC"
routing
ip address 192.168.9.2 255.255.255.0
exit
username "admin" password <snipped out> level 15 encrypted
line ssh
history size 216
exit
ip ssh server
no spanning-tree
!
! VLAN 1 is default lan---untagged, so have to tag it.
!
interface ethernet 1/g25
description "Port to Netgear."
switchport mode general
switchport general allowed vlan add 8 tagged
switchport general allowed vlan add 1 tagged
exit
!
interface ethernet 1/g28
switchport access vlan 8
exit
!
interface ethernet 1/g37
switchport access vlan 8
exit
enable password <snip> encrypted
exit
schumaku
Jan 24, 2018Guru - Experienced User
Show the VLAN Memberships page for VLAN 1 and 8 on the Netgear switches.
TuttiPazzo
Jan 31, 2018Aspirant
I finally got this working. Didn't have to do anything else with netgear switches. On Dell 62XX switches the management VLAN is 1 and the switch refuses to route that vlan so what you have to is create a bogus vlan, Here is the full 6248 config:
!Current Configuration:
!System Description "PowerConnect 6248, 3.3.15.1, VxWorks 6.5"
!System Software Version 3.3.15.1
!Cut-through mode is configured as disabled
!
configure
vlan database
vlan 8,99
vlan routing 8 1
vlan routing 1 2
exit
hostname "BIGSWITCH1"
sntp server 192.168.1.1
clock summer-time recurring USA zone "PSDT"
clock timezone -8 minutes 0
stack
member 1 2
exit
!
! Right here is where I had to remove the management vlan to bogus VLAN.
!
ip address none
ip address vlan 99
ip domain-name xxxao.com
logging 192.168.1.184
description "remote log server"
exit
!
! According to the 6200 Configuration guide on page 76:
! In order for the VLAN to function as a routing interface,
! you MUST enable routing on the VLAN and ON the switch. This cost me 2 hours.
!
ip routing
ip route 0.0.0.0 0.0.0.0 192.168.1.1
interface vlan 1
routing
ip address 192.168.1.252 255.255.255.0
exit
interface vlan 8
name "iDRAC"
routing
ip address 192.168.9.2 255.255.255.0
exit
username "admin" password <snipped out> level 15 encrypted
line ssh
history size 216
exit
ip ssh server
no spanning-tree
!
! VLAN 1 is default lan---untagged, so have to tag it.
!
interface ethernet 1/g25
description "Port to Netgear."
switchport mode general
switchport general allowed vlan add 8 tagged
switchport general allowed vlan add 1 tagged
exit
!
interface ethernet 1/g28
switchport access vlan 8
exit
!
interface ethernet 1/g37
switchport access vlan 8
exit
enable password <snip> encrypted
exit
