wax214 transmit power

Question

Hello all,&nbsp;Just finished setup up a business access point, WAX214, upgraded the firmware to current latest, which is v 2.1.1.2.&nbsp;I would like to lower the transmit power. The documentation says I can choose the rating in dB.&nbsp;In the Web interface, I only see 3 choices: Full, Half and Quarter.&nbsp;Why is this different from the documentation? I specifically ordered this model based on the description of the documentation.&nbsp;How to lower the power to below a quarter?&nbsp;Thank youRegards

JeraldM · Answer

flopma,
&nbsp;
Welcome to the community!
&nbsp;
Please disable Auto RF to be able to change the transmit power of the AP in dBm.

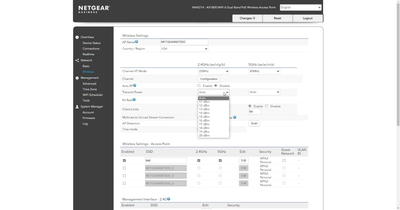

For your reference, kindly check the image below:
&nbsp;

&nbsp;
&nbsp;
Regards,
&nbsp;
JeraldM
NETGEAR Community Team
&nbsp;

flopma · Answer

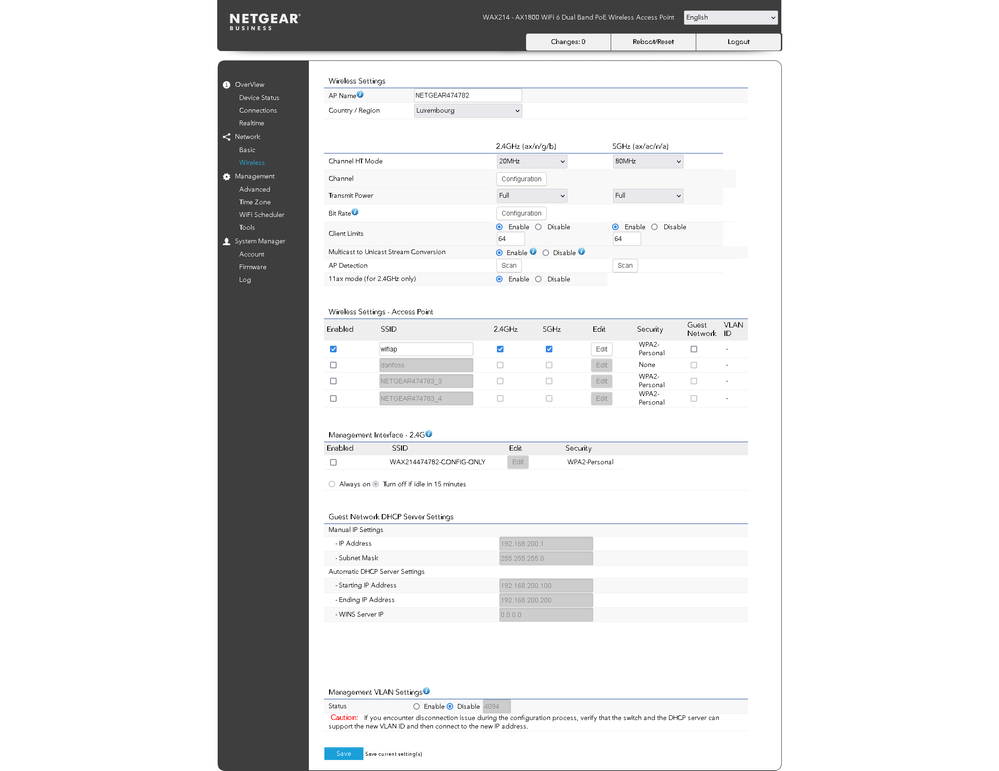

Hey JeraldM , thx for your reply.The device is running firmware v 2.1.1.2 and as you can see below, I don't have this option displayed.&nbsp;&nbsp;

JeraldM · Answer

Hi flopma,
&nbsp;
Just to confirm, your location is Luxembourg and have you tried changing the Country/Region as well?
Also, the latest FW version is v2.1.1.3, might as well consider upgrading its firmware if possible.
&nbsp;
&nbsp;
Regards,
&nbsp;
JeraldM
NETGEAR Community Team

flopma · Answer

I've updated to latest which was released yesterday it seems. Still I don't have the transmit power in dB.Should I reach support? Since the documentation is saying I should see it in dB...Thx

schumaku · Answer

RaghuHR&nbsp;please clarify the difference between the documentation and the Web UI. Thank you!
