WAX630E Power Setting Isn't Honored After Reboot, Fix: Manually Cycle Settings Every Power Cycle

Info:

Model WAX630E

Firmware: V10.8.11.4

Bootloader: U-Boot 2016.01-V10.0.1.18

Power Source: PoE 802.3bt
Managed by: Both local and Insight

Potentially relevant settings:

Multi-Link Operation: Off

802.11k/v: Off

Band Steering: Off

Fast Roaming: Off

Auto-Channel Allocation: Off

Auto-Transmit Power Allocation: Off

Default TX Power: QUARTER

Allow devices to trigger instant wifi: Off

Is:

- Tx power settings aren't respected across AP reboot (Eight/Quarter/Half/Full should mean 17/20/24/27 [or w/e the correct number is] dBm).

- On reboot, GUI will still show the correct Eight/Quarter/Half/Full power setting, but Tx Power will be wrong, usually back up to full power - seems to effect the 2.4 GHz antenna, but I have seen it on the 5GHz also.

- Issue persists both with RF Profile set and direct device configuration set

Should be:

- On reboot, GUI setting should match the same Tx Power in dBm

Tried:

- Factory Resetting

Hope:

- Firmware update to fix?

- Something else to try that doesn't require a work around on power cycle?

To Recreate and Work Around:

1. Set your power settings in Insight or the local management GUI. (I have one AP on Insight and one locally managed to be able to try this on both)

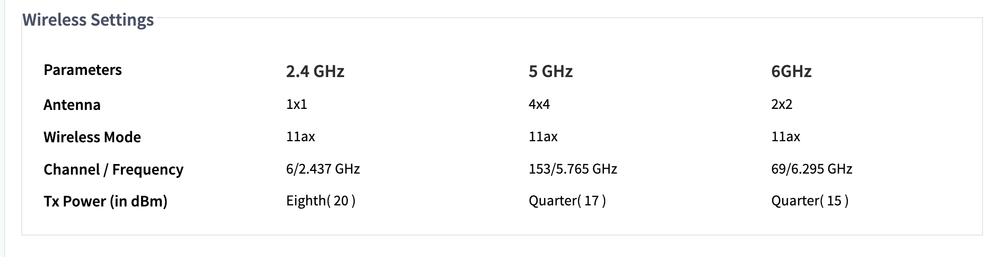

2. Set and confirm the power settings actually took, both Tx Power AND dBm (This is local GUI view):

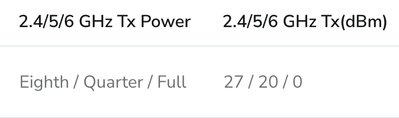

This is Insight view (under the Wireless tab, looking at the device profile:

3. Now reboot the APs and check again - the Tx Power is still set right, but the actual dBm delivered is wrong:

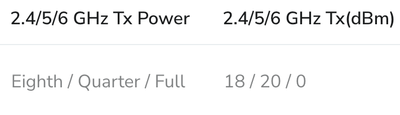

Insight View:

4. Change power for each antenna to something else (Eighth --> Half, Quarter --> Eighth, doesn't matter).

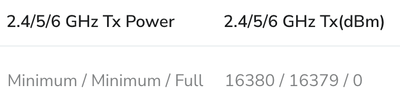

4a. This bothers me less, but if you set the power to "Minimum" you get a bogus number, with any other power setting you get something sane:

5. Apply and wait for the power to change in the GUI

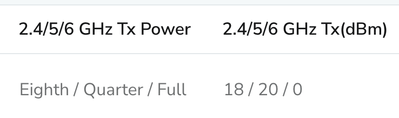

6. Set power back to desired to get the TX power back to where you intended it.

7. Apply and wait, and it should be correct until the next power cycle.
