Forum Discussion
SXR30 very poor performance
After setting this system up we have been having very poor performance with the system. Initially we setup the router and 2 satellites. We found devices did not release from an AP fast enough when ...
We have only a few devices connected to the router wired. But those seem to be fine.
The router is connected to Verizon fiber ONT.
When devices are reporting poor TX/RX speeds between the device and the AP the raw speed to the internet from the router is always consistently above 500 down and up. My main concern is the performance between the AP and a device.
I desktop connected to an AP 5 feet away should have solid performance.
How is it a desktop (mac) 15 to 20 feet away from a different AP in the mesh would showing a FAIR signal, yet TX/RX is 780/6. While a different desktop (mac) 5 feet away from a different AP would be showing a GOOD signal, yet TX/RX is 48/866. These speeds make no sense to me.
so anything running off the router is fine?
Its just off the satellites that you have issues?
One thing you need to keep in mind. the SXK30 is a dual band mesh system and not a triband mesh system.
The tribands have a dedicated wireless backhaul between router-----satellites.
the dual bands don't. so they use the same radio to go router----satellite and then satellite----device. And they can't do both at once.
so even if thats the only device working, they're speed is going to be half of what you're getting from the router.
then you have to take into account other devices using the router/satellite as well as interference, distance, obstructions.
That can drop speed significantly if your satellites aren't in a good location or are to far away.
A lot of people end up using a wired backhaul with them as then they have the dedicated link and much faster speeds. (I've got a set and wired backhaul is awesome with them)
Another thing to keep in mind is the 2.4ghz/5ghz option. that system does bandsteering. meaning that some devices will be connected to 2.4ghz and some to 5ghz. 5ghz is a much much faster network and suffers from less interference. But it doesn't broadcast as far or through as much materials. Make sure to set your 5ghz on the higher 5ghz network and not the lower channels.
what I'd recommend?
- hardwire a laptop into each satellite. Test its speed hardwired as then you can optimize placement without having to workout about the satellite----device link being reduced or sketchy. Plus it ensures your device you're testing on isn't on the slower 2.4ghz network.
- write down the speeds you're actually getting. the link rates might be variable but throughput tends to be 55-65% of link rates. so its better to know your actual speeds than the link rates.
- avoid daisy chaining (daisy chain= router---->satellite---->satellite) you'll get even lower speeds because each hop on a dual band system drops throughput.
- Use the higher 5ghz channels
- you can seperate out the 2.4ghz/5ghz using the multiple ssid option. that lets you set what device is on 2.4ghz/5ghz for testing or even usage
What verizon ont is it? many of them have their own integrated routing functions and it can cause issues.
The actual ONT model I'm not sure of. I'm not on site everyday. But it is just the ONT to the Orbi, there is no Verizon router in place and the ONT is not doing any routing.
We are not in a daisey chain. They are wired, ROUTER ---> SWITCH ---> AP1, same for AP2 when it was turned on. I would expect that would take the backhaul out of the equation. Also in these models I have not found any way to change the 5ghz channel.
The drop down for the 5Ghz is grayed out.
These speeds seem really odd to me, do they seem resonable?
photos can take a bit to be approved.
What switch is in line? If you remove the switch and direct wire in the satellite (For testing), what happens?
it wouldn't be the first time a switch caused issues.As soon as I can get out there I will see about plugging the AP directly into the Orbi.
The switch is a Netgear GS316-EP
Don't know why the pic was not approved.

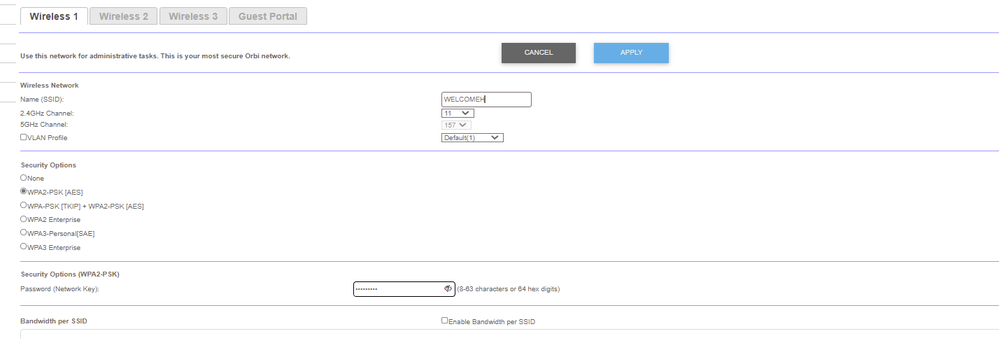

But here is a snippet of what I see.
