Forum Discussion
Solved
RAX20 LAN ports are capped at 100mbs
Hello, my router (info pasted below) does not reliably give me full speed on the LAN ports specifically. I have 900+mb/s to the modem, and if I plug the ethernet cable (cat6) directly into the modem I get my full plan download speed of 500mb/s. If I then route the ethernet cable from modem > router, and plug my computer into the router I'll get 500mb/s once, and then 100mb/s afterwards. If I power cycle the router, I'll get 500mb/s again but then it reverts to 100mb/s. I've tried all 4 ports and the behavior is the same.
| Hardware Version | RAX20 |
| Firmware Version | V1.0.11.112_2.0.77 |
| GUI Language Version | V1.0.11.112_2.1.46.1 |
| Operation Mode | Router |
| CPU Load | CPU1: 5.00% CPU2: 4.44% CPU3: 4.27% CPU4: 1.67% |
| Memory Usage(Used/Total) | 333MB/497MB |
| Flash Usage(Used/Total) | 110.43MB/256.00MB |
| System Uptime | 0 days 19:14:39 |
Be sure the ethernet drivers are up to date as well.
The RAX only supports up to 1Gb connection rates so you might set a manual connection rate on the adapter for 1Gb only.Please mark your thread as solved so others will know. Be sure to save off a back up configuration to file for safe keeping. Saves time if a reset is needed.
https://kb.netgear.com/24231/How-do-I-back-up-the-router-configuration-settings-on-my-Nighthawk-router
Enjoy. 📡
7 Replies

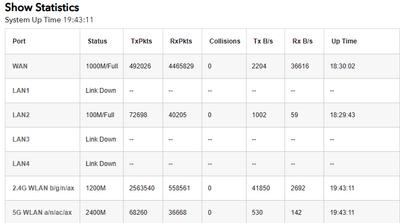

What does the speed indicate on the routers web page under Advanced tab/Show Stats button.
Look at the connection rate for the LAN ports that have connected devices here.What is the Mfr and model# of the Internet Service Providers modem/ONT the NG router is connected too?
Be sure your using a good quality LAN cable between the modem and router. CAT6 is recommended.The LAN port shows a speed of 100M
I am using a CAT6 cable, and when using that same cable directly from the modem I get 500mb/s. I have fiber internet from Surf and the modem is a :
UFiber loco m/n UF-LOCO. Thanks for the quick reply.
What is the devices connected at LAN2?
Does this happen if you switch to other LAN ports?
Do you have another ethernet supported device to help test with to compare?
