Forum Discussion

wingbike's avatar
wingbike
Aspirant
Jul 28, 2025

My downstream LED went out a few days ago but the CM3000 is fully functional

I as well have the Xfinity Gigabit X2 plan. My downstream LED went out a few days ago but the CM3000 is fully functional and all 32 downstream channels are locked.

I installed this modem on 1/15/2025 and has been working fine for 6 Months. However, a few weeks ago my online LED went out and a few weeks later it came back on and now only the Downstream is out.

I don't know what is going on. One would think if a LED is burnt out it would never come back on ever.

10 Replies

  • FURRYe38's avatar
    FURRYe38
    Guru - Experienced User

    What firmware version is on the CM3000 modem?



    Has a power OFF of the modem for 1 minute then back ON been performed?



    Please post a copy and paste of the modems connection status and event log page.
    https://kb.netgear.com/30007/How-do-I-obtain-the-cable-connection-information-from-a-NETGEAR-cable-modem-modem-router
    https://kb.netgear.com/30008/How-do-I-view-or-clear-the-event-logs-on-my-NETGEAR-cable-modem-or-modem-router

    Be sure your using a good quality LAN cable between the modem and router. CAT6 is recommended.
    What is the brand and model of the host wifi router connected to the modem?

  • Thanks, I didn't know there was a reply.

    Xfinity X2 service 2GIG,

    I'm presently connected via the router 1G LAN input.



    Firmware Version V5.01.02

    It's strange yesterday the downstream came back on and this morning the online was out but now ow all the LED's are on.

    The host router id TP=Link DECOXE75 Pro.

    Yes, the cable in question is a 6' yellow CAT6 cable I was not really using the system yesterday. Also all LED's are working.

    I will paste most of the cable connection as requested.

    I do use a VPN most of the time but I have to disable it to supply this data.

    As you can see my speeds are good. I have at times connected my pc to a satellite 2.5G LAN input to obtain about 1.7G download speeds via wireless to the main router.

    I just noticed the downstream LED is out again.

    I'm hesitant to supply the event log because it contains MAC addresses.

    Apparently, it only lets me attach one image.





    • FURRYe38's avatar
      FURRYe38
      Guru - Experienced User

      Ok, making sure your on v5 FW. There are known issues on v6 FW.



      Edit out the MAC addresses.

  • TimePriorityDescription
    Wed Jul 30 09:36:15 2025(Critical (3))Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=;CMTS-MAC=;CM-QOS=1.1;CM-VER=3.1;
    Wed Jul 30 08:55:11 2025(Notice (6))CM-STATUS message sent. Event Type Code: 4; Chan ID: 13 15 17 19 21 24 25 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 193 194; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: N/A.;CM-MAC=;CMTS-MAC=;CM-QOS=1.1;CM-VER=3.1;
    Wed Jul 30 08:54:55 2025(Warning (5))MDD message timeout;CM-MAC=;CMTS-MAC=;CM-QOS=1.1;CM-VER=3.1;
    Wed Jul 30 08:54:52 2025(Critical (3))Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=;CMTS-MAC=;CM-QOS=1.1;CM-VER=3.1;
    Wed Jul 30 07:32:29 2025(Notice (6))CM-STATUS message sent. Event Type Code: 24; Chan ID: 193; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2 3.;CM-MAC=;CMTS-MAC=;CM-QOS=1.1;CM-VER=3.1;
    Wed Jul 30 07:24:45 2025(Notice (6))CM-STATUS message sent. Event Type Code: 16; Chan ID: 193; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 3.;CM-MAC=;CMTS-MAC=;CM-QOS=1.1;CM-VER=3.1;
    Wed Jul 30 07:22:10 2025(Notice (6))US profile assignment change. US Chan ID: 41; Previous Profile: 12 13; New Profile: 10 13.;CM-MAC=;CMTS-MAC=;CM-QOS=1.1;CM-VER=3.1;
    Wed Jul 30 06:31:25 2025(Critical (3))Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=;CMTS-MAC=;CM-QOS=1.1;CM-VER=3.1;
    Wed Jul 30 06:22:55 2025(Notice (6))US profile assignment change. US Chan ID: 41; Previous Profile: 10 13; New Profile: 12 13.;CM-MAC=;CMTS-MAC=;CM-QOS=1.1;CM-VER=3.1;
    Wed Jul 30 06:02:55 2025(Notice (6))US profile assignment change. US Chan ID: 41; Previous Profile: 12 13; New Profile: 10 13.;CM-MAC=;CMTS-MAC=;CM-QOS=1.1;CM-VER=3.1;
    Wed Jul 30 05:45:38 2025(Critical (3))Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=;CMTS-MAC=;CM-QOS=1.1;CM-VER=3.1;
    Tue Jul 29 22:20:10 2025(Notice (6))CM-STATUS message sent. Event Type Code: 24; Chan ID: 193; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2 3.;CM-MAC=;CMTS-MAC=;CM-QOS=1.1;CM-VER=3.1;
    Tue Jul 29 22:15:06 2025(Notice (6))CM-STATUS message sent. Event Type Code: 16; Chan ID: 193; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 1 2 3.;CM-MAC=;CMTS-MAC=;CM-QOS=1.1;CM-VER=3.1;
    Tue Jul 29 22:15:04 2025(Notice (6))CM-STATUS message sent. Event Type Code: 16; Chan ID: 193; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 2 3.;CM-MAC=;CMTS-MAC=;CM-QOS=1.1;CM-VER=3.1;
    Tue Jul 29 22:15:00 2025(Notice (6))CM-STATUS message sent. Event Type Code: 16; Chan ID: 193; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: 3.;CM-MAC=;CMTS-MAC=;CM-QOS=1.1;CM-VER=3.1;
    Tue Jul 29 21:45:49 2025(Critical (3))Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=;CMTS-MAC=;CM-QOS=1.1;CM-VER=3.1;
    Tue Jul 29 20:53:40 2025(Notice (6))US profile assignment change. US Chan ID: 41; Previous Profile: 11 13; New Profile: 12 13.;CM-;CMTS-MAC=;CM-QOS=1.1;CM-VER=3.1;
    Tue Jul 29 20:44:10 2025(Notice (6))US profile assignment change. US Chan ID: 41; Previous Profile: 12 13; New Profile: 11 13.;CM-MAC=;CMTS-MAC=;CM-QOS=1.1;CM-VER=3.1;
    Tue Jul 29 20:41:49 2025(Critical (3))Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=;CMTS-MAC=;CM-QOS=1.1;CM-VER=3.1;
    Tue Jul 29 20:17:10 2025(Notice (6))US profile assignment change. US Chan ID: 41; Previous Profile: 11 13; New Profile: 12 13.;CM-MAC=;CMTS-MAC=;CM-QOS=1.1;CM-VER=3.1;
    Tue Jul 29 20:12:10 2025(Notice (6))US profile assignment change. US Chan ID: 41; Previous Profile: 12 13; New Profile: 11 13.;CM-MAC=;CMTS-MAC=;CM-QOS=1.1;CM-VER=3.1;
    Tue Jul 29 19:52:10 2025(Notice (6))US profile assignment change. US Chan ID: 41; Previous Profile: 10 13; New Profile: 12 13.;CM-MAC=;CMTS-MAC=;CM-QOS=1.1;CM-VER=3.1;
    Tue Jul 29 18:52:10 2025(Notice (6))US profile assignment change. US Chan ID: 41; Previous Profile: 12 13; New Profile: 10 13.;CM-MAC=;CMTS-MAC=;CM-QOS=1.1;CM-VER=3.1;
    Tue Jul 29 18:32:10 2025(Notice (6))US profile assignment change. US Chan ID: 41; Previous Profile: 10 13; New Profile: 12 13.;CM-MAC=;CMTS-MAC=;CM-QOS=1.1;CM-VER=3.1;
    Tue Jul 29 18:15:01 2025(Critical (3))Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=;CMTS-MAC=;CM-QOS=1.1;CM-VER=3.1;
    Tue Jul 29 17:23:53 2025(Notice (6))CM-STATUS message sent. Event Type Code: 8; Chan ID: 1; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: N/A.;CM-MAC=;CMTS-MAC=;CM-QOS=1.1;CM-VER=3.1;
    Tue Jul 29 17:23:47 2025(Critical (3))16 consecutive T3 timeouts while trying to range on upstream channel 2;CM-MAC=;CMTS-MAC=;CM-QOS=1.1;CM-VER=3.1;
    Tue Jul 29 17:23:47 2025(Critical (3))Unicast Maintenance Ranging attempted - No response - Retries exhausted;CM-MAC=;CMTS-MAC=;CM-QOS=1.1;CM-VER=3.1;
    Tue Jul 29 17:23:47 2025(Critical (3))Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=;CMTS-MAC=;CM-QOS=1.1;CM-VER=3.1;
    Tue Jul 29 15:50:09 2025(Notice (6))CM-STATUS message sent. Event Type Code: 8; Chan ID: 1; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: N/A.;CM-MAC=;CMTS-MAC=;CM-QOS=1.1;CM-VER=3.1;
    Tue Jul 29 15:49:55 2025(Critical (3))16 consecutive T3 timeouts while trying to range on upstream channel 2;CM-MAC=;CMTS-MAC=;CM-QOS=1.1;CM-VER=3.1;
    Tue Jul 29 15:49:55 2025(Critical (3))Unicast Maintenance Ranging attempted - No response - Retries exhausted;CM-MAC=;CMTS-MAC=;CM-QOS=1.1;CM-VER=3.1;
    Tue Jul 29 15:49:55 2025(Critical (3))Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=;CMTS-MAC=;CM-QOS=1.1;CM-VER=3.1;
    Tue Jul 29 15:36:19 2025(Notice (6))CM-STATUS message sent. Event Type Code: 8; Chan ID: 1; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: N/A.;CM-MAC=;CMTS-MAC=;CM-QOS=1.1;CM-VER=3.1;
    Tue Jul 29 15:36:08 2025(Critical (3))16 consecutive T3 timeouts while trying to range on upstream channel 2;CM-MAC=;CMTS-MAC=;CM-QOS=1.1;CM-VER=3.1;
    Tue Jul 29 15:36:08 2025(Critical (3))Unicast Maintenance Ranging attempted - No response - Retries exhausted;CM-MAC=;CMTS-MAC=;CM-QOS=1.1;CM-VER=3.1;
    Tue Jul 29 15:36:08 2025(Critical (3))Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=;CMTS-MAC=;CM-QOS=1.1;CM-VER=3.1;
    Tue Jul 29 07:27:28 2025(Notice (6))CM-STATUS message sent. Event Type Code: 8; Chan ID: 1; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: N/A.;CM-MAC=;CMTS-MAC=;CM-QOS=1.1;CM-VER=3.1;
    Tue Jul 29 07:27:04 2025(Warning (5))Dynamic Range Window violation
    Tue Jul 29 07:27:04 2025(Warning (5))RNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=;CMTS-MAC=;CM-QOS=1.1;CM-VER=3.1;

    • FURRYe38's avatar
      FURRYe38
      Guru - Experienced User

      Any Criticals, Errors or Warnings seen in the event logs needs to be reviewed and resolved by the ISP. Indicates a signal issue on the ISP line up to the modem.



      Please post a copy and paste of the modems connection status log page.


  • Thanks, FURRYe38

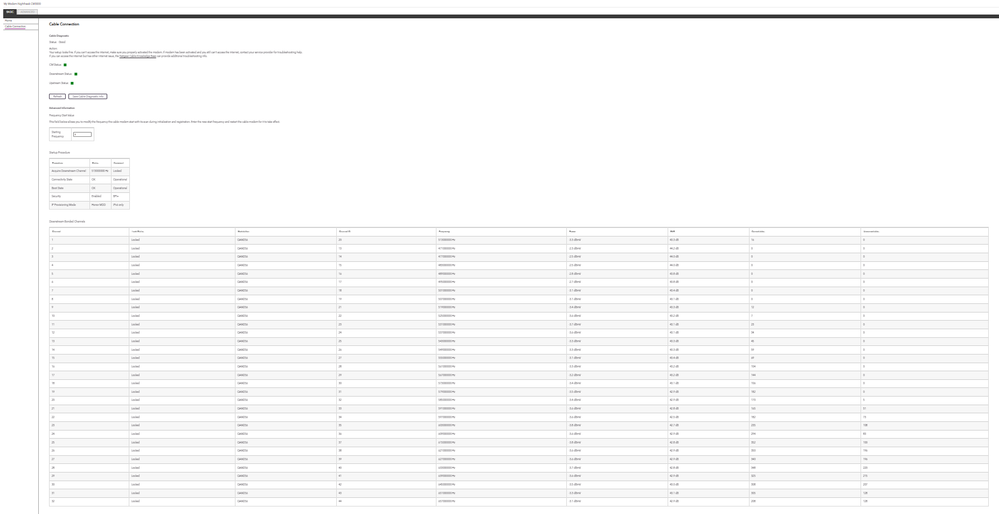

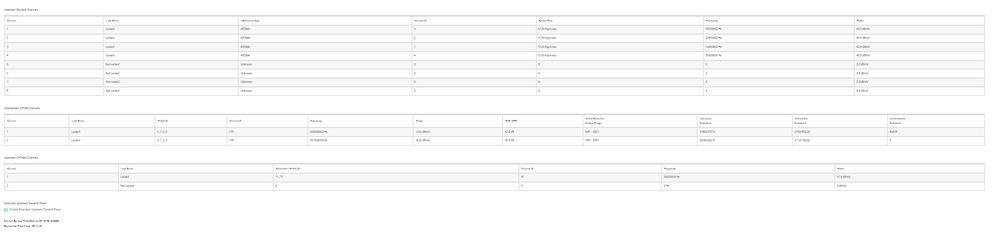

    Hopefully you received the (2) screenshots I sent.

    I just rebooted the modem and the online LED is off or very dimly lit.



    wingbike

    • FURRYe38's avatar
      FURRYe38
      Guru - Experienced User

      Ya screen captures appear however the text is so tiny, I can't make anything out. Can you select with the mouse cursor and highlight the data on the page and then paste it into your next post?

      wingbike​

      • wingbike's avatar
        wingbike
        Aspirant

        Thanks FURRYe38,

        There was a cable save on the CM3000 web page. I will paste it. When I saved it the downstream and online LED's were both out. They stayed out for several hours only flashing once or twice. Later in the day the downstream came back on but the online is still out. Yesterday I rebooted the modem, and the online LED never came on during boot up and stayed out.

        It's very strange how the modem can be fully functional, and the modem status page looks good. I never saw a flaky LED so it must be an internal led driver etc., unless it's a bad surface mount soldering.



        Cable Diagnostic

        Status: Good

        Action:
        Your setup looks fine. If you can't access the internet, make sure you properly activated the modem. If modem has been activated and you still can't access the internet, contact your service provider for troubleshooting help.
        If you can access the internet but has other internet issue, the Netgear Cable Knowledge Base can provide additional troubleshooting info.

        CM Status: Good

        Downstream Status: Good

            Downstream Power Level: Good

            Downstream SNR Level: Good

        Upstream Status: Good

            Upstream Power Level: Good


        Current Time: Sat Aug 02 08:24:49 2025

        Startup Procedure
        Acquire Downstream Channel: 513000000 Hz  Locked
        Connectivity State:          OK       Operational
        Boot State:                  OK       Operational
        Security:                   Enabled   BPI+
        IP Provisioning Mode:       Honor MDD   IPv6 only


        Downstream Bonded Channels
        Channel LockedStatus Modulation ChannelID  Frequency     Power    SNR   Correctables Uncorrectables
              1     Locked     QAM256     20     513000000 Hz     -1     43.4     0     0
              2     Locked     QAM256     13     471000000 Hz     -0.1     44.3     0     0
              3     Locked     QAM256     14     477000000 Hz     -0.3     44.2     0     0
              4     Locked     QAM256     15     483000000 Hz     -0.3     44.2     0     0
              5     Locked     QAM256     16     489000000 Hz     -0.5     44     0     0
              6     Locked     QAM256     17     495000000 Hz     -0.5     44     0     0
              7     Locked     QAM256     18     501000000 Hz     -0.9     43.6     0     0
              8     Locked     QAM256     19     507000000 Hz     -0.8     43.5     0     0
              9     Locked     QAM256     21     519000000 Hz     -1     43.7     0     0
             10     Locked     QAM256     22     525000000 Hz     -1.1     43.7     0     0
             11     Locked     QAM256     23     531000000 Hz     -1.1     43.7     0     0
             12     Locked     QAM256     24     537000000 Hz     -1.1     43.6     0     0
             13     Locked     QAM256     25     543000000 Hz     -1     43.6     0     0
             14     Locked     QAM256     26     549000000 Hz     -1     43.6     0     0
             15     Locked     QAM256     27     555000000 Hz     -0.8     43.7     0     0
             16     Locked     QAM256     28     561000000 Hz     -1     43.5     0     0
             17     Locked     QAM256     29     567000000 Hz     -0.9     43.6     0     0
             18     Locked     QAM256     30     573000000 Hz     -1     43.5     0     0
             19     Locked     QAM256     31     579000000 Hz     -1.1     43.1     0     0
             20     Locked     QAM256     32     585000000 Hz     -1     43.2     0     0
             21     Locked     QAM256     33     591000000 Hz     -1.2     43.3     0     0
             22     Locked     QAM256     34     597000000 Hz     -1.1     43.2     0     0
             23     Locked     QAM256     35     603000000 Hz     -1.3     43.2     0     0
             24     Locked     QAM256     36     609000000 Hz     -1.2     43.4     0     0
             25     Locked     QAM256     37     615000000 Hz     -1.3     43.2     0     0
             26     Locked     QAM256     38     621000000 Hz     -1.1     43.3     0     0
             27     Locked     QAM256     39     627000000 Hz     -1.1     43.3     0     0
             28     Locked     QAM256     40     633000000 Hz     -1.3     43.2     0     0
             29     Locked     QAM256     41     639000000 Hz     -1.1     43.3     0     0
             30     Locked     QAM256     42     645000000 Hz     -1     43.4     0     0
             31     Locked     QAM256     43     651000000 Hz     -0.7     43.5     0     0
             32     Locked     QAM256     44     657000000 Hz     -0.6     43.2     0     0

        Upstream Bonded Channels
        Channel   LockedStatus  ChannelType ChannelID   SymbolRate        Frequency       Power
              1       Locked       ATDMA      1       5120 Ksym/sec       16400000 Hz       43.5 dBmV
              2       Locked       ATDMA      2       5120 Ksym/sec       22800000 Hz       43.0 dBmV
              3       Locked       ATDMA      3       5120 Ksym/sec       29200000 Hz       42.8 dBmV
              4       Locked       ATDMA      4       5120 Ksym/sec       35600000 Hz       42.5 dBmV
              5       Not Locked       Unknown      0       0       0       0.0
              6       Not Locked       Unknown      0       0       0       0.0
              7       Not Locked       Unknown      0       0       0       0.0
              8       Not Locked       Unknown      0       0       0       0.0

        Downstream OFDM Channels
        Channel   LockedStatus  ProfileID  ChannelID    Frequency       Power       SNR/MER    ActiveSubcarrier    Unerror    Correctable   Uncorrectable
              1     Locked     0 ,1 ,2 ,3     193     690000000 Hz     -1.52 dBmV     42.4 dB     568 ~ 3527     643212108     556193356     212735
              2     Locked     0 ,1 ,2 ,3     194     957000000 Hz     -4.52 dBmV     40.7 dB     148 ~ 3947     645522314     579525469     0

        Upstream OFDMA Channels
        Channel   LockedStatus    ProfileID    ChannelID    Frequency       Power
              1     Locked     12 ,13     41     36200000 Hz     35.8 dBmV
              2     Not Locked     0      0     0 Hz     0 dBmV
