Forum Discussion
Infosec_stoic
Mar 22, 2021Aspirant
Ping Spikes and dropped packets
Hey guys!
So this started about 4-5 days ago where my nighthawk C7000V2 (Firmware V1.03.01) would intermittently have massive packet spikes and dropped packets. This isn't just with gaming . Since I work in IT (on the information security side) I do a lot of work from home. As of right now some of my work has begun to suffer due to these high packet spikes and dropped packets (especially with security based applications like splunk). I'm constantly cutting out in meetings or I'm just dropping out altogether. Typically, I can normally fix most networking issues myself. However, this one seems to baffle me since I've never seen packet spikes like this. The packet spikes seem to occur every couple second’s ranging anywhere from 7 to 8 milliseconds all the way up to 2000 milliseconds and the occasional loss. The losses occur more frequently when I am involved in a virtual meetings, listening to music/videos, and gaming. not sure if this is an issue with the router/modem or my ISP. Ive contacted the ISP and they report no outages but im still not convinced (its a local power/water/and internet company) I have yet to try a factory reset on the device however I wanted to reach out and see if there was a solution prior to doing this. I will provide ping logs both wired and Wireless. Let me know if you need and thing else.
Wireless:
Reply from 192.168.0.1: bytes=32 time=8ms TTL=64
Reply from 192.168.0.1: bytes=32 time=18ms TTL=64
Reply from 192.168.0.1: bytes=32 time=10ms TTL=64
Reply from 192.168.0.1: bytes=32 time=10ms TTL=64
Reply from 192.168.0.1: bytes=32 time=63ms TTL=64
Reply from 192.168.0.1: bytes=32 time=1876ms TTL=64
Reply from 192.168.0.1: bytes=32 time=64ms TTL=64
Reply from 192.168.0.1: bytes=32 time=9ms TTL=64
Reply from 192.168.0.1: bytes=32 time=12ms TTL=64
Reply from 192.168.0.1: bytes=32 time=9ms TTL=64
Reply from 192.168.0.1: bytes=32 time=9ms TTL=64
Reply from 192.168.0.1: bytes=32 time=9ms TTL=64
Reply from 192.168.0.1: bytes=32 time=10ms TTL=64
Reply from 192.168.0.1: bytes=32 time=25ms TTL=64
Reply from 192.168.0.1: bytes=32 time=8ms TTL=64
Reply from 192.168.0.1: bytes=32 time=8ms TTL=64
Reply from 192.168.0.1: bytes=32 time=15ms TTL=64
Request timed out.
Reply from 192.168.0.1: bytes=32 time=1155ms TTL=64
Reply from 192.168.0.1: bytes=32 time=29ms TTL=64
Reply from 192.168.0.1: bytes=32 time=8ms TTL=64
Reply from 192.168.0.1: bytes=32 time=8ms TTL=64
Reply from 192.168.0.1: bytes=32 time=9ms TTL=64
Reply from 192.168.0.1: bytes=32 time=11ms TTL=64
Ping statistics for 192.168.0.1:
Packets: Sent = 120, Received = 119, Lost = 1 (0% loss),
Approximate round trip times in milli-seconds:
Minimum = 5ms, Maximum = 1925ms, Average = 130ms
Wired:
Reply from 192.168.0.1: bytes=32 time=8ms TTL=64
Reply from 192.168.0.1: bytes=32 time=8ms TTL=64
Reply from 192.168.0.1: bytes=32 time=18ms TTL=64
Reply from 192.168.0.1: bytes=32 time=1894ms TTL=64
Reply from 192.168.0.1: bytes=32 time=36ms TTL=64
Reply from 192.168.0.1: bytes=32 time=7ms TTL=64
Reply from 192.168.0.1: bytes=32 time=7ms TTL=64
Reply from 192.168.0.1: bytes=32 time=7ms TTL=64
Reply from 192.168.0.1: bytes=32 time=8ms TTL=64
Reply from 192.168.0.1: bytes=32 time=7ms TTL=64
Reply from 192.168.0.1: bytes=32 time=7ms TTL=64
Reply from 192.168.0.1: bytes=32 time=8ms TTL=64
Reply from 192.168.0.1: bytes=32 time=15ms TTL=64
Reply from 192.168.0.1: bytes=32 time=9ms TTL=64
Reply from 192.168.0.1: bytes=32 time=8ms TTL=64
Reply from 192.168.0.1: bytes=32 time=8ms TTL=64
Reply from 192.168.0.1: bytes=32 time=7ms TTL=64
Reply from 192.168.0.1: bytes=32 time=7ms TTL=64
Reply from 192.168.0.1: bytes=32 time=9ms TTL=64
Reply from 192.168.0.1: bytes=32 time=1923ms TTL=64
Reply from 192.168.0.1: bytes=32 time=69ms TTL=64
Reply from 192.168.0.1: bytes=32 time=7ms TTL=64
Reply from 192.168.0.1: bytes=32 time=6ms TTL=64
Reply from 192.168.0.1: bytes=32 time=6ms TTL=64
Reply from 192.168.0.1: bytes=32 time=6ms TTL=64
Reply from 192.168.0.1: bytes=32 time=8ms TTL=64
Reply from 192.168.0.1: bytes=32 time=7ms TTL=64
Reply from 192.168.0.1: bytes=32 time=7ms TTL=64
Reply from 192.168.0.1: bytes=32 time=7ms TTL=64
Reply from 192.168.0.1: bytes=32 time=6ms TTL=64
Reply from 192.168.0.1: bytes=32 time=7ms TTL=64
Reply from 192.168.0.1: bytes=32 time=6ms TTL=64
Reply from 192.168.0.1: bytes=32 time=7ms TTL=64
Reply from 192.168.0.1: bytes=32 time=7ms TTL=64
Reply from 192.168.0.1: bytes=32 time=7ms TTL=64
Reply from 192.168.0.1: bytes=32 time=1988ms TTL=64
Reply from 192.168.0.1: bytes=32 time=15ms TTL=64
Ping statistics for 192.168.0.1:
Packets: Sent = 120, Received = 120, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
Minimum = 6ms, Maximum = 1988ms, Average = 129ms
6 Replies
- plemansGuru - Experienced User

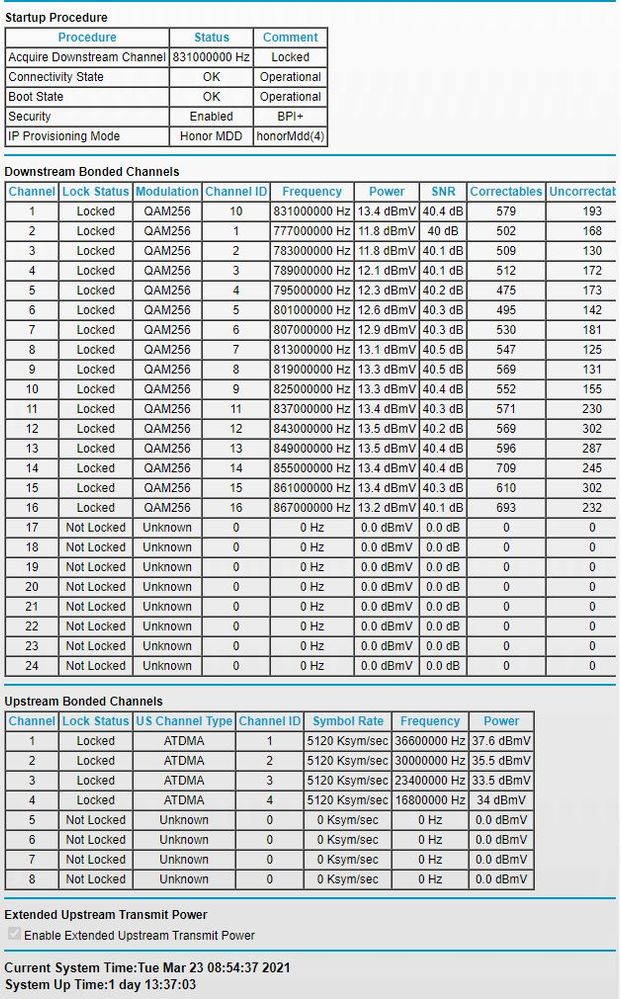

do you have a screen snip of the cable connections page and event logs?
that helps us check the connection back to the isp.
they're great at saying "its not our line".
And it might not be.
Check you coax line for kinks, bad/old/loose connectors, moisture in the line, etc.
Also, if you have any splitters, amplifiers, or attenuators, remove them from the line. preferable, directly connect the c7000 to where the coax comes into the home to prevent the wiring in the home from being the issue.
- Infosec_stoicAspirant
Hello! thank you for getting back to me.
I went ahead and I checked the coax connection to the C7000V2. I even double checked the outside cable line to make sure that there wasn't any damage to the outside box. Doesn't appear to be anything out of the ordinary. I just have the one coaxial connection directly to the modem/router no other splitters, amplifiers, or attenuators.
Here's the output from the event logs below kind of a bummer they don't have a export option so a copy and paste will have to do.
Time
Priority Description 2021-3-23, 09:01:12 Warning (5) MDD message timeout;CM-MAC=44:a5:6e:83:05:48;CMTS-MAC=00:27:90:0c:d0:7c;CM-QOS=1.1;CM-VER=3.0; 2021-3-22, 13:55:59 Critical (3) Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=44:a5:6e:83:05:48;CMTS-MAC=00:27:90:0c:d0:7c;CM-QOS=1.1;CM-VER=3.0; 2021-3-22, 13:55:20 Error (4) Improper Configuration File CVC Format 2021-3-22, 13:55:12 Notice (6) TLV-11 - unrecognized OID;CM-MAC=44:a5:6e:83:05:48;CMTS-MAC=00:27:90:0c:d0:7c;CM-QOS=1.1;CM-VER=3.0; 2021-3-22, 13:55:10 Warning (5) DHCP WARNING - Non-critical field invalid in response ;CM-MAC=44:a5:6e:83:05:48;CMTS-MAC=00:27:90:0c:d0:7c;CM-QOS=1.1;CM-VER=3.0; 2021-3-22, 13:55:02 Notice (6) Honoring MDD; IP provisioning mode = IPv4 2021-3-22, 13:55:01 Critical (3) Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=44:a5:6e:83:05:48;CMTS-MAC=00:27:90:0c:d0:7c;CM-QOS=1.0;CM-VER=3.0; 2021-3-22, 13:54:43 Critical (3) SYNC Timing Synchronization failure - Failed to acquire QAM/QPSK symbol timing;;CM-MAC=44:a5:6e:83:05:48;CMTS-MAC=00:00:00:00:00:00;CM-QOS=1.0;CM-VER=3.0; 2021-3-22, 13:54:42 Critical (3) SYNC Timing Synchronization failure - Failed to acquire FEC framing;CM-MAC=44:a5:6e:83:05:48;CMTS-MAC=00:00:00:00:00:00;CM-QOS=1.0;CM-VER=3.0; 2021-3-22, 13:54:41 Critical (3) Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=44:a5:6e:83:05:48;CMTS-MAC=00:27:90:0c:d0:7c;CM-QOS=1.1;CM-VER=3.0; 2021-3-22, 13:54:18 Critical (3) SYNC Timing Synchronization failure - Failed to acquire QAM/QPSK symbol timing;;CM-MAC=44:a5:6e:83:05:48;CMTS-MAC=00:27:90:0c:d0:7c;CM-QOS=1.1;CM-VER=3.0; 2021-3-22, 13:54:16 Critical (3) Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=44:a5:6e:83:05:48;CMTS-MAC=00:27:90:0c:d0:7c;CM-QOS=1.1;CM-VER=3.0; 2021-3-22, 13:54:00 Critical (3) SYNC Timing Synchronization failure - Failed to acquire QAM/QPSK symbol timing;;CM-MAC=44:a5:6e:83:05:48;CMTS-MAC=00:27:90:0c:d0:7c;CM-QOS=1.1;CM-VER=3.0; 2021-3-22, 13:53:58 Critical (3) SYNC Timing Synchronization failure - Failed to acquire FEC framing;CM-MAC=44:a5:6e:83:05:48;CMTS-MAC=00:27:90:0c:d0:7c;CM-QOS=1.1;CM-VER=3.0; 2021-3-22, 13:53:57 Critical (3) Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=44:a5:6e:83:05:48;CMTS-MAC=00:27:90:0c:d0:7c;CM-QOS=1.1;CM-VER=3.0; 2021-3-22, 13:53:37 Critical (3) SYNC Timing Synchronization failure - Failed to acquire QAM/QPSK symbol timing;;CM-MAC=44:a5:6e:83:05:48;CMTS-MAC=00:27:90:0c:d0:7c;CM-QOS=1.1;CM-VER=3.0; 2021-3-22, 13:53:36 Critical (3) Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=44:a5:6e:83:05:48;CMTS-MAC=00:27:90:0c:d0:7c;CM-QOS=1.1;CM-VER=3.0; 2021-3-22, 13:53:35 Critical (3) SYNC Timing Synchronization failure - Failed to acquire QAM/QPSK symbol timing;;CM-MAC=44:a5:6e:83:05:48;CMTS-MAC=00:27:90:0c:d0:7c;CM-QOS=1.1;CM-VER=3.0; 2021-3-22, 13:53:33 Critical (3) SYNC Timing Synchronization failure - Failed to acquire FEC framing;CM-MAC=44:a5:6e:83:05:48;CMTS-MAC=00:27:90:0c:d0:7c;CM-QOS=1.1;CM-VER=3.0; 2021-3-22, 13:52:44 Critical (3) SYNC Timing Synchronization failure - Failed to acquire QAM/QPSK symbol timing;;CM-MAC=44:a5:6e:83:05:48;CMTS-MAC=00:27:90:0c:d0:7c;CM-QOS=1.1;CM-VER=3.0; 2021-3-22, 13:52:42 Warning (5) MDD message timeout;CM-MAC=44:a5:6e:83:05:48;CMTS-MAC=00:27:90:0c:d0:7c;CM-QOS=1.1;CM-VER=3.0; 2021-3-22, 13:52:40 Critical (3) SYNC Timing Synchronization failure - Failed to acquire QAM/QPSK symbol timing;;CM-MAC=44:a5:6e:83:05:48;CMTS-MAC=00:27:90:0c:d0:7c;CM-QOS=1.1;CM-VER=3.0; 2021-3-21, 23:17:41 Notice (6) WiFi Interface [wl0] set to Channel 1 (Side-Band Channel:N/A) - Reason:INTERFERENCE 2021-3-21, 23:08:33 Notice (6) WiFi Interface [wl0] set to Channel 4 (Side-Band Channel:N/A) - Reason:INTERFERENCE 2021-3-21, 23:08:32 Notice (6) WiFi Interface [wl1] set to Channel 157 (Side-Band Channel:N/A) - Reason:INTERFERENCE 2021-3-21, 23:08:28 Notice (6) WiFi Interface [wl0] set to Channel 4 (Side-Band Channel:8) - Reason:GUI 2021-3-21, 23:07:13 Notice (6) WiFi Interface [wl1] set to Channel 149 (Side-Band Channel:N/A) - Reason:INTERFERENCE 2021-3-21, 23:07:13 Notice (6) WiFi Interface [wl0] set to Channel 11 (Side-Band Channel:N/A) - Reason:INTERFERENCE 2021-3-21, 23:07:09 Notice (6) WiFi Interface [wl0] set to Channel 11 (Side-Band Channel:7) - Reason:GUI 2021-3-21, 19:19:09 Critical (3) Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=44:a5:6e:83:05:48;CMTS-MAC=00:27:90:0c:d0:7c;CM-QOS=1.1;CM-VER=3.0; 2021-3-21, 19:18:28 Error (4) Improper Configuration File CVC Format 2021-3-21, 19:18:21 Notice (6) TLV-11 - unrecognized OID;CM-MAC=44:a5:6e:83:05:48;CMTS-MAC=00:27:90:0c:d0:7c;CM-QOS=1.1;CM-VER=3.0; 1970-1-1, 00:00:49 Warning (5) DHCP WARNING - Non-critical field invalid in response ;CM-MAC=44:a5:6e:83:05:48;CMTS-MAC=00:27:90:0c:d0:7c;CM-QOS=1.0;CM-VER=3.0; 1970-1-1, 00:00:47 Notice (6) Honoring MDD; IP provisioning mode = IPv4 1970-1-1, 00:00:40 Notice (6) WiFi Interface [wl1] set to Channel 153 (Side-Band Channel:N/A) - Reason:INIT 1970-1-1, 00:00:40 Notice (6) WiFi Interface [wl0] set to Channel 1 (Side-Band Channel:N/A) - Reason:INIT 1970-1-1, 00:00:37 Critical (3) SYNC Timing Synchronization failure - Failed to acquire FEC framing;CM-MAC=44:a5:6e:83:05:48;CMTS-MAC=00:00:00:00:00:00;CM-QOS=1.0;CM-VER=3.0; 2021-3-21, 23:55:08 Critical (3) Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=44:a5:6e:83:05:48;CMTS-MAC=00:27:90:0c:d0:7c;CM-QOS=1.1;CM-VER=3.0; 2021-3-21, 23:53:07 Critical (3) Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=44:a5:6e:83:05:48;CMTS-MAC=00:27:90:0c:d0:7c;CM-QOS=1.1;CM-VER=3.0; 2021-3-21, 23:51:28 Critical (3) Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=44:a5:6e:83:05:48;CMTS-MAC=00:27:90:0c:d0:7c;CM-QOS=1.1;CM-VER=3.0; Here's the screenshot of the connection page:
really appreciate the help.
Is there any documentation to help better understand the logs?
- Infosec_stoicAspirant
- plemansGuru - Experienced User
Your power levels are out of spec (to high) and you have errors in your line.
check your line. You might actually need a signal attenuator or splitter in line to drop power to get it in spec .
Otherwise your isp will need to check the line
