Forum Discussion

Retired_Member's avatar
Retired_Member
Oct 27, 2022

Netgear N600 WNDR3700v4 Power Adapter

I have a used Netgear N600 WNDR3700v4 router, the power adapter is missing. Where can I find the exact inner/outer diameter of the plug? Having the size I could find some generic replacement adapters.

thanks

Hardware

5 Replies

  • plemans's avatar
    plemans
    Guru
    Oct 27, 2022

    Its a 12v 1.5amp power supply according to its spec sheet.

    Most of the 12v's use a pretty generic power supply setup.

    You can get one with more amps (not less) but it needs to have the exact same voltage.

    You might even have one sitting around from an old device.



    Although for the price of a power supply, it might not be worth it on that old of a router.





  • michaelkenward's avatar
    michaelkenward
    Guru
    Oct 27, 2022
    Retired_Member wrote:

    Having the size I could find some generic replacement adapters.

    thanks

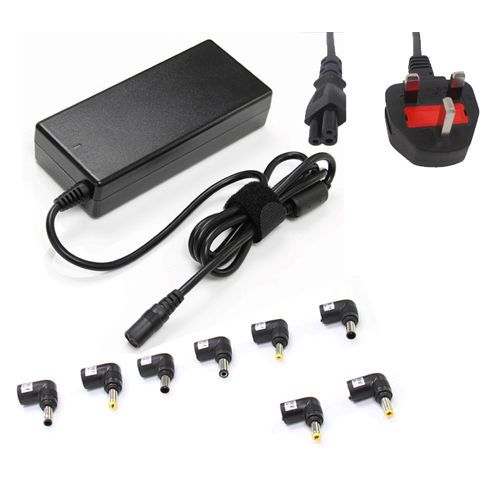

    Some generic adapters come with a set of tips that will fit a range of different devices.



    Generic adapter









































    These things are pretty common, so first check to see if you have something compatible lying around.

    • Retired_Member's avatar
      Retired_Member
      Oct 27, 2022

      I'm aware of the multi-plug generic adapters, and I also already checked some of the old adapters I still have.

      I would really appreciate it if further answers focus on my exact question on finding the required size of the plug.

      thanks

      • Retired_Member's avatar
        Retired_Member
        Jan 04, 2023

        For the benefit of others. The power adapter must be 12v 2.5 Amp. The pin size is 5.5x2.5mm but 5.1x2.1mm also fits. Polarity: Inner: +, Outer: -
