Forum Discussion

Kardano's avatar
Kardano
Luminary
Apr 18, 2018
Solved

RN102 - Rebuilding after disc change - md1 on 1 drive only



Hello,

after hdd change in RN102 Unit (FW 6.9.3, 2x WD RED 2TB) Nas says all is OK.

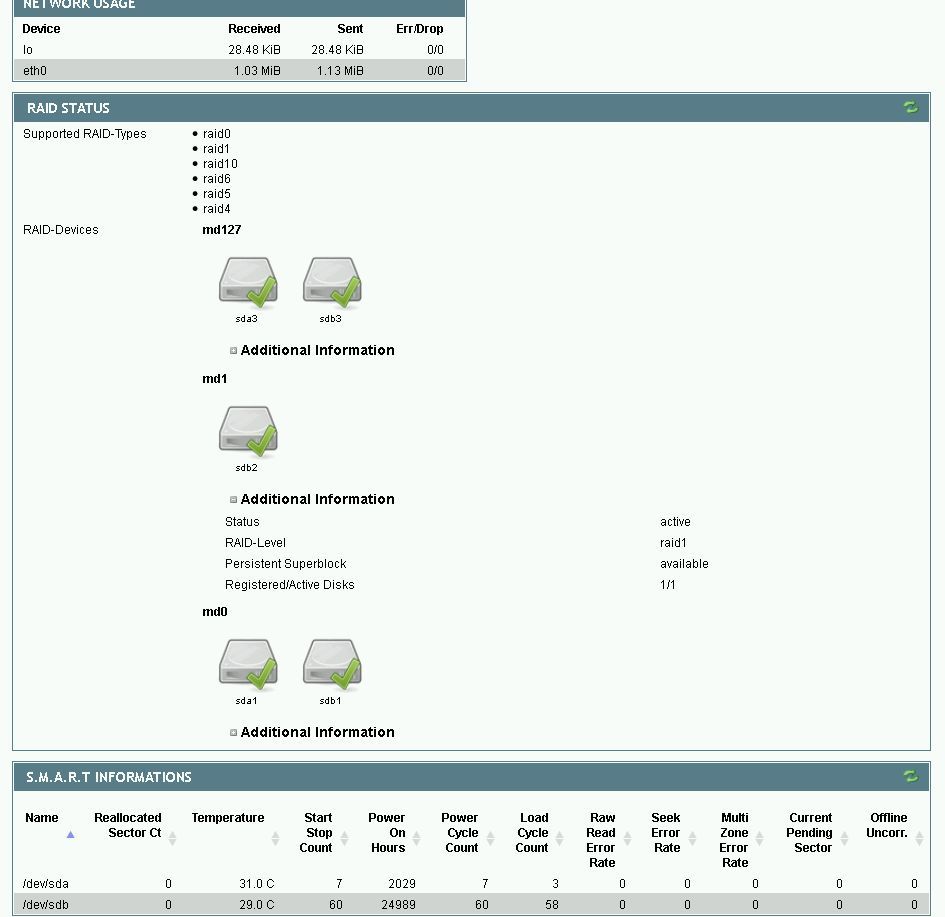

But when i look in PHPsysinfo i see this:

md127 RAID1 (2 disc) - OK

md0 RAID1 (2 disc) - OK

md1 RAID1 (1disc) ??? this volume is on old disc only (sdb2)

Additional Information
Status	                 active
RAID-Level	         raid1
Persistent Superblock 	 available
Registered/Active Disks



Is there anything i need to do to corect this state of md1?

How to get expand on new disc? Or can I ignore this state?

Can anyone tell me what to do?

Thank you very much.

Installation & Upgrade

7 Replies

Replies have been turned off for this discussion
  • StephenB's avatar
    StephenB
    Guru - Experienced User
    Apr 19, 2018

    MD1 is the swap partition, so I don't think it's all that critical.



    Hopefully mdgm-ntgr will chime in.

    • mdgm-ntgr's avatar
      mdgm-ntgr
      NETGEAR Employee Retired
      Apr 19, 2018

      This should be easy to fix via SSH.

      You'd need to start by checking a few things

      # cat /proc/partitions
      # cat /proc/mdstat
      • Kardano's avatar
        Kardano
        Luminary
        Apr 19, 2018

        Thanks mdgm-ntgr

        # cat /proc/partitions
          31        0       1536 mtdblock0
  31        1        512 mtdblock1
  31        2       6144 mtdblock2
  31        3       4096 mtdblock3
  31        4     118784 mtdblock4
   8        0 1953514584 sda
   8        1    4194304 sda1
   8        3 1948793912 sda3
   8       16 1953514584 sdb
   8       17    4194304 sdb1
   8       18     524288 sdb2
   8       19 1948793912 sdb3
   9        0    4190208 md0
   9        1     523712 md1
   9      127 1948662784 md127
        cat /proc/mdstat



        Personalities : [raid0] [raid1] [raid10] [raid6] [raid5] [raid4]
md127 : active raid1 sda3[2] sdb3[1]
      1948662784 blocks super 1.2 [2/2] [UU]

md1 : active raid1 sdb2[0]
      523712 blocks super 1.2 [1/1] [U]

md0 : active raid1 sda1[2] sdb1[1]
      4190208 blocks super 1.2 [2/2] [UU]

unused devices: <none>
