Static route on S3300

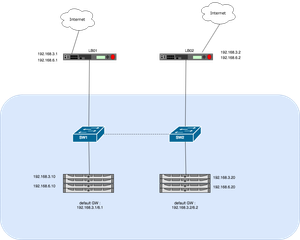

I have a 2 datacenters composed of a Load balancer and a switch. Each location has it own internet connection/ gateway. I have a LANX connection between both location to stack my S3300. Servers on each side have their location's gateway. We have an asymetric routing issue, eg: If server 192.168.3.10 tries to talk to 192.168.6.20, it won't work since the path will be 3.10 > LB01 > 6.20 > LB02 > 3.10 We are trying to find a solution to allow this architecture to work. I was thinking about configuring static route on the S3300, and add route for each servers so it won't go up to the LB to do the routing. eg, on SW1: route 192.168.6.20 192.168.3.2, so if 3.10 tries to talk to 6.20, it won't go up to its default gateway 3.1 But I don't know how to do that, i've tried adding a VLAN, enabling VLAN routing but no luck. Is that possible ? What are your recommendation ?PBR Policy Based Routing using Managed Switch
I am no expert with networks, but I am wondering if anyone has had any experience with PBR (Policy Based Routing) using Netgear Managed Switches. More specifically I am wanting to define the onward hop based upon the source IP. Looking through the manual, I can't find any insights on how to implement it using the web application. So to give an example: Message received on port 1 from source IP 192.168.254.1/24, with destination 172.168.0.1/24 I would like to define the next hop to be an interface with IP 192.168.1.1/24 (connected to port 2) Another message received on port 1, source: 192.168.254.2/24, same destination IP. I would like to define the next hop to be an interface with IP 192.168.2.1/24 (connected to port 3) and so on. Is this possible? Any help or suggestions would be much appreciated. ThanksVlan routing interface down
Hello, I have setvlan on my L3 switch, inter vlan routing is ok. Except for 1 vlan. I have 2 vlans on the same port, both for wifi (business/guest) both of them worked fine last week, but now the business wifi vlan has his routing interface down Link State Routing Interface Status Link Up Down All the vlan work fine, i tried to delete and create again the routing interface, but she's never up. I tried to add a second port to the vlan and set the pc with static ip to ping the gateway, but still nothing, the interface stay down. Any tips, Thank you
