Connect M5300 & S3300 via SPF

Hi jiska78

Thank you for your question and I am sorry to see some confusion here. Maybe with the word "shared", namely here. I confirm the datasheet is correct, and you are correct too.

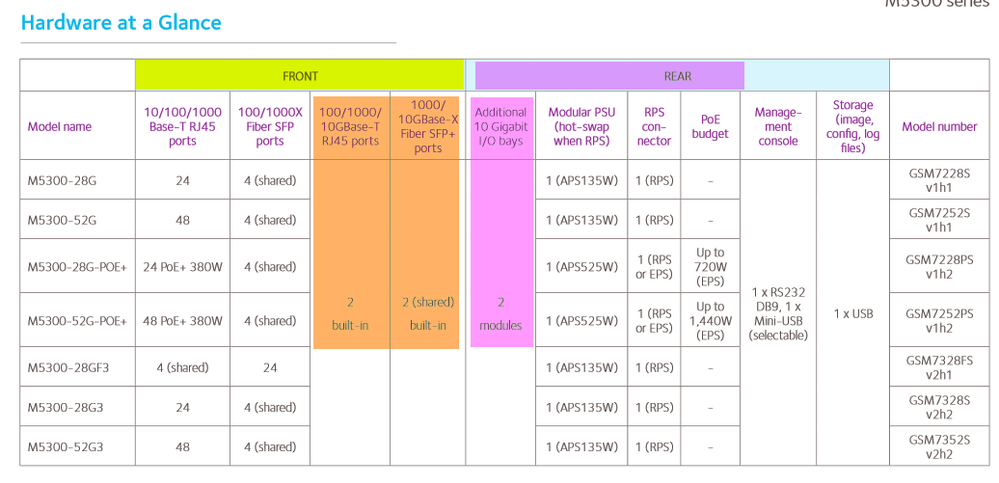

Based on this specific table in the datasheet, the two 10GBASE-X SFP+ fiber ports are shared with the two 10GBASE-T RJ45 ports. You show two combo ports, in other words, being two copper ports combo with fiber ports. It means we can use either copper or fiber at a time on each pair.

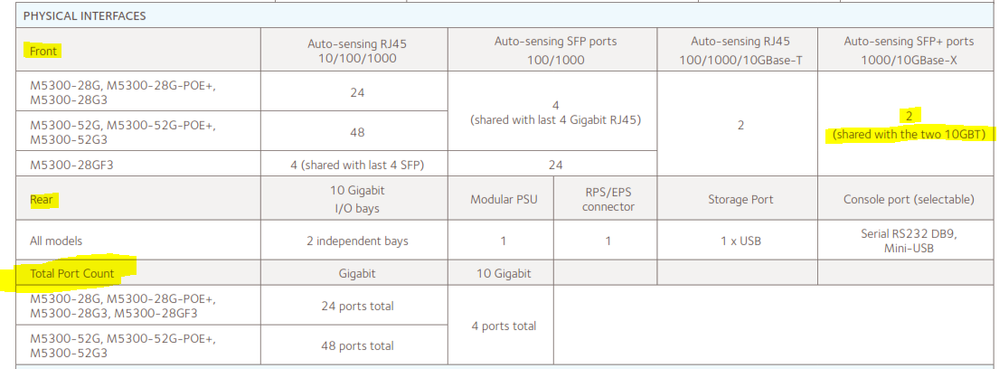

Maybe the Tech Spec section of the datasheet can help as well, it starts with Physical Interfaces and port counts:

The real confusion is coming from two points - the datasheet does show

• M5300-52G3 is a “48 + 4x10GbE” version, Layer 3 (plain text)
• "I/O Ports" listed, but not the effective kit as delivered with the stacking module in place

LaurentMa  it's really not perfectly clear.

Hi schumaku

I will not argue with you, thank you for your help before. I hope this thread was useful to the Community and jiska78

For convenience, let me display some more information from the M5300 datasheet:

Well, actually, the point for me is that you're violated Australia Consumer Law by advertising that a product can do something, but then when I've bought it, it hasn't been able to do what you claimed it could. That means I'm entitled to a full refund for the product, so I'll contact Netgear for an RMA.

https://www.accc.gov.au/consumers/consumer-rights-guarantees/repair-replace-refund#repair-replacement-or-refund

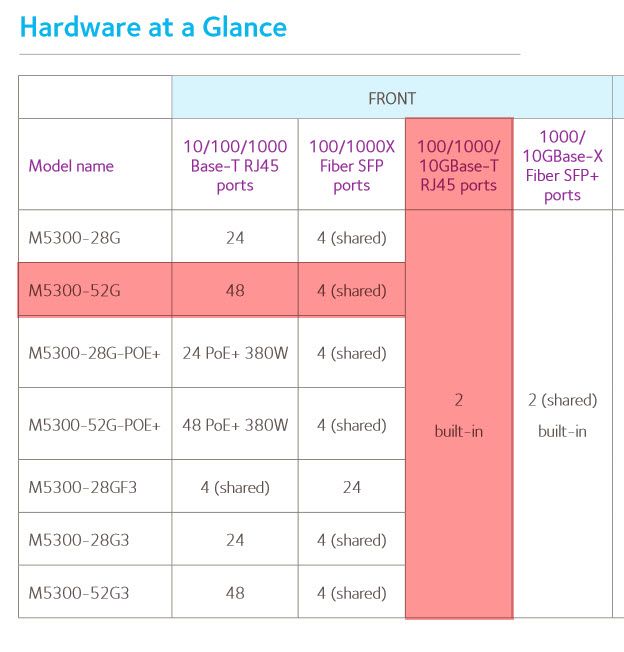

Can you please show me where it says that the RJ45 10GB Ports are "Shared"

---

jiska78 wrote:

Can you please show me where it says that the RJ45 10GB Ports are "Shared"

---

There are at least to screenshots in this thread clearly showing the SFP+ are shared with the 10GBase-T IMHO:

Front

• 2 x Auto-sensing RJ45 100/1000/10GBase-T
• 2 x Auto-sensing SFP+ ports 1000/10GBase-X (shared with the two 10GBT)

Back

• 2 x 10 Gigabit I/O bays

Re-thinking after a night, the "M5300-52G3 is a “48 + 4x10GbE” is correct - there are four 10GbE capable interfaces in total, two shared 10GBase-T/SFP+ (plus the two 10GbE I/O slots).

That will be hard to argue away, even downunder.

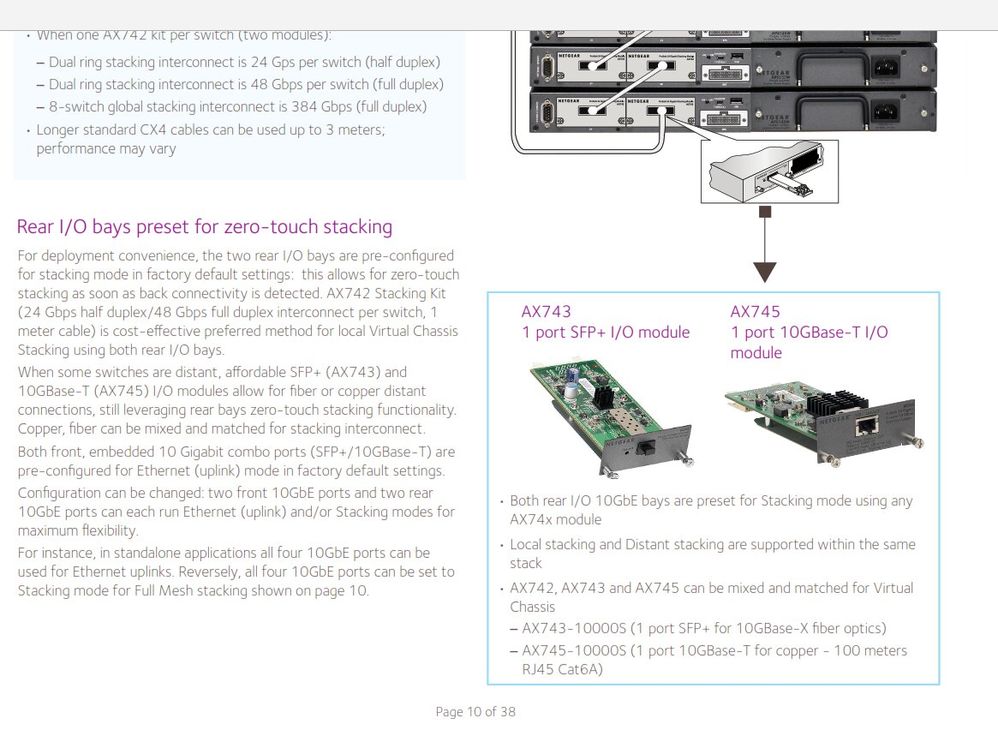

The Netgear ProSAFE 10GBASE-T RJ45 I/O MODULE (AX745-10000S) are less than 100 USD from Amazon North America, the SFP+ variant (AX743-10000S) is even less, so kind of affordable for adding two 10GBase-T resp. two SFP+ interfaces.

PS. LaurentMa  ... something odd with the European pricing, in Switzerland these are listed in the range of about 340...370 CHF (around 350 Euro!) - that's to much for both model variants.
