GS748Tv5 - Data & VoIP on different VLAN and IP ranges.

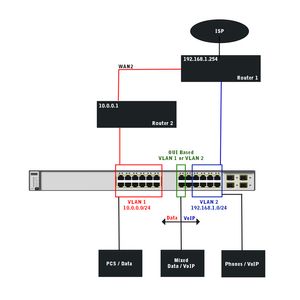

Hi I currently have a GS748Tv5 that is connected up to a mixed data / voip LAN (attached below). Some of the data and voip can be seperated easily as they are in the same office but I've also had to...
After a bit of trial and error, I found I needed to specify that the VoIP ports needed assigning to VLAN 2 on the "Port PVID Configuration" page. I thought I had done that by adding the ports to the "OUI Port Settings" table but that seems to allow inter-LAN communications.
