GSM7328FS switch - Configuration via the Boot Menu?

I have a GSM7328FS switch and when updating the image an error occurred in which it corrupted the code crc, operating system and backup image. Currently it only accesses via serial cable and already...

Solutions

Troubleshooting

fabiogc

Aspirant

Aug 11, 2017

Hi,

Yes, I can access the boot menu through the console, in fact it is currently the only access. But I can not transfer any files to the device or at least valid.

If you have a procedure or something, I thank you.

Grateful.

JohnC_V

NETGEAR Employee Retired

Aug 12, 2017

fabiogc,

That is also the only way that we can recover or upload the firmware. May you be able to take a screenshot of the initialization of the switch?

Regards,

fabiogc
Aspirant
Aug 14, 2017
Hello John,

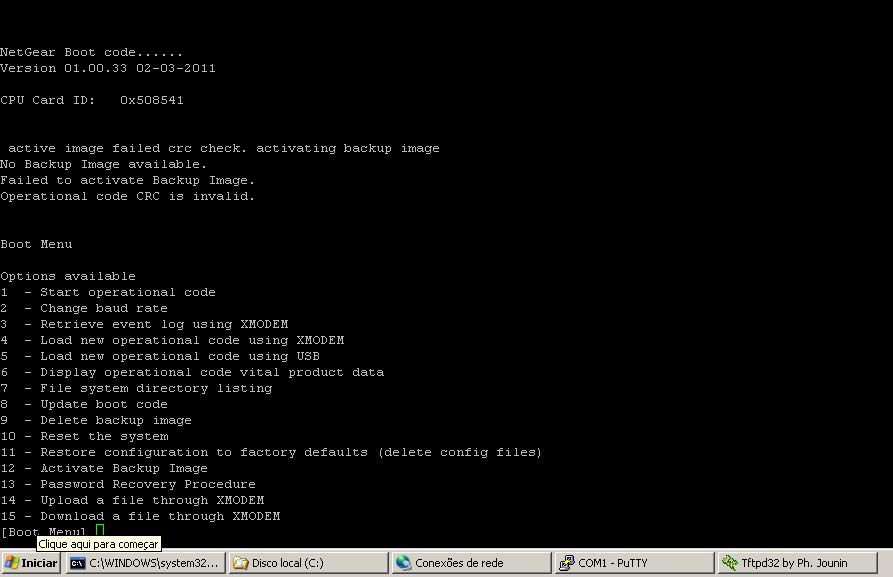

Here is the only valid switch configuration image.
I'm waiting and grateful for the help.
Fabio
- JohnC_V
  NETGEAR Employee Retired
  Aug 15, 2017
  fabiogc,

  As you can see on the menu. Please choose "14 Upload a file through XMODEM" using the firmware that you want to upload on the switch. Please make sure that the firmware is now .stk format.

  Regards,
  - fabiogc
    Aspirant
    Aug 17, 2017

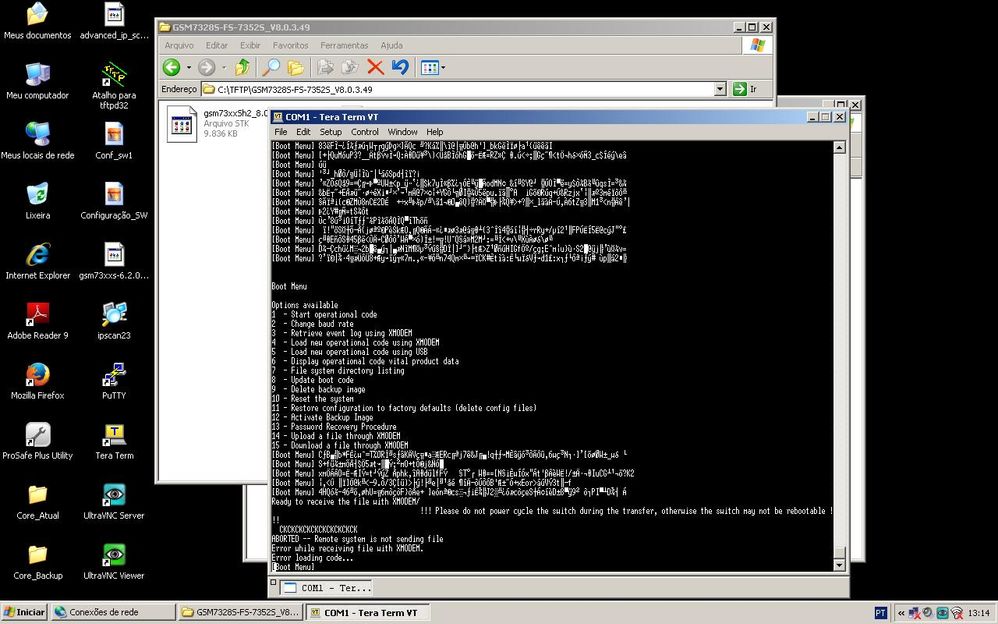

    Hi Jonh, Follows image of error after process of item 14 of boot menu. GratefulErro após processo
