S3300-28X: Routing between two switches

Hi all,

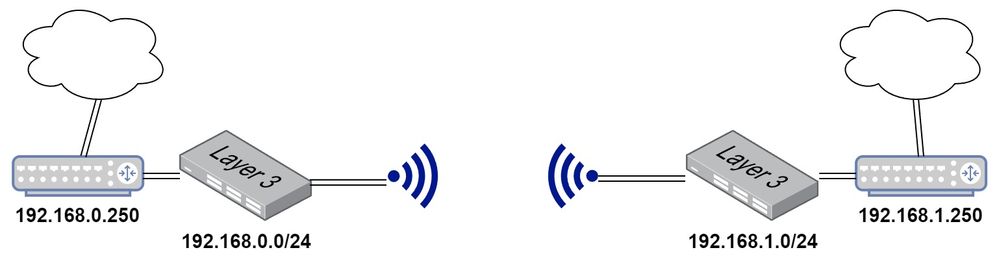

there are two buildings which are connected through a Wifi bridge. In building 1 is a LAN running on subnet 192.168.0.0/24, building 2 is running on subnet 192.168.1.0/24. Both buildings have their own internet uplink. Both switches are S3300-28X.





The routing performance of the routers 192.168.x.250 is not that good so I want to try to route the traffic between the both subnets through the switches. At the moment I'm not able to get a working configuration as I don't understand the how to which are available.



I enabled VLAN on both switches. First building is running on VLAN 10 and the second building is running on VLAN 20. The ports on both switches which are connected to the wifi bridge are configured as trunked ports which have VLAN 10 and 20 assigned. How do I have to set up the routing and the IP addresses ifor the routing configuration?

  • I found the solution.

    1st mistake: management VLAN and routed VLAN must not be the same. You can use VLAN id 1 for a routed VLAN, but you have to change your management VLAN.

    These are the steps to a working setup:
    1.
    If you want to use VLAN id 1 for your network clients, go to VLAN menu and create a management VLAN. Assign a port to this VLAN if you want.

    2.
    Go to routing menu and use the VLAN routing configuration to configure an IP address for your switch. According to my example, I used this setting on site 1:
    VLAN: 1
    IP address: 192.168.0.10
    Subnet mask: 255.255.255.0

    On site 2 the settings are nearly the same:
    VLAN: 1
    IP address: 192.168.1.10
    Subnet mask: 255.255.255.0

    You can reach the web interface of the switch via its address you have configured here.

    Now you should assign a static IP address to your management interface. I experienced some issues when the management address is assigned by DHCP because I use subnet 192.168.0.0/24 for the clients on site 1.

    3.
    Go to VLAN routing wizard and create a new routing VLAN, e.g. 199
    Site 1
    VLAN: 199
    IP: 192.168.199.10
    Subnet: 255.255.255.0
    Port: 20 (untagged)

    Site 2
    VLAN: 199
    IP: 192.168.199.11
    Subnet: 255.255.255.0
    Port: 20 (untagged)

    In my setup I connect these ports to the Wifi bridge.

    4.
    Go to routing table menu and add two new rules
    Site 1
    route type: static
    network address: 192.168.1.0
    subnet mask: 255.255.255.0
    next hop address: 192.168.199.11

    route type: DefaultRoute
    next hop address: 192.168.0.250

    Site 2
    route type: static
    network address: 192.168.0.0
    subnet mask: 255.255.255.0
    next hop address: 192.168.199.10

    route type: DefaultRoute
    next hop address: 192.168.1.250

    5.
    Go to routing menu and enable routing mode.

    6.
    Change the default gateway of your network to the switch's address 192.168.0.10 or 192.168.1.10.


3 Replies

    • Retired_Member's avatar
      Retired_Member

      I am not familiar with your devices. However, the networking principles are always the same no matter what devices or type of connections you use. If the WiFi devices you use to connect the two switches are VLAN-aware, you need to create both VLANs on both switches and set up the link ports as trunk. That will be a router-on-the-stick kind of connection. If those devices are not VLAN-aware, you need to create a so-called transition VLAN, set up the link ports as access and add proper static routes.

  • I found the solution.

    1st mistake: management VLAN and routed VLAN must not be the same. You can use VLAN id 1 for a routed VLAN, but you have to change your management VLAN.

    These are the steps to a working setup:
    1.
    If you want to use VLAN id 1 for your network clients, go to VLAN menu and create a management VLAN. Assign a port to this VLAN if you want.

    2.
    Go to routing menu and use the VLAN routing configuration to configure an IP address for your switch. According to my example, I used this setting on site 1:
    VLAN: 1
    IP address: 192.168.0.10
    Subnet mask: 255.255.255.0

    On site 2 the settings are nearly the same:
    VLAN: 1
    IP address: 192.168.1.10
    Subnet mask: 255.255.255.0

    You can reach the web interface of the switch via its address you have configured here.

    Now you should assign a static IP address to your management interface. I experienced some issues when the management address is assigned by DHCP because I use subnet 192.168.0.0/24 for the clients on site 1.

    3.
    Go to VLAN routing wizard and create a new routing VLAN, e.g. 199
    Site 1
    VLAN: 199
    IP: 192.168.199.10
    Subnet: 255.255.255.0
    Port: 20 (untagged)

    Site 2
    VLAN: 199
    IP: 192.168.199.11
    Subnet: 255.255.255.0
    Port: 20 (untagged)

    In my setup I connect these ports to the Wifi bridge.

    4.
    Go to routing table menu and add two new rules
    Site 1
    route type: static
    network address: 192.168.1.0
    subnet mask: 255.255.255.0
    next hop address: 192.168.199.11

    route type: DefaultRoute
    next hop address: 192.168.0.250

    Site 2
    route type: static
    network address: 192.168.0.0
    subnet mask: 255.255.255.0
    next hop address: 192.168.199.10

    route type: DefaultRoute
    next hop address: 192.168.1.250

    5.
    Go to routing menu and enable routing mode.

    6.
    Change the default gateway of your network to the switch's address 192.168.0.10 or 192.168.1.10.
