Unable to ping second gateway. (GS752tp)

Question

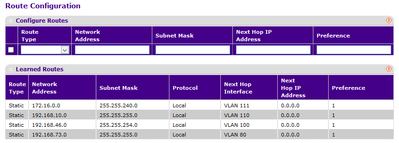

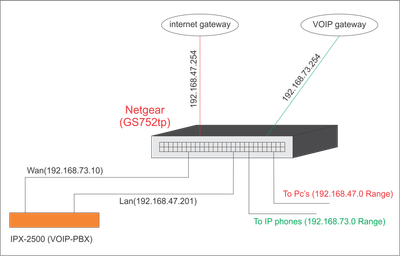

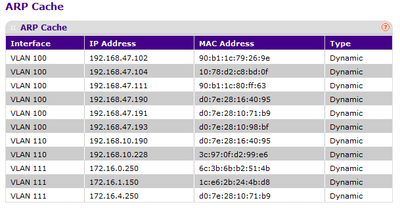

&nbsp;I have 4 Vlan created in my switch. Vlan: 80, 100, 110, 111Vlan 80 is used for VOIP (IP 192.168.73.2)Vlan 100 is used for local domain network (192.168.47.200)Vlan 110 is used for staff wifi (192.168.10.2)Vlan 111 is used for guest wifi (172.16.2.200)&nbsp;My problem is that i cannot&nbsp; connect to the my voip gateway 192.168.73.254. When i tried using the IPX-2500 i can ping to internet gatway 192.168.47.254 but it fails to connect 192.168.73.254&nbsp;Port details:g2 internet gateway (PVID: 100)g11 VOIP gateway (PVID: 80)g43 staff wifi (PVID: 110)g46 IPX-2500 Lan (PVID: 100)g47 IPX-2500 WAN (PVID: 80)g48 guest wifi (PVID: 111)&nbsp;Here is my runing config file&nbsp;0x4E470x010x00gs7xxtp_p 6.0.1.16 0x000000000x00000000000000config-file-headerMain_Switch_1v6.0.1.16 / RNG60_760_045CLI v1.0set system mode routerqos activepolicy-based-vlans inactive@lacp system-priority 32768vlan databasevlan 2-3,80,100,110-111,500exitvoice vlan oui-table add 0001e3 SIEMENSvoice vlan oui-table add 00036b CISCO1voice vlan oui-table add 00040d AVAYA1voice vlan oui-table add 000fe2 H3Cvoice vlan oui-table add 001243 CISCO2voice vlan oui-table add 001b4f AVAYA2voice vlan oui-table add 0060b9 NITSUKOvoice vlan oui-table add 00d01e PINTELvoice vlan oui-table add 00e075 VERILINKvoice vlan oui-table add 00e0bb 3COMpriority-queue out num-of-queues 0hostname Main_Switch_1snmp-server engineID local 8000005903003333333333snmp-server location "IT Office"snmp-server community private rw view Defaultsnmp-server community public ro view Defaultsnmp-server group default v3 noauth notify Default read Default write Defaultsnmp-server group default v3 auth notify Default read Default write Defaultsnmp-server group default v3 priv notify Default read Default write Defaultsnmp-server user admin default v3service cpu-counters!interface vlan 1no ip address dhcp!interface vlan 2name "Voice VLAN"!interface vlan 3name "Auto Video VLAN"!interface vlan 80name VOIPip address 192.168.73.2 255.255.255.0!interface vlan 100name Privateip address 192.168.47.200 255.255.254.0ipv6 address autoconfig!interface vlan 110name Staffip address 192.168.10.2 255.255.255.0!interface vlan 111name Guestip address 172.16.2.200 255.255.240.0!interface gigabitethernet1lacp timeout shortlacp port-priority 128switchport general allowed vlan add 80,110 taggedswitchport general allowed vlan add 100 untaggedswitchport general pvid 100!interface gigabitethernet2lacp timeout shortlacp port-priority 128switchport general allowed vlan add 80 taggedswitchport general allowed vlan add 100 untaggedswitchport general pvid 100!interface gigabitethernet3lacp timeout shortlacp port-priority 128switchport general allowed vlan add 80 taggedswitchport general allowed vlan add 100 untaggedswitchport general pvid 100!interface gigabitethernet4lacp timeout shortlacp port-priority 128switchport general allowed vlan add 80 taggedswitchport general allowed vlan add 100 untaggedswitchport general pvid 100!interface gigabitethernet5lacp timeout shortlacp port-priority 128switchport general allowed vlan add 80 taggedswitchport general allowed vlan add 100 untaggedswitchport general pvid 100!interface gigabitethernet6lacp timeout shortlacp port-priority 128switchport general allowed vlan add 80 taggedswitchport general allowed vlan add 100 untaggedswitchport general pvid 100!interface gigabitethernet7lacp timeout shortlacp port-priority 128switchport general allowed vlan add 80 taggedswitchport general allowed vlan add 100 untaggedswitchport general pvid 100!interface gigabitethernet8lacp timeout shortlacp port-priority 128switchport general allowed vlan add 80 taggedswitchport general allowed vlan add 100 untaggedswitchport general pvid 100!interface gigabitethernet9lacp timeout shortlacp port-priority 128switchport general allowed vlan add 80 taggedswitchport general allowed vlan add 100,110 untaggedswitchport general pvid 100!interface gigabitethernet10lacp timeout shortlacp port-priority 128switchport general allowed vlan add 80 taggedswitchport general allowed vlan add 100 untaggedswitchport general pvid 100!interface gigabitethernet11lacp timeout shortlacp port-priority 128switchport general allowed vlan add 80 taggedswitchport general pvid 80!interface gigabitethernet12lacp timeout shortlacp port-priority 128switchport general allowed vlan add 80 taggedswitchport general allowed vlan add 100 untaggedswitchport general pvid 100!interface gigabitethernet13lacp timeout shortlacp port-priority 128switchport general allowed vlan add 80 taggedswitchport general allowed vlan add 100 untaggedswitchport general pvid 100!interface gigabitethernet14lacp timeout shortlacp port-priority 128switchport general allowed vlan add 80 taggedswitchport general allowed vlan add 100 untaggedswitchport general pvid 100!interface gigabitethernet15lacp timeout shortlacp port-priority 128switchport general allowed vlan add 80 taggedswitchport general allowed vlan add 100 untaggedswitchport general pvid 100!interface gigabitethernet16lacp timeout shortlacp port-priority 128switchport general allowed vlan add 80 taggedswitchport general allowed vlan add 100 untaggedswitchport general pvid 100!interface gigabitethernet17lacp timeout shortlacp port-priority 128switchport general allowed vlan add 80 taggedswitchport general allowed vlan add 100 untaggedswitchport general pvid 100!interface gigabitethernet18lacp timeout shortlacp port-priority 128switchport general allowed vlan add 80 taggedswitchport general allowed vlan add 100 untaggedswitchport general pvid 100!interface gigabitethernet19lacp timeout shortlacp port-priority 128switchport general allowed vlan add 80 taggedswitchport general allowed vlan add 100 untaggedswitchport general pvid 100!interface gigabitethernet20lacp timeout shortlacp port-priority 128switchport general allowed vlan add 80 taggedswitchport general allowed vlan add 100 untaggedswitchport general pvid 100!interface gigabitethernet21lacp timeout shortlacp port-priority 128switchport general allowed vlan add 80 taggedswitchport general allowed vlan add 100 untaggedswitchport general pvid 100!interface gigabitethernet22lacp timeout shortlacp port-priority 128switchport general allowed vlan add 80 taggedswitchport general allowed vlan add 100 untaggedswitchport general pvid 100!interface gigabitethernet23lacp timeout shortlacp port-priority 128switchport general allowed vlan add 80 taggedswitchport general allowed vlan add 100 untaggedswitchport general pvid 100!interface gigabitethernet24lacp timeout shortlacp port-priority 128switchport general allowed vlan add 80 taggedswitchport general allowed vlan add 100 untaggedswitchport general pvid 100!interface gigabitethernet25lacp timeout shortlacp port-priority 128switchport general allowed vlan add 80 taggedswitchport general allowed vlan add 100 untaggedswitchport general pvid 100!interface gigabitethernet26lacp timeout shortlacp port-priority 128!interface gigabitethernet27lacp timeout shortlacp port-priority 128!interface gigabitethernet28lacp timeout shortlacp port-priority 128!interface gigabitethernet29lacp timeout shortlacp port-priority 128!interface gigabitethernet30lacp timeout shortlacp port-priority 128!interface gigabitethernet31lacp timeout shortlacp port-priority 128!interface gigabitethernet32lacp timeout shortlacp port-priority 128!interface gigabitethernet33lacp timeout shortlacp port-priority 128!interface gigabitethernet34lacp timeout shortlacp port-priority 128!interface gigabitethernet35lacp timeout shortlacp port-priority 128!interface gigabitethernet36lacp timeout shortlacp port-priority 128switchport general allowed vlan add 500 tagged!interface gigabitethernet37lacp timeout shortlacp port-priority 128switchport general allowed vlan add 500 tagged!interface gigabitethernet38lacp timeout shortlacp port-priority 128switchport general allowed vlan add 500 tagged!interface gigabitethernet39lacp timeout shortlacp port-priority 128switchport general allowed vlan add 500 tagged!interface gigabitethernet40lacp timeout shortlacp port-priority 128switchport general allowed vlan add 111 untaggedswitchport general pvid 111!interface gigabitethernet41lacp timeout shortlacp port-priority 128switchport general allowed vlan add 80 taggedswitchport general allowed vlan add 100 untaggedswitchport general pvid 100!interface gigabitethernet42lacp timeout shortlacp port-priority 128switchport general allowed vlan add 100 untaggedswitchport general pvid 100!interface gigabitethernet43lacp timeout shortlacp port-priority 128switchport general allowed vlan add 110 untaggedswitchport general pvid 110!interface gigabitethernet44lacp timeout shortlacp port-priority 128switchport general allowed vlan add 80 taggedswitchport general pvid 80!interface gigabitethernet45lacp timeout shortlacp port-priority 128switchport general allowed vlan add 111 untaggedswitchport general pvid 111!interface gigabitethernet46lacp timeout shortlacp port-priority 128switchport general allowed vlan add 100 untaggedswitchport general pvid 100!interface gigabitethernet47lacp timeout shortlacp port-priority 128switchport general allowed vlan add 80 taggedswitchport general allowed vlan add 100,111 untaggedswitchport general pvid 80!interface gigabitethernet48lacp timeout shortlacp port-priority 128switchport general allowed vlan add 111 untaggedswitchport general pvid 111!interface gigabitethernet49lacp timeout shortlacp port-priority 128switchport general allowed vlan add 80,100,110-111 taggedswitchport general pvid 201!interface gigabitethernet50lacp timeout shortlacp port-priority 128switchport general allowed vlan add 80,100,110-111 taggedswitchport general pvid 202!interface gigabitethernet51lacp timeout shortlacp port-priority 128switchport general allowed vlan add 80,100,110-111 taggedswitchport general pvid 203!interface gigabitethernet52lacp timeout shortlacp port-priority 128switchport general allowed vlan add 80,100,110-111 taggedswitchport general pvid 204!interface Port-channel1switchport general allowed vlan add 111 untagged!exitip route 192.168.73.0 /24 192.168.73.254.snmp-server set rlManagementIpIfindex rlManagementIpIfindex 100099snmp-server set rlManagementIpv4 rlManagementIpv4 192.168.47.200&nbsp;Here is my rout table and arparpNeed help as soon as possible.&nbsp;Thank you.

DaneA · Answer

Hi riufaan,

&nbsp;

It might be&nbsp;possible that the ping reaches the&nbsp;192.168.73.254 but there is no route going back.&nbsp; Kindly check if there is a static route configured in the VoIP gateway that should be coming from the VoIP gateway itself going to the IPX-2500.&nbsp;&nbsp;

&nbsp;

Regards,

&nbsp;

DaneA

NETGEAR Community Team

DaneA · Answer

riufaan,

&nbsp;

I just want to follow-up on this.&nbsp; Let us know if you have further questions.

&nbsp;

Regards,

&nbsp;

DaneA

NETGEAR Community Team
