GS110TP/GS105EPE - Set up VLAN with Trunk
Hi,
i'm trying to configure a vlan trunk over three switches.core switch is a unifi usw-24p on port 20 -> is a gs105Epe on port 3 of the gs105pe (uplink port 5) is a gs110tp switch (uplink port 1)...
Thank you very very much for your kindly assistance! After a while of searching i found that the GS110TP didn't saved my VLAN Settings ( i don't really now why) and so i was unable to get my devices in the right configuration. Okay now it works. If i try your advice (vlan1 tagged) then i'm unable to reach the webinterfaces of the switches. The access only work if i untag vlan1. Found nothing in the documentation about this behaviour... Again, thanks a lot!
thank you very much for the really quick answer! but threre is no chance for a star toplogy and i have to build the switch cascade.

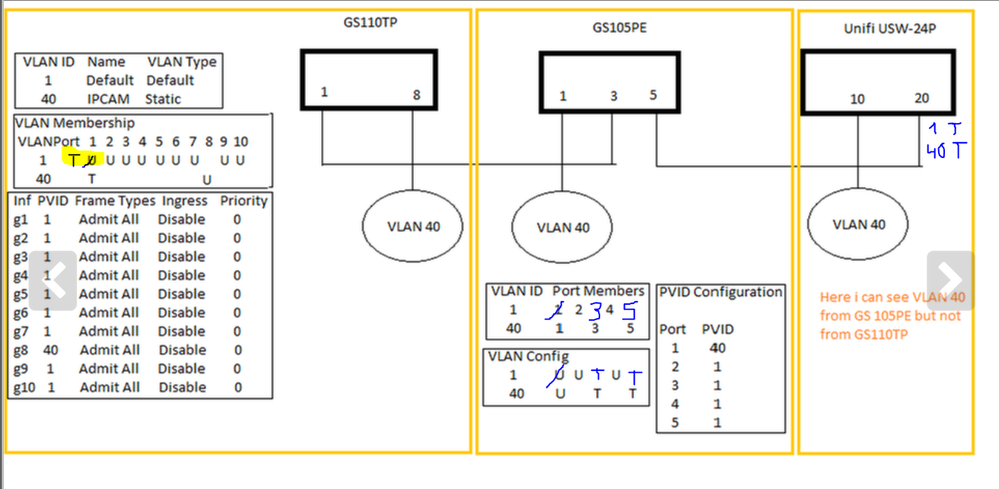

Okay, just for clarifying i attached a illustration. The problem is that i can't reach the GS110TP vlan 40 from the unifi switch. If assume i make a mistake or the GS105PE is not capable for that... is the GS105PE ready for my purpose?
