GS748Tv5 / GS750E : LAG Issue

Hello,



I have an issue to create a LAG between two switch ( GS748Tv5 & GS750E)

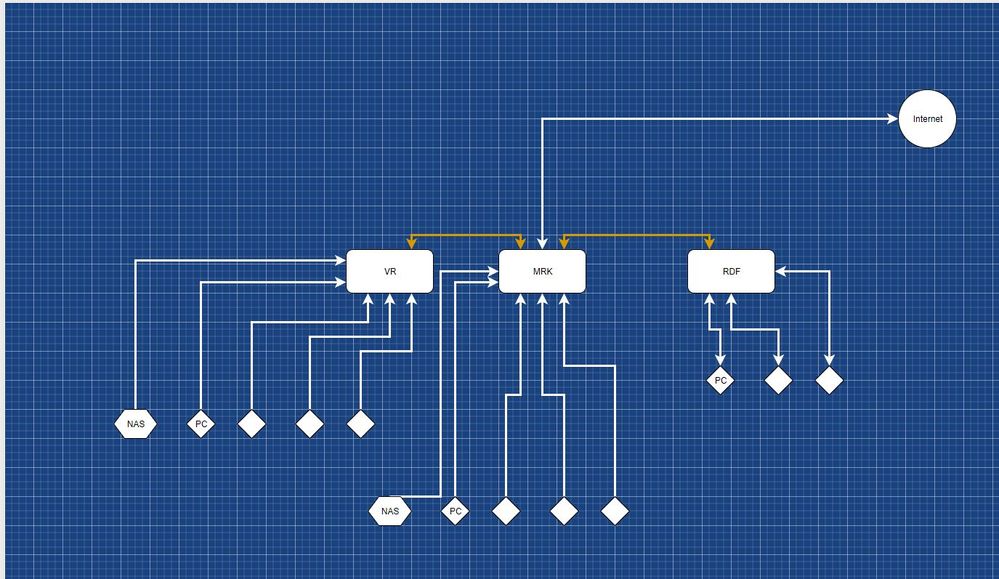

I have a switch GS748Tv5 (named MRK) witch have several computer (Desktop) connected, a NAS (named WINWIN3D) and a internet box. And i have an other switch GS750E (named RDF) witch have other computers (Render) connected.

I'm able to create a LAG (4 ports) for NAS (WINWIN3D) and Desktop can access to WINWIN3D and internet.



But when i want to create a LAG (4 ports) between MRK and RDF, le LAG is UP but i don't have acess to WINWN3D, neither internet for Render computer.

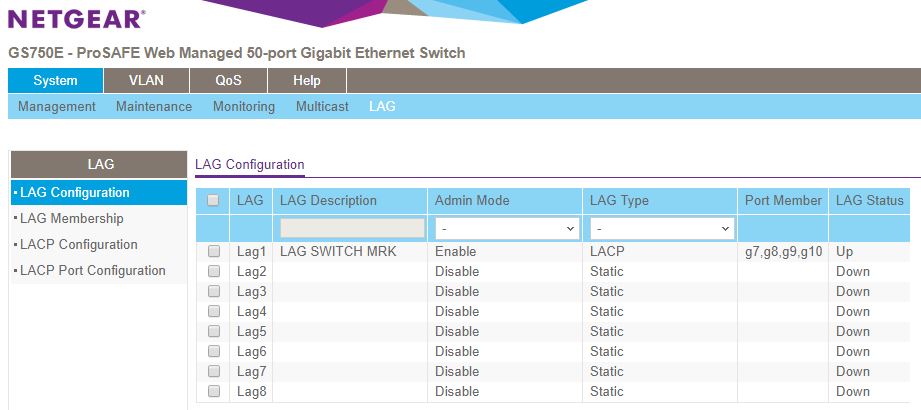

LAG is LACP, All ports are configured on VLAN 1 by default (LAG inclued)



(I have an other switch GS748Tv4 (named VR) connected to switch (MRK) with LAG (6 ports) and it works fine. This switch (VR) has 3 NAS connected with LAG (4 ports) each and Desktop connected to MRK can access to NAS connected to VR.)



Do you have any idea where is the issue ? And how to fix it ?



Thanks



Baptiste

  • Hello,



    I found the solution.



    Switch GS748Tv4 and GS748Tv5 needed to upgrade firmware to work with GS750E.



    Regards

3 Replies

Replies have been turned off for this discussion
    • Baptiste06's avatar
      Baptiste06
      Aspirant

      Hello,



      I found the solution.



      Switch GS748Tv4 and GS748Tv5 needed to upgrade firmware to work with GS750E.



      Regards

    • JohnC_V's avatar
      JohnC_V
      NETGEAR Moderator

      Hi Baptiste06,



      Welcome to our community! :)



      It seems that you just need to upgrade the firmware of the switch for it to work with GS750E. Thank you for sharing the solution here in our community!



      We look forward on hearing more from you!
