Monitor VLAN statistics using SNMP

Question

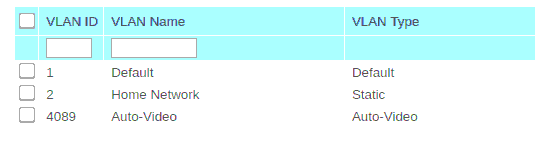

Hello,&nbsp;I've some vlans configured.&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;I'd like to monitor VLAN statistics using&nbsp;ifTable MIB table.But when I test using snmpwalk, I only see entries for the physical ports.Am i missing some configurations to enable statistics for VLAN?Something similar like this:Enable Vlan statistics on Huawei&nbsp;&nbsp;Thanks&nbsp;&nbsp;

schumaku · Answer

What standard MIBs do you had in mind?

om_devan · Answer

Hi,It's&nbsp;IF-MIB&nbsp;MIB&nbsp;

schumaku · Answer

VLANs are not interfaces IMHO so unlikley IF-MIB. https://tools.ietf.org/html/rfc8892

One espresso later, I'd expect the port VLAN statistics to be here:

dot1qPortVlanStatisticsTable
.1.3.6.1.2.1.17.7.1.4.6

You might give it a try, some parts of .1.3.6.1.2.1.17.7 seem to be around (on similar switches) when I have it right. This is part of the Q-BRIDGE-MIB which is not supported as per the https://www.netgear.com/support/product/GC752XP.aspx#download -> MIBs.

om_devan · Answer

The documentation of&nbsp;dot1qPortVlanStatisticsTable looks promising.Unfortunately it's not available on the switch when I tested with snmpwalk.&nbsp;I've seen VLAN interface data were available on customer's lab using IF-MIB's ifTable on Cisco devices.Huawei also supports it using IF-MIB based on the link I posted on original post.So I thought Netgear would also supports it.&nbsp;
