VLAN Config Can't get out to internet

Question

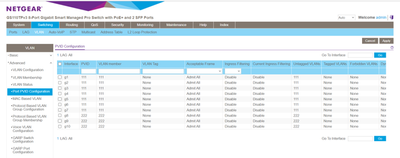

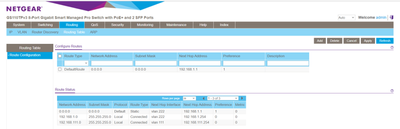

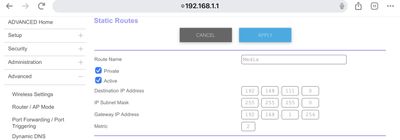

Hi Folks,I am a VLAN newbie so i am sorry if i'm not explaining this right or have the terms wrong.&nbsp; Anyway, I'm trying to setup this switch with a VLAN that can get out to the internet.&nbsp; The internet router is plugged into port 8 and my laptop into port 4VLAN IP'sVLAN PortsVLAN Port ID'sSwitch Routing TableStatic Route on Internet Router My Laptop Ethernet SettingsThe ultimate goal is to isolate the media equipment at church, but it needs&nbsp;to get to the internet for live steaming. I wanted to figure it out at home first.&nbsp;Any help would be greatly appreciated.&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;

Retired_Member · Answer

RichFlickinger&nbsp;What about the Routing Mode under Routing&gt;IP&gt;IP Configuration? Is it enabled?

RichFlickinger · Answer

Yes, it is.

Retired_Member · Answer

Are you able to ping 192.168.1.254 and 192.168.1.1?

RichFlickinger · Answer

Yes, I am able to ping both.&nbsp;more Info…I thought it might be a firewall issue. I noticed my wireless connection is set as private and the Ethernet connection is set to public. So I changed the Ethernet connection to private and I was still not able to get on the internet.&nbsp;

Retired_Member · Answer

If you can ping 192.168.1.1,&nbsp;you should be able to ping 8.8.8.8. If not, there is probably some issue with the default route on the switch.
