Model Identification of JGS524 Series Switch

I haave a JGS524 unmanaged switch. I'm trying to find some technical specs on it, but I see two over versions of this, v1 & v2.



I assume mine is NOT the v2, but is it the v1? or something else?



And where can I find the specs on it?



(I suspect it is a tad old, and it might be worth upgrading to newer version?)



Thanks in advanc3!

Hardware
  • DaneA's avatar
    DaneA
    Oct 04, 2018

    Hi RedBullet,



    If you have the JGS524 switch model, it means that you have the JGS524v1 (v = version).

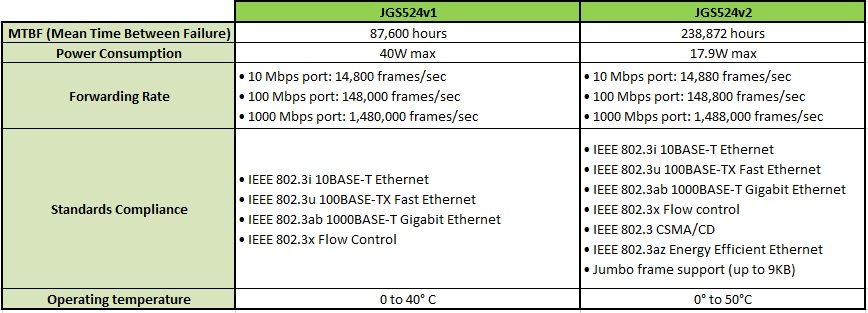

    Here below are the differences between JGS524v1 and JGS524v2 switches:







    To know more about the JGS524v1 switch, check its datasheet here.



    For more information about the JGS524v2 switch, check its datasheet here.





    Regards,


    DaneA

    NETGEAR Community Team

8 Replies

  • DaneA's avatar
    DaneA
    NETGEAR Employee Retired
    Oct 04, 2018

    Hi RedBullet,



    If you have the JGS524 switch model, it means that you have the JGS524v1 (v = version).



    Here below are the differences between JGS524v1 and JGS524v2 switches:







    To know more about the JGS524v1 switch, check its datasheet here.



    For more information about the JGS524v2 switch, check its datasheet here.





    Regards,


    DaneA

    NETGEAR Community Team

  • schumaku's avatar
    schumaku
    Guru - Experienced User
    Oct 04, 2018

    Checkt the product label model information:



    JGS524-100xxx (like JGS524-100EUS) == v1.



    JGS524-200xxx (like JGS524-200EUS) == v2.





    • RedBullet's avatar
      RedBullet
      Tutor
      Oct 04, 2018

      Thanks for the replies. I probably can't take advantage of jumbo frames. So, aside from that anyone think it would be worth upgrading to v2?



      Or perhaps a different unmanaged switch?



      Thanks, appreciate the feedback and opinions.

      • DaneA's avatar
        DaneA
        NETGEAR Employee Retired
        Oct 04, 2018

        RedBullet,



        For me, if ever your current JGS524 switch is not giving you any problems which means its still working fine, I suggest you to stick with it in order to avoid unnecessary cost.



        Let me share the link below where you can select the switch that matches your network requirements:



        NETGEAR Switch Selector





        Regards,


        DaneA

        NETGEAR Community Team
