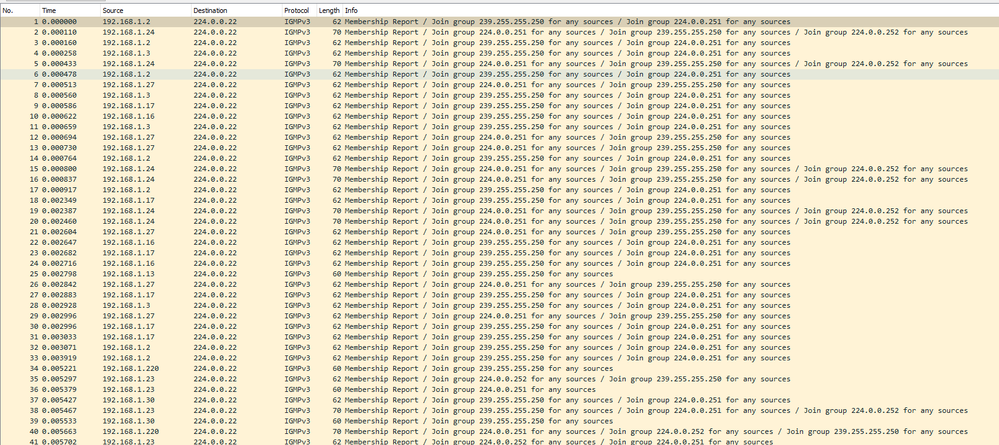

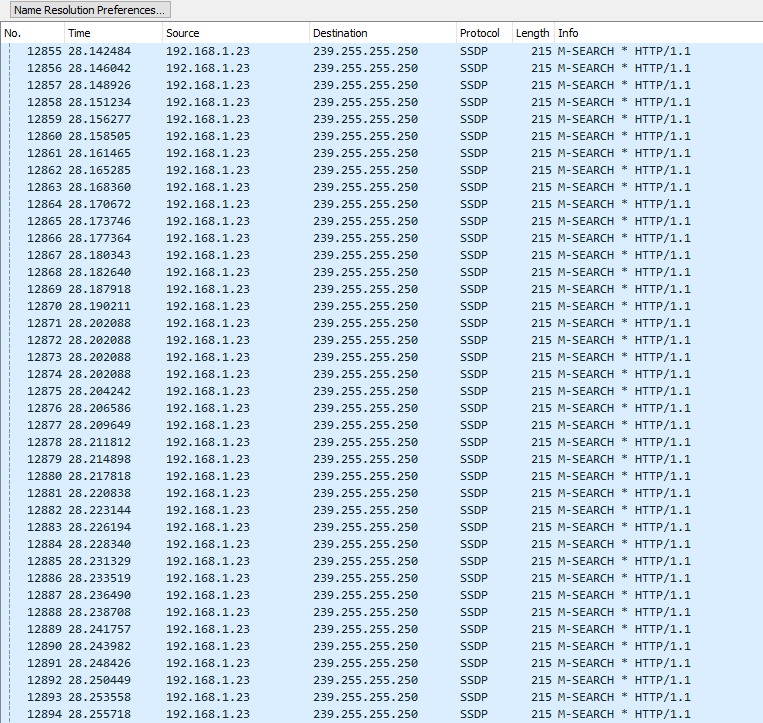

I have an MR60 router connected to the internet and 2 MS60 satelites connected with an ethernet (cat-6) backhaul. I bought this device at Costco - strange that the model number is not listed in the model list above. Every few days my network becomes unstable and I have traced the issue to a broadcast storm where is appears that packets are being circulated on the network continuously to the point that it is flooded and non-responsive. Here are a few snippets from a network sniffer I did a test and turned off one of the apparently broadcasting devices and minutes after the device was powered down, I was still seeing these packets continue to circulate. The noise stops as soon as I turn off the MS60 satelite. It appears that this device is rebroadcasting these packets. For now I have disconnected the ethernet backhaul and just let it use wi-fi but that greatly decreases the performance. Is this a known condition? What can I do to fix it?

I'm seeing the exact same thing. I've been using firmware 1.1.6.122_2.0.58 since sometime in December, and I've run into the loop issue twice. The first time, I used wireshark to trace down the offending device, and after turning it off, I still saw the packet storm. Only when I disconnected one of the ethernet backhaul cables connected to one of my MS60s did it stop. I'm suspecting that the satellite(s) are somehow enabling both the ethernet and the wifi backhaul and this is causing a loop. Is there any way to confirm/deny this? I wish Netgear would give us some more control make sure the wifi backhaul is disabled.

Netgear has set up a community forum specifically for the NightHawk MESH products. Most of the people who watch that forum are more likely to have experience with NH MESH products. Might be more likely to find someone who has a solution if the question is posted there:https://community.netgear.com/t5/Nighthawk-Mesh-System/bd-p/en-home-nighthawk-mesh-system Please use this link to the main forum product list to review and choose where to make your posts. https://community.netgear.com/t5/NETGEAR-Forum/ct-p/en-netgear Thank you.

What Firmware version is currently loaded?What is the Mfr and model# of the Internet Service Providers modem/ONT the NG router is connected too? How are the MS connected to the MR? Directly to the back of the MR or is there a LAN switch in between the MR and the MS? If there is a LAN switch, brand and model# please. What CAT# cables are you using? CAT6 is recommended. Check cables between the MR and MS. Is both MS doing this or only one? Swap MS locations with each other to see if problem follows.

I just want to chime in and say i'm experiencing the same issues.I just upgraded to 1.1.6.122 yesterday on all devices to see if that fixed the issue but it doesn't. I have one MR60 and two MS60 devices connected via cat6 ethernet cables to a Mikrotik RB5009 router (I also tried having them connected via an unmanaged switch with the same result). The netgear mesh system is configured to be running in Access Point mode (AP Mode).All 3 netgear devices are connected directly to the mikrotik router and I see loop detection warnings in the mikrotik logs.

If your ethernet connecting the MS, they need to be connected to the back of the MR, not in parallel at the host router. ISP Modem>Host router><>MR in AP mode<Unmanaged LAN switch<>MS connected to Lan Switch. https://kb.netgear.com/000061710/What-is-an-Ethernet-backhaul-connection-and-how-do-I-set-it-up-on-my-Nighthawk-Mesh-WiFi-6-products TheBoroer wrote: I just want to chime in and say i'm experiencing the same issues. I just upgraded to 1.1.6.122 yesterday on all devices to see if that fixed the issue but it doesn't. I have one MR60 and two MS60 devices connected via cat6 ethernet cables to a Mikrotik RB5009 router (I also tried having them connected via an unmanaged switch with the same result). The netgear mesh system is configured to be running in Access Point mode (AP Mode). All 3 netgear devices are connected directly to the mikrotik router and I see loop detection warnings in the mikrotik logs.

MR60/MS60 - Ethernet backhaul creates network loop

15 Replies

FURRYe38
Guru - Experienced User
Jan 21, 2022
Netgear has set up a community forum specifically for the NightHawk MESH products. Most of the people who watch that forum are more likely to have experience with NH MESH products. Might be more likely to find someone who has a solution if the question is posted there:
https://community.netgear.com/t5/Nighthawk-Mesh-System/bd-p/en-home-nighthawk-mesh-system

Please use this link to the main forum product list to review and choose where to make your posts.
https://community.netgear.com/t5/NETGEAR-Forum/ct-p/en-netgear

Thank you.
FURRYe38
Guru - Experienced User
Jan 21, 2022
What Firmware version is currently loaded?
What is the Mfr and model# of the Internet Service Providers modem/ONT the NG router is connected too?

How are the MS connected to the MR? Directly to the back of the MR or is there a LAN switch in between the MR and the MS?

If there is a LAN switch, brand and model# please.

What CAT# cables are you using? CAT6 is recommended.

Check cables between the MR and MS.

Is both MS doing this or only one?

Swap MS locations with each other to see if problem follows.
- TheBoroer
  Aspirant
  Jan 24, 2022
  I just want to chime in and say i'm experiencing the same issues.
  I just upgraded to 1.1.6.122 yesterday on all devices to see if that fixed the issue but it doesn't.

  I have one MR60 and two MS60 devices connected via cat6 ethernet cables to a Mikrotik RB5009 router (I also tried having them connected via an unmanaged switch with the same result). The netgear mesh system is configured to be running in Access Point mode (AP Mode).
  All 3 netgear devices are connected directly to the mikrotik router and I see loop detection warnings in the mikrotik logs.
  - FURRYe38
    Guru - Experienced User
    Jan 24, 2022
    If your ethernet connecting the MS, they need to be connected to the back of the MR, not in parallel at the host router.

    ISP Modem>Host router><>MR in AP mode<Unmanaged LAN switch<>MS connected to Lan Switch.

    https://kb.netgear.com/000061710/What-is-an-Ethernet-backhaul-connection-and-how-do-I-set-it-up-on-my-Nighthawk-Mesh-WiFi-6-products

    TheBoroer wrote:

    I just want to chime in and say i'm experiencing the same issues.

    I just upgraded to 1.1.6.122 yesterday on all devices to see if that fixed the issue but it doesn't.

    I have one MR60 and two MS60 devices connected via cat6 ethernet cables to a Mikrotik RB5009 router (I also tried having them connected via an unmanaged switch with the same result). The netgear mesh system is configured to be running in Access Point mode (AP Mode).

    All 3 netgear devices are connected directly to the mikrotik router and I see loop detection warnings in the mikrotik logs.
- cs47
  Tutor
  Feb 01, 2022
  Hardware Version MR60 Firmware Version V1.0.6.116_2.0.54

  This device is connected directly to the Verizion FIOS termination equipment - I returned the Version modem and router.

  Everything is CAT-6 cabling although one of them is long - 30FT to get from the garage where the MR60 is located to the satelites in the main house.
  There are 2 GS 108T switches in the network.

  FIOS <-> MR60 <-> GS108T <-- long cable --> GS108T <-> MS60

  At one point I remove the far switch and just connected the MS60 directly to the first switch but that didn't seem to make a difference.
  - FURRYe38
    Guru - Experienced User
    Feb 01, 2022
    What happens if you remove both switches and set the MS directly connected to the MR?

    cs47 wrote:
    Hardware Version MR60 Firmware Version V1.0.6.116_2.0.54

    This device is connected directly to the Verizion FIOS termination equipment - I returned the Version modem and router.

    Everything is CAT-6 cabling although one of them is long - 30FT to get from the garage where the MR60 is located to the satelites in the main house.

    There are 2 GS 108T switches in the network.

    FIOS <-> MR60 <-> GS108T <-- long cable --> GS108T <-> MS60

    At one point I remove the far switch and just connected the MS60 directly to the first switch but that didn't seem to make a difference.
nanuram
Aspirant
May 16, 2022
Netgear Cable Modem -> MR-60 (v.1.1.6.124) -> Netgear Switch GS108 -> MS60 (v.1.1.6.124) - (I've 4 MS60 )

When connected via CAT6 for ethernet backhaul, this causes severe wifi degradation and network loop/swarm to a point the wifi is inaccessible - this issue that cs4 reported in Jan this year! I get rid of the backhaul, and let the MS60 connect over wifi, things remain stable.
Spoiler
Netgear support - Here is a clear voice of your customer, for you! Everything in my network is Netgear, so no BS, please! Now can you fix this issue or not. I'm a fully committed paying customer that believes in Netgear, and need this corrected!
