Re: RBE971 reboots
I also have random reboots on 972, every 2-3 days. RBR971 is connected in AP mode to French provider Orange modem/router. 972 replaced 752 who never had same reboot issue during 2-3 years. Since I changed to 972 (with all firmwares since 9.2.3.3) every few days I have random reboot problem as some other people. NG support requested to switch the power adapters between R and S , but no impact. I also disabled logs, still random reboots. The LAN has 30-35 active devices but same topology was working without reboot with 752..
Waiting impatiently new firmware and hope a resolution of this. 5 minutes of disconnect during Teams meeting is really but really annoying …
Waiting impatiently new firmware and hope a resolution of this. 5 minutes of disconnect during Teams meeting is really but really annoying …
7 Replies
Replies have been turned off for this discussion
Does the front LED on the RBR turn PINK or blink WHITE when this happens?
What is the Mfr and model# of the Internet Service Providers modem/ONT the NG router is connected too?
Be sure your using a good quality LAN cable between the modem and router. CAT6A STP is recommended.How is the RBR configured for AP mode? Dynamic or Static IP address configuration?
I presume the connection between the ISP router to the RBRs Yellow Internet port while in AP mode?
Is Guest Network enabled on the RBR?
Does the WAN status seen on the Show Stats button for Uptime show same value as the RBRs IP address/debug.htm web page for system uptime as well or do they differ?
What is the size of your home? Sq Ft?
What is the distance between the router 📡 and satellite(s)🛰️? 30 feet or more is recommended in between RBR 📡 and RBS 🛰️ to begin with depending upon building materials when wired or wirelessly connected.
https://kb.netgear.com/31029/Where-should-I-place-my-Orbi-satellite 🛰Be sure to disable any MAC Address randomizers on phones and pads while at home:
https://community.netgear.com/t5/Orbi-App/NETGEAR-Mobile-Applications-and-Apple-Devices-FAQ/td-p/2220016/jump-to/first-unread-messageHow many devices in total do you have connected all at once?
Has a factory reset and setup from scratch been performed since last FW update?
My network topology is :
- Router : Orange France Livebox 7
- Orbi 971R is configured in AP mode with Static LAN IP : 192.168.1.2 provided by the router Orange France Livebox
- ORbi 971R is connected to router Orange with CAT6 or 7 cable.
- 1x Orbi 970S with wireless backhaul and has static IP 192.168.1.3
- FW of both Orbi 971R and 970S is the lates PRD releas 9.12.5.3
- The LAN topology is +/- 40 devices with +/- 10 on 2.4 GHz, +/-25 on 5 GHz and on 3-4 on 6 GHz .(i.e. iPhone 15 Pro Max + 2-3 PCs)
- Guest Network Enabled or Disabled : Both cases tested and random reboots occurs on both
- IoT network is disabled
- Home is around 90 m2 with 1 R and1 satellite. The distance between R + S is around 10 - 12 m with 1 wall.
- IP randomizers of ALL connected devices are disabled.
When the Orbi RBE971 randomly restarts it is blinking white 3-4 minutes. And the unique satellite 970S is pink as it lost the connection with 971R.
When RBE971R is up again, the satellite takes +/-5 more minutes to became blue (from pink) and initially it is connected with 2.4Ghz wireless backhaul. After +/- 10 more minutes it reconnects to the 971R with 5GHz and 6 GHz backhaul.
Everything works fine until next random reboots.
NG Support already requested to switch the power adapters between Router and Satellite, change the power source on the wall and reset/reconfigure the router. Non of those actions did resolve the problem.
Today they called again following to this topic and they requested to capture logs.
Saner wrote:
My network topology is :
- Router : Orange France Livebox 7
- Orbi 971R is configured in AP mode with Static LAN IP : 192.168.1.2 provided by the router Orange France Livebox> Is the static IP address Set on the RBR for AP mode? What is the IP address subnet used on the Livebox 7? Does it use 192.168.1.1? And what is the Default IP address pool size of the Livebox 7? 192.168.1.2 thru .254?
- ORbi 971R is connected to router Orange with CAT6 or 7 cable. > CAT6A STP is recommended.
- 1x Orbi 970S with wireless backhaul and has static IP 192.168.1.3 > How is the RBS ethernet connected to the RBR? Directly behind the RBR or is there a LAN switch in between?
- FW of both Orbi 971R and 970S is the lates PRD releas 9.12.5.3
- The LAN topology is +/- 40 devices with +/- 10 on 2.4 GHz, +/-25 on 5 GHz and on 3-4 on 6 GHz .(i.e. iPhone 15 Pro Max + 2-3 PCs)
- Guest Network Enabled or Disabled : Both cases tested and random reboots occurs on both
- IoT network is disabled
- Home is around 90 m2 with 1 R and1 satellite. The distance between R + S is around 10 - 12 m with 1 wall. > Does this still happen with the RBS turned OFF?
- IP randomizers of ALL connected devices are disabled.
Is the static IP address Set on the RBR for AP mode? What is the IP address subnet used on the Livebox 7? Does it use 192.168.1.1? And what is the Default IP address pool size of the Livebox 7? 192.168.1.2 thru .254?
==> Static IP is configured only in the Orange Livebox's DHCP config.
MAC of RBR leased to 192.168.1.2 and MAC of RBS leased to 192.168.1.3
DHCP pool of router Livebox is from 192.168.1.2 to 192.168.1.253
How is the RBS ethernet connected to the RBR? Directly behind the RBR or is there a LAN switch in between?
==> RBS is not ethernet/cable connected. It is wireless backhaul between RBR and RBS. There is NOT any LAN switch at home. Orange LiveBox has 5 LAN port where only 1 is 10 GBit. This port connected to RBR. All devices at home are through WiFi. Ethermnet ports of Livebox + RBR + RBS are NOT used.
Does this still happen with the RBS turned OFF?
==> Never tried with RBR only mode. I need to use RBS to connect PCs at my home office room which is in the same room with RBS. Without RBS, the WiFi coverage is very low./quite unusable.

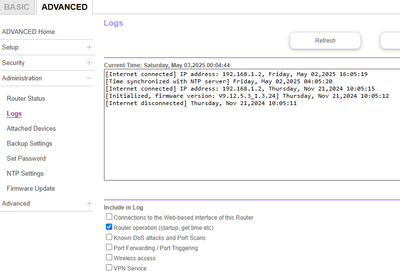

Below the basic logs, mostly disabled
