I first purchased the CAX30 over a year ago and still have yet to find a solid fix for the problem
I've been having the same issue since I first purchased the CAX30 over a year ago and still have yet to find a solid fix for the problem. The only recommendation I can give is to manually set a preferred IP address on each device. Even then the problem may not completely go away for you, but that's what I ended up doing and the wireless connection drops are much less frequent for me than they were when the router DHCP was set to dynamically assign the addresses. DO NOT reserve the IP addresses to each device in the router config, only set your IP's manually from the devices themselves. It's a known issue that adding IP addresses to the router's reservation pool will make network connection drops way worse.
It would be great if Netgear decided to roll out some firmware updates for these CAX modem-routers, but they seem to have all but abandon providing any support for these devices.
10 Replies
Please post a copy and paste of the modems connection status page.
Have the ISP check the signal and line quality UP to the modem. Be sure the ISP provisions the modem correctly.
Be sure there are no coax cable line splitters in the between the modem and ISP service box.
Be sure your using good quality RG6 coax cable up to the modem.
Be sure to power OFF the modem for 1 minute then back ON.
https://community.netgear.com/t5/Cable-Modems-Routers/General-info-and-Troubleshooting-for-Cable-Modems/m-p/1530376#M12853
https://kb.netgear.com/24311/Power-level-guidelines-for-a-NETGEAR-cable-modem-router?article=24311
https://www.duckware.com/tech/solving-intermittent-cable-modem-issues.htmlWhat channels are you using? Auto? Try Auto and 48 on 5Ghz. Or try setting manual channel 1, 6 or 11 on 2.4Ghz and 40 to 48 channel on 5Ghz.
Any Wifi Neighbors near by? If so, how many?Have you tried seeing the default IP address pool to 192.168.1.100 to .200?
Static IP addresses should be set outside a default IP address pool, not inside it per standard networking methods.
I have attached multiple screenshots to provide references to the information you requested from me, with the exception of the CAX30 wireless settings information page. Modem connection status all appears normal. I already have the router DHCP address pool set at 192.168.1.100 - 192.168.1.150 (I reduced the IP address pool to end at .150 instead of .200 because I found 100 IP addresses an unnecessarily large amount for our needs). Regarding the wireless settings, the 2.4G channel is set to Auto, although I actually have the 2.4 wireless radio disabled due to interference and signal drops it was causing with my Xbox headset's USB wireless transmitter that also operates on the 2.4Ghz band. My 5Ghz channel is set to 161, at the recommendation of a Netgear support agent I had spoken to a few months ago when I first experienced these wireless connectivity issues. To answer your question about WiFi neighbors.. I live in an apartment complex with many neighboring WiFi signals in my building, as you can clearly see in the very last screenshot taken from the Nighthawk mobile app on my phone. Hopefully all this info helps and feel free to let me know if there's anything else I can provide that could help with this troubleshooting. Thanks for your help!

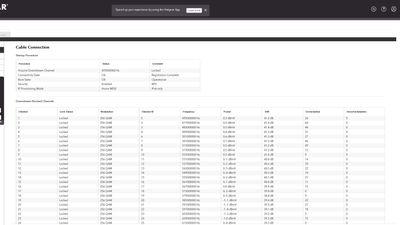

Modem Page 1
Modem Page 2

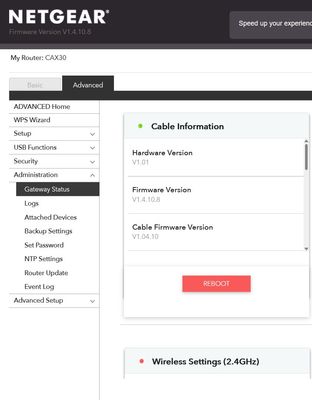

CAX30 Device Information

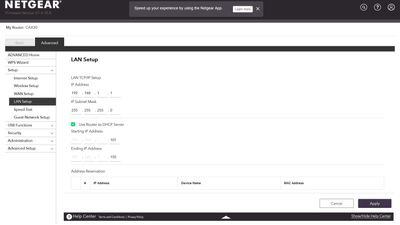

LAN Page / Router DHCP

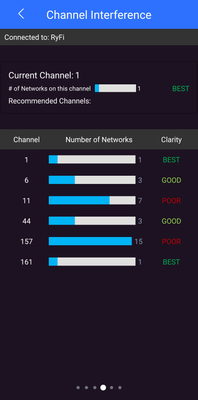

Neighboring WiFi Channel Statistics
SO your getting some correctables. Means the modem is taking care of data ok. Usually those would be all zeros. Something you might look into with the ISP. Sometimes those can be solved by checking cabling, connections and no splitters on the line.
If you live in a apt complex, reduce the transmit power on both radios from 100% to try 50% first...maybe 25% if your in a small sized apt area. This will help with interferences from neighboring wifi signals.
Much can be done with wireless head phones that work on same frequency. I ran in to this on xbox360 years ago. Went wired and never looked back.
I'll try lowering the transmit power on my 5Ghz network, but I'll just keep the 2.4Ghz radio completely off since we never used that band to begin with. Do you think changing channel 161 on my 5Ghz band to a lower number would improve the disconnection issues at all? I used to have it set to 48 before Netgear suggested 161, but the issue still persists and I'm hesitant to try going back due to channel interference in my apartment building.
Once the power is lowered on the 5Ghz radio you can use any channel on 5Ghz.
