VPN Issues - Double NAT - AC1600 C6250 Router

Question

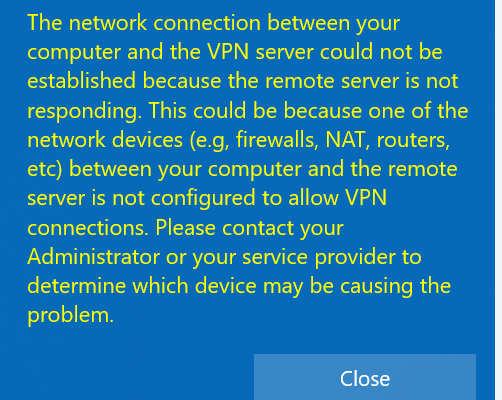

I have been unable to connect to my company's VPN for approximately three weeks while using the same router and devices for months. I performed a factory reset to my Netgear AC1600 router/modem with no effect. I spoke with my service provider Comcast and inquired if they were using a commercial NAT. They informed me that everything on their end looked perfect and this was a router issue and to work with Netgear to fix the issue. I have been receiving the following error on multiple devices including Surface Pro and Dell Latitude 7490 running on WIndowns 10 Pro:

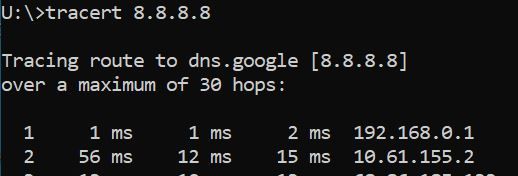

I have ran a traceroute and have identified a double nat per the first two hops:

I am not using any gateway or additional networking hubs or routers within my house, so this is truly a single router/modem combo with a double nat. Please see my LAN / TCP configuration below:

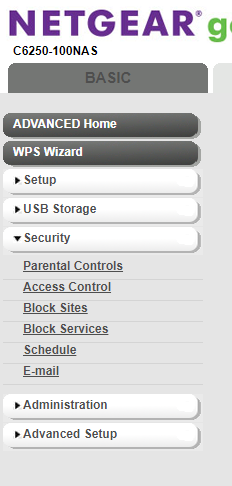

My NETGEAR genie GUI does not have firewall settings.

plemans · Answer

have you tried using a different dns provider?&nbsp;
Like googles at 8.8.8.8 or 8.8.4.4&nbsp;
Or cloudfare at 1.1.1.1?
&nbsp;
the double nat (192....10.) issue is a bit more complex. You're already using a modem/router combo device. there shouldn't be a double nat issue unless the carrier or location you're connecting to has their own hub/router setup. I know you said you checked and they don't but it could be that you're talking to level 1 support for most isp's and they're not the most knowledgeable.&nbsp;
Again, the the dmz set, the C6250 is going to be forwarding all traffic, so it'd be whatever is connecting at the 10 address.&nbsp;
You could always try connecting to its ip add see if you can identify it.&nbsp;

plemans · Answer

I have talked to your company's vpn provider?&nbsp;
Maybe they require specific port forwarding.&nbsp;
&nbsp;

CharlesK25 · Answer

Thanks for the reply. I am able to access the vpn on other networks including my verizon hotspot. All settings are accurate to connect to the VPN on the devices. I have partnered with our IT department and they are saying the issue is specific to my router and the double nat issue.

plemans · Answer

try setting the device you're using in netgear's dmz.&nbsp;
https://kb.netgear.com/1118/How-do-I-configure-a-device-to-be-in-the-DMZ-on-my-NETGEAR-router

CharlesK25 · Answer

Would this create a security issue as the device would essentially have limited firewall protection?&nbsp;&nbsp;Also, I went into WAN Settings and set the DMZ to the ip address my Dell Latitude was on and still unable to connect to the VPN with same error message.
