Failed Drive Replaced, Recync Complete, But Volume Is Still Degraded

My RN312 has been working fine for many years.  Just recently, one of the 4TB WD Black drives indicated a failure.  I removed the failed drive and replaced it with a newer 4TB WD Black drive with the same specs.

Disk: Disk Model:WDC WD4003FZEX-00Z4SA0 Serial:WD-WCC130839778 was removed from Channel 2 of the head unit.

Disk: Disk Model:WDC WD4003FZEX-00Z4SA0 Serial:WD-WCC5D1NFAZE8 was added to Channel 2 of the head unit.



After the new drive appeared in the console, I was able to wipe it, then start the resync process:

Volume: Resyncing started for Volume data.

After about 9 hours, I got these messages in the log:

Volume: Volume data is Degraded.

Volume: The resync operation finished on volume data. However, the volume is still degraded.

Disk: Disk in channel 2 (Internal) changed state from RESYNC to ONLINE.



I decided to reboot the system to see if that would clean up whatever went wrong.  It immediately started resyncing again:

System: The system is rebooting.

Volume: Resyncing started for Volume data.

System: Alert message failed to send.

Volume: Volume data is Degraded.

System: ReadyNASOS background service started.



Then, about 11 hours later, I got this:

Volume: The resync operation finished on volume data. However, the volume is still degraded.

Disk: Disk in channel 2 (Internal) changed state from RESYNC to ONLINE.

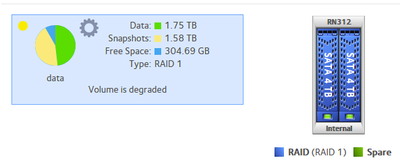

At this time, the console (and log messages) show that the volume is still degraded, after two resync attempts, although both drives show ONLINE.

Suggestions?

  • StephenB's avatar
    StephenB
    May 07, 2024

    BtrieveBill wrote:

     I hesitate to do that because I'm not sure where the RN312 keeps its brain.


    Everything is on the disks - config files are stored in the OS partition, any apps are installed to a hidden folder on the data volume.




    BtrieveBill wrote:

    The SMART data shows that the last failure on that drive was in 2022, but that it is showing 53 pending sectors




    Personally I would have replaced that disk.  Generally I consider replacement when the bad sectors move into the 20s.




    BtrieveBill wrote:

     I copied all of the data off of the volume to my new Synology NAS, so I have no fear of losing anything.




    Good.



    One option is to save the config files, do a clean install on new disks, and then restore the config. Personally I'd use Seagate Ironwolf or WD Red Plus.  If you use desktop class drives, make sure they are not SMR. Most desktop drives in the 2-6 TB range are now SMR.



    A second option is to try cloning the disk to a replacement drive. Then power up the NAS with that drive installed.  Delete all the files and snapshots, and restore the files from the Synology.  After that hot-insert a second drive (ideally new) and wait for it to sync. That would preserve your configuration and the OS partition (assuming they are not damaged).



11 Replies

Replies have been turned off for this discussion
  • Sandshark's avatar
    Sandshark
    Sensei - Experienced User

    Sounds like your new drive is bad.  Best thing to do it attach it to a PC (via SATA or a USB to SATA adapter) and test it with vendor tools.



    If it tests good, then test the old one, too.  If it also tests good, the problem is in the NAS.

    • BtrieveBill's avatar
      BtrieveBill
      Aspirant

      Thanks for the speedy reply.  The drive had come out of a working RN516 that was upgraded from 4TB drives to 6TB drives, and it had no issues in the RN516, which is why I saved it.  I have dropped in another one of the drives, blanked it, and have started another re-sync.  I will advise as to how that goes!



      Luckily, this box is used mainly for backups of other data that is on my RN516 and my newer Synology, and the Synology has space to hold a complete backup of the RN312.  So, in the worst case, I could wipe both drives and simply restore everything, but it would be nice if it worked as advertised.

      • BtrieveBill's avatar
        BtrieveBill
        Aspirant

        FYI -- I had no problems formatting the drive on a computer.  The second 4TB drive (also removed from the RN516 when upgraded) was blanked, formatted, and added to the array, but it resulted in the exact same result -- the resync completed and the drive was marked ONLINE, but the volume still shows as degraded.  Additional suggestions?
