Forum Discussion
Solved
readynasduo RND2000 V2
Hi my readynasduo has two 1 x TB hdd fitted and was working perfectly. I had a sudden power outage and now it will not start up. It just has a flashing blue light.
I tried the factory reset by pushing and holding the reset button while powering on. Now the blue light flashes much slower and one of the two green LED's is on (the other is not on).
What to do?
corkscrew22 wrote:
I do have a UPS which as a power strip connected to it, which in turn I connect my sensitive network equipment to the NAS being one of them, I guess because the NAS shares the UPS i cannot take advantage of the NAS ups feature.
If the UPS has a usb connector, you can connect it to the NAS usb port, and see if it is detected. The NAS isn't controlling the UPS, instead it is monitoring it, and choosing when it should shut itself down. So it will not interfere with your other equipment being protected by it.
11 Replies
Replies have been turned off for this discussion
Let's start by determining if you really have a Duo V2, because AFAIK, all the LEDs on a V2 are blue. Does it say "Duo V2" on the front panel? If it does not, regardless of what may be on one of the stickers on the unit, it's a V1.
It sounds like you are in the boot menu and it's waiting for you to make a selection via the backup button. But you need to be sure which unit type you have, because the instructions are a bit different for each.
Also, install RAIDar on a PC/Mac and find out what status it's reporting. Then power off, remove the drives (marking them so they go back in the right places) and try again. Come back with those results and we can try and help you interpret them.
Hi
first some info I forgot to put in first post.
- The unit will not power down with the power button I have to pull the cord.
- I am running Linux mint and access the NAS using NFS and web interface.
- At the time of first post no network access at all
To answer your question re model there is no ID on the front only a large sticker on the bottom stating its a readynasduo RND2000 V2.
I have managed to succesfully perfom factory reset now this time i let go of the buttons immediatley afterthe second set of 2 green lights blinking.
so the sequence was
- after reset 2 green lights after 8 secs, then 2 green lights after 28 secs.
- followed by slow blinking blue light with rapid flashing of disk activity light. After 15mins or so the blue light went solid.
- Then with rapid flashing of disk activity light still going hdd 1 light went solid green, hdd 2 light rapid green flashing
- after about 1 hour the lights all went to normal i was able to shut it down and restart normally again.
So now I have a few questions remaining
- How can I tell conclusvely what model this is? I have searched through all the web interface pages system info etc but can find nothing. The firmware version is Radiator 4.1.14 does this tell us?
- Do you have any idea what might of gone wrong with the power outage ? obviousley I have lost acces to my data (although I see the disk space is still used) but the shares I set up have gone
Regards
corkscrew22 wrote:To answer your question re model there is no ID on the front

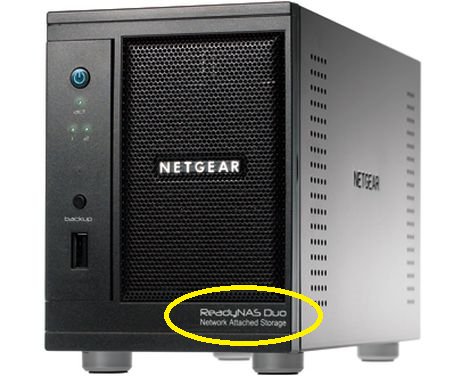

There is. Sandshark is talking about this:
The circled part says "ReadyNAS Duo" on the original v1, but it says "ReadyNAS Duo v2" on the v2 model. However, we can also tell from the firmware - The v1 runs 4.1.x, and the v2 runs 5.3.x. So you have the original Duo (called a v1 here). The "v2" label on the back means it is "hardware revision v2 of the Duo v1". Very confusing branding on Netgear's part, and I'm sure support has been very unhappy about that for a very long time.
BTW, the firmware isn't the final release, that was 4.1.16.
corkscrew22 wrote: Do you have any idea what might of gone wrong with the power outage ? obviousley I have lost acces to my data (although I see the disk space is still used) but the shares I set up have goneGenerally speaking, the problem is caused by lost writes (which were cached, but never written to the disk). That can lead to a corrupted volume that can't be mounted. I always recommend connecting a UPS to the NAS to prevent this - the UPS ensures that the NAS can shut down cleanly when the power fails. FWIW, I once lost a volume on my own Duo due to an unexpected power loss. That triggered my investment in UPS.
I think there was a good chance we could have recovered the data if you hadn't done the reset, but it's hard to say for sure. RAID Recovery software (perhaps R-linux for Windows) might still be able to find it. But if you want to try that, then power down the NAS, as the more disk writes that happen, the more unlikely recovery is.
If you did a factory default (and it sounds like you did), then the disk space isn't used, and the data is gone. The disks are formatted as part of the process. There is some space usage that shows up in Frontview, but that isn't real - it's reserved by the NAS. If I recall correctly, it will show about 20 GB of used space after setup completes. Your setup screen is showing 0% used.
That is a Duo V1. Netgear originally used a "v1" or "v2" on the stickers to indicate minor board version differences on the Duo and NV+. They then created an entirely different line and re-used the "V2" designation -- creating a lot of confusion. The "real" V2 hardware and OS are entirely different from the V1, and they are in no way interchangeable.

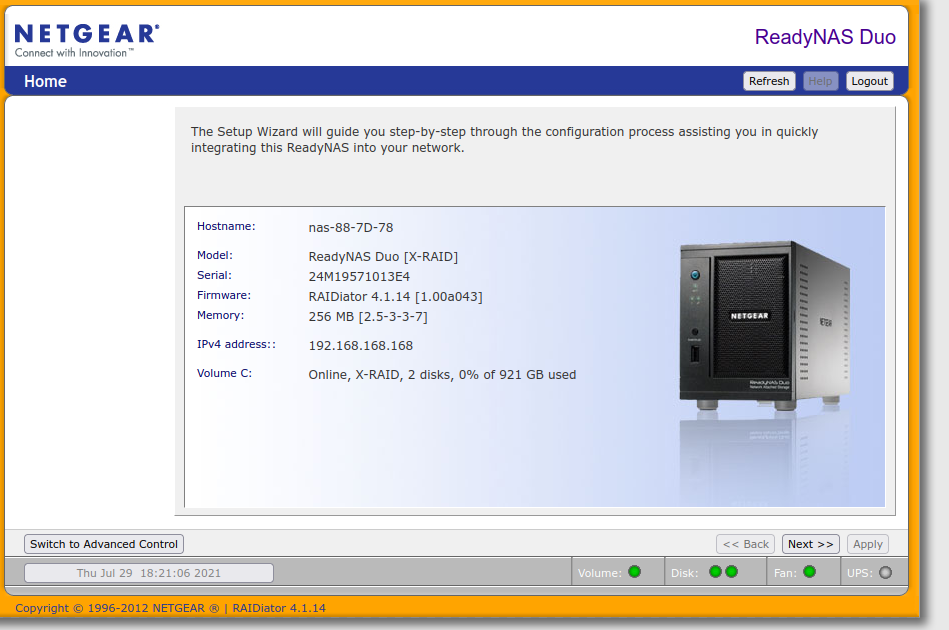

So, you have likely been following the wrong instructions for using your NAS. But the screen grab you posted is of what appears to be a completely healthy Duo V1 with a volume just created. Did you re-install the firmware (which retains the volume), or do a factory reset (which wipes the drives)?
