LACP no longer working on RN516 running 6.7.5
LACP bonding no longer seems to work with my RN516 on 6.7.5, the switch shows only one interface up, as if the teaming is Active Backup, not LACP. The MTU keeps resetting to 1500 from 9000, as if th...
Hello Tonkinite,
Upon checking the logs I cannot find anything relevant that may cause this behavior of the NAS. Have you tried removing the bond and then re-creating it after the firmware upgrade? You can also try to remove the bond then observe each ethernet port connection if it will be stable or not.
Regards,
Marty_M
NETGEAR Community Team
Hello Tonkinite,
Have you tried removing the bond and connect the NAS just via ethernet and observe if the connection is stable?
Regards,
Marty_M
NETGEAR Community Team
Yes, tried this morning.
Unbonded, unit works with both links, either separately or with both plugged in. Nothing wrong with the hardware.
Has anyone tested this issue there? At this point, it appears to be a bug, possibly dating back to the early 6.7.x releases.
Hello Tonkinite,
What hashing is set on the bonding/teaming? Please try setting different hashing type and check if it will make any difference? Please provide details on how do you test the disconnection problem? For isolation have you tried connecting the NAS to different port on the switch? The LACP setup, is the NAS set on static IP address or it is getting it via DHCP?
Regards,
Marty_M
NETGEAR Community TeamL2 hashing is being used, and the ports on the switch the unit is normally connected to are LAG'd in LACP mode as L2 hashing is the only possibility on the XS series switches at the present time, would appreciate if you would speak to the team in charge of the XS series firmware on behalf of the ReadyNAS community. If I were to change the hashing mode, the LAG'd ports on the switch would simply not see either connection as active, you can look at the thread I opened on Community a while back regarding this.
As to connecting to non LAG'd ports on the switch, the switch then shows both connections as active, but per DaneA, this setup is not optimal, I'm guessing that means failover would work properly, but suspect both connections would not be used simultaneously.
Additionally, the interfaces on the RN unit have fixed DHCP IP assignments (I typically setup all my RN units this way).

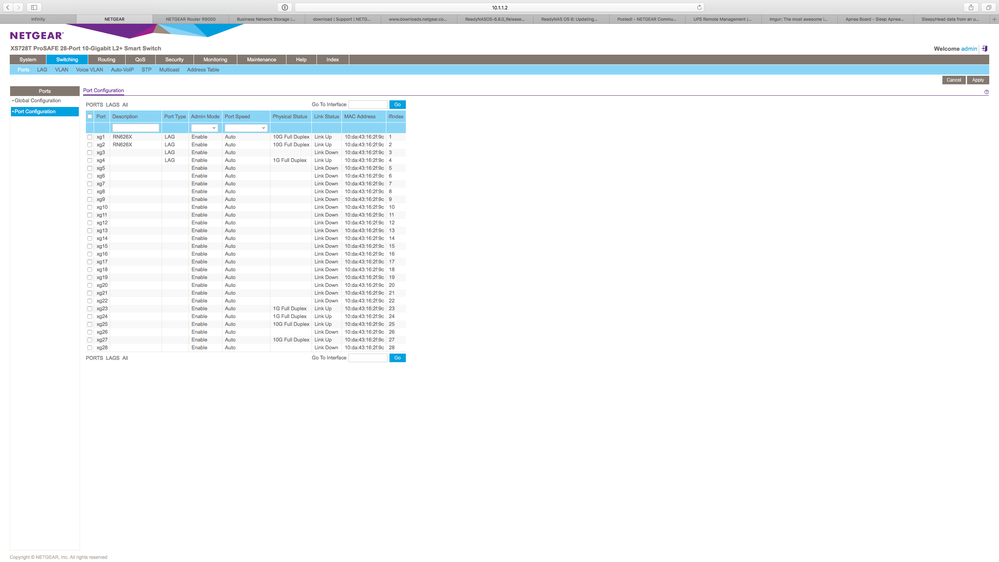

As to the status of the lines, I am trusting the XS switch UI panel not to lie, it says only one line is active, varying from one port to the other over time when I reboot the switch or whatever. This is not the case with the other, more recent unit, the RN626X, where the lines are LAG'd identically and both lines are always shown as active. A screenshot follows (the RN626X is connected on 1&2, the RN516 is connected on 3&4):
Switch port status, XS728T
Hello Tonkinite,
It does appear that both links wont go up at the same time. As per the type hashing for the switch it will depend on the type of switch if it is a layer 2 or layer 3. XS728T switch is only a layer 2 by default it only has layer 2 hashing. We can perform an OS re-install on the RN516 which will reset the network setting of the NAS and see if it will help with the address concern, for guide on how to perform OS re-install please go here and make sure to follow the guide carefully. Also for further isolation, if possible to connect the NAS to just a gigabit switch set the LAG and bonding/teaming then observe the connection.
Regards,
Marty_M
NETGEAR Community Team
